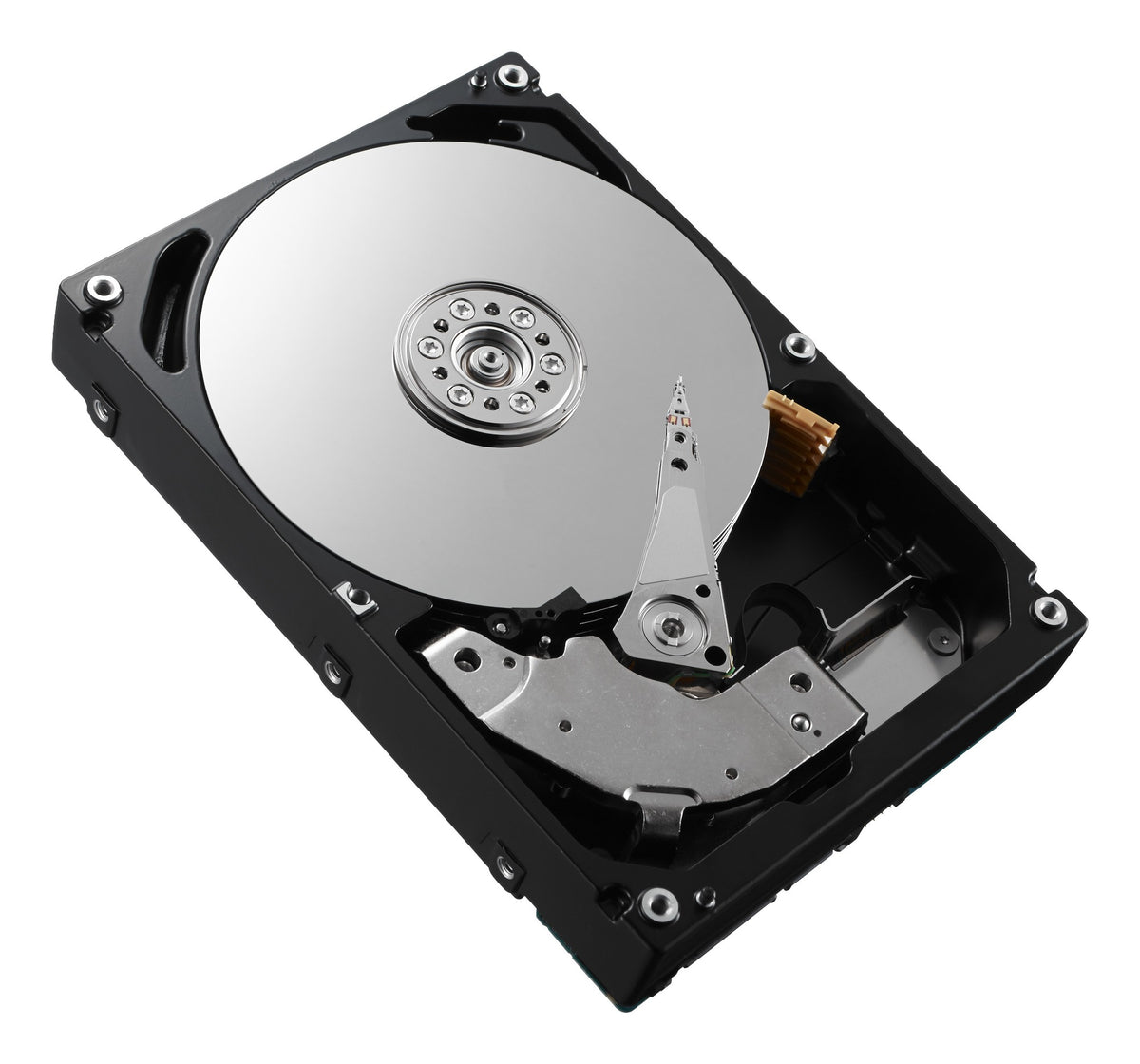

Cisco UCS-HDM14TW1S74K | UCS 14TB 3.5in 12G SAS 7.2K Hard Drive, Mid Plane, WD

UCS-HDM14TW1S74K

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco UCS 14TB hard drive is a 3.5-inch large form factor (LFF) SAS drive built for bulk, high-capacity internal storage in Cisco UCS rack servers, such as the UCS C240 M8 LFF. It is a Western Digital drive supplied as a hot-pluggable, sled-mounted mid-plane unit.

The drive offers 14TB of capacity, a 12Gb/s SAS interface and a 7200 RPM spindle speed, with a 4K native sector format. These figures make it a nearline storage option for capacity-focused deployments where density per drive bay matters more than raw random performance.

This is the mid-plane variant. It is listed among the hot-pluggable sled-mounted midplane drives for the UCS C240 M8 LFF and needs the UCSC-MPKIT-240M8L midplane kit in the host server. Mid-plane drives cannot be installed where a double-wide GPU or a GPU air baffle is selected, so check the server configuration before specifying them.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-pluggable sled-mounted midplane drive design
- 12Gb/s SAS interface for enterprise server storage
- 4K native sector format
- High-capacity 14TB nearline storage at 7200 RPM
- Suited to Cisco UCS C240 M8 LFF rack servers
- Western Digital drive in the Cisco UCS drive range

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 14 TB
- Drive type: SAS
- Form factor: 3.5in Large Form Factor (LFF)
- Interface speed: 12Gb/s SAS
- Rotational speed: 7200 RPM
- Sector format: 4K native
- Mounting: Hot-pluggable sled-mounted midplane drive
- Drive vendor: Western Digital (WD)
- Cisco PID: UCS-HDM14TW1S74K
- Cisco PID description: 14TB 3.5in 12G SAS 7.2K RPM 4K Mid Plane WD HDD

FAQs

Q: Which Cisco servers is this drive listed for?
A: It is listed among the available hot-pluggable sled-mounted midplane drives for the Cisco UCS C240 M8 LFF rack server.

Q: What else is needed to use a mid-plane drive?
A: A midplane kit, PID UCSC-MPKIT-240M8L, is required in the host server.

Q: Are there any server configurations where it cannot be used?
A: Mid-plane drives cannot be installed if a double-wide GPU or a GPU air baffle is selected in the server.

Q: What does the mid-plane designation in the SKU mean?
A: It identifies the sled-mounted midplane form of the drive, which differs from front-loading drive variants. This SKU is the 14TB Western Digital mid-plane version.

Q: What sector format does this drive use?
A: It uses a 4K native sector format, so confirm that your operating system and RAID controller support 4Kn drives.
