Cisco

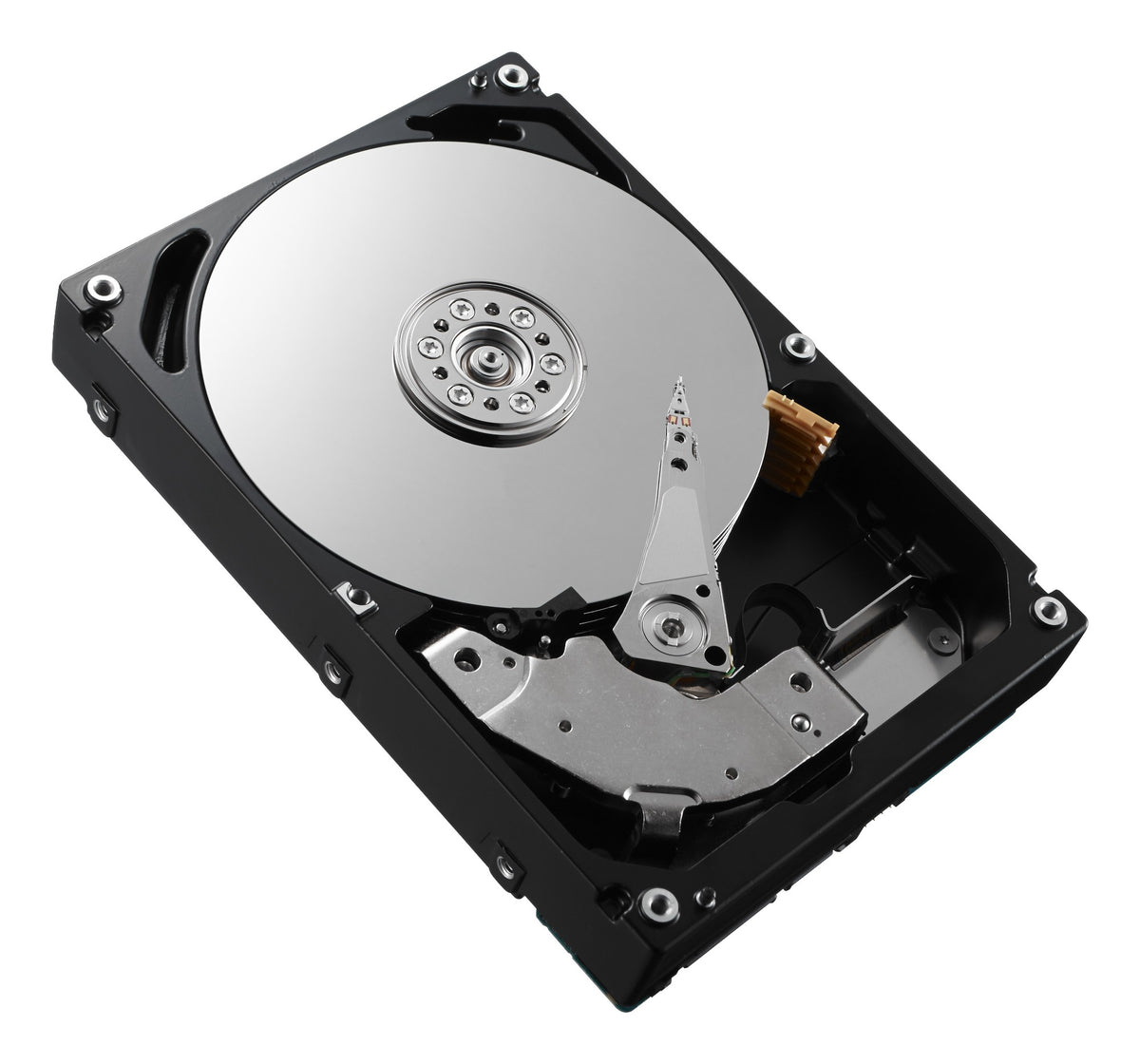

Cisco UCS-HDL14TW1S74K | UCS 14TB 12G SAS 7.2K 3.5in LFF Hard Drive, 4K, WD

UCS-HDL14TW1S74K

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 14TB 3.5-inch large form factor SAS hard drive is part of the Cisco UCS C-Series rack server drive portfolio. It is a Western Digital sourced, front-load, hot-pluggable drive that ships mounted in a server sled, built for capacity-oriented workloads such as bulk storage, backup and archive.

The drive runs a 12Gb/s SAS interface at 7.2K RPM and uses a 4K sector size. As a front-load variant it is listed as an orderable front-facing drive for the Cisco UCS C240 M8 LFF rack server, where it is driven by the Cisco 24G Tri-Mode M1 RAID controller or the 24G Tri-Mode M1 HBA, which support up to 16 LFF SAS hard drives.

All RAID options require drives of the same sector size and media type, so match this 4K sector WD drive with like drives in an array. A separate mid-plane variant exists under a different part number, so confirm the mounting position before ordering.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-pluggable sled-mounted 3.5-inch LFF drive for Cisco UCS C-Series rack servers
- 12Gb/s SAS interface with 4K sector format
- High 14TB capacity for bulk storage, backup and archive workloads
- Supported with the Cisco 24G Tri-Mode M1 RAID controller and M1 HBA in the UCS C240 M8 LFF
- Managed through Cisco UCS management tools (CIMC, UCSM and Intersight)
- Front-load variant for front-facing drive bays

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 14 TB
- Drive type: SAS
- Interface speed: 12Gb/s SAS
- Rotational speed: 7.2K RPM
- Form factor: 3.5-inch large form factor (front-loading)
- Sector size: 4K
- Media vendor: Western Digital (WD)
- Hot-pluggable: Yes
- Mounting: Mounted in a server sled
- Product description: 14TB 3.5in 12G SAS 7.2K RPM 4K WD HDD

FAQs

Q: Which server is this drive listed for?
A: It is listed as an orderable front-facing drive for the Cisco UCS C240 M8 Rack Server in the LFF configuration. For other UCS server generations, confirm support in the relevant Cisco server spec sheet.

Q: Which controllers does it work with in the C240 M8?
A: In the C240 M8 it is driven by the Cisco 24G Tri-Mode M1 RAID controller (UCSC-RAIDMP1LL32) or the 24G Tri-Mode M1 HBA (UCSC-HBAMP1LL32), which support up to 16 LFF SAS hard drives.

Q: Can I mix it with drives of a different sector size in a RAID array?
A: No. Cisco notes that all RAID options require drives of the same sector size and media type, so pair this 4K sector drive with other 4K sector drives.

Q: Is this the front-load or mid-plane version?
A: This is the front-load 3.5-inch LFF version. A separate mid-plane variant exists under part number UCS-HDM14TW1S74K.

Q: Does it need a separate power supply?
A: No. The drive is powered from the server drive backplane and is hot-pluggable in its sled.
