Cisco

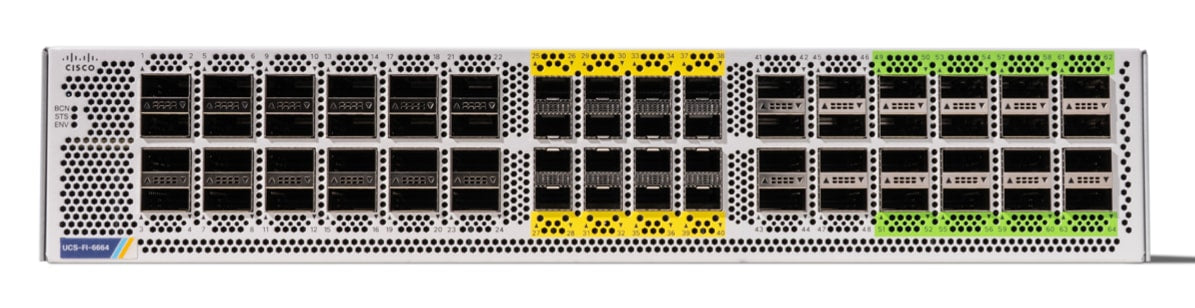

Cisco UCS-FI-6664-U | UCS 6664 64-Port 100G Fabric Interconnect, 64G FC

UCS-FI-6664-U

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS 6664 is a 2RU top-of-rack fabric interconnect from the Cisco UCS 6600 Series. It forms the network and management backbone of a UCS domain, connecting UCS X-Series, B-Series and C-Series servers over a single unified fabric. It suits data centres moving to 100GbE Ethernet and 64G Fibre Channel.

The 6664 provides 64 fixed ports and up to 11.648 Tbps of throughput. Ports 1-24 and 41-64 are 40/100GbE QSFP28, giving 48 ports in total. Ports 25-40 are 16 unified ports that run either 10/25/50GbE on SFP or 16/32/64G Fibre Channel. Supported speeds cover 10/25/40/50/100GbE, FCoE and 16/32/64G FC. It has 4 cores, 32 GB of system memory, a dedicated management port and L1/L2 ports for pairing two fabric interconnects for high availability. This UCS-FI-6664-U SKU is for UCS Manager and Intersight Managed Mode and is the base unit without power supplies. It is powered by up to two UCS-PSU-6600-AC 1400W AC supplies, with typical draw of 605W.

It works with the UCS X9508 and UCS 5108 chassis, UCSX-9108-25G and UCSX-9108-100G intelligent fabric modules, the IOM 2408, and UCS VIC 1400, 14000 and 15000 Series adapters. C-Series servers can be direct-connected or attached through a Nexus N9K-C93180YC-FX3 in FEX mode.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cut-through architecture with deterministic, low-latency, line-rate 10/25/40/50/100GbE
- Lossless Ethernet fabric with Priority-based Flow Control (PFC)
- Unified fabric carries Fibre Channel and Ethernet traffic concurrently, reducing NICs, HBAs, cables and switches
- 1600Gbps bandwidth per X9508 chassis with X9108-IFM-100G, and 200G aggregate bandwidth per X210c/X410c compute node
- Redundant hot-swappable fans and power supplies
- L1/L2 ports for high-availability pairing of two fabric interconnects
- Out-of-band management via a dedicated 10/100/1000 Mbps port, plus in-band management
- Single highly available management domain via Cisco UCS Manager or Intersight

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2RU
- Fixed ports: 64
- 40/100GbE QSFP28 ports: 48 (ports 1-24 and 41-64)
- Unified ports: 16 (ports 25-40), 10/25/50GbE SFP or 16/32/64G Fibre Channel
- Supported speeds: 10/25/40/50/100GbE, FCoE and 16/32/64G FC
- Throughput: 11.648 Tbps
- CPU: 4 cores
- System memory: 32 GB
- Management ports: 1
- USB ports: 1
- Power supplies: up to 2 x 1400W AC (UCS-PSU-6600-AC)
- Typical operating power: 605W
- Maximum power (AC): 1100W
- Input voltage (AC): 100 to 240 VAC, 50 to 60 Hz
- Fans: 4, hot-swappable
- Airflow: front (PSU/fan-side) to back (port-side exhaust)
- Dimensions (H x W x D): 8.6 x 44.2 x 56.6 cm
- Weight: 20 kg with two power supplies and four fans installed
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95%
- RoHS compliance: Yes

FAQs

Q: Does the UCS 6664 need a separate software licence?
A: No. The unit ships with a perpetual software licence (UCS-FI-6664-SW) that activates all ports and software features. A management mode (UCS Manager or Intersight Managed Mode) and a software image PID are selected when ordering.

Q: What power supplies does the UCS-FI-6664-U use?
A: The base unit has no power supplies. It uses the UCS-PSU-6600-AC, a 1400W platinum AC supply for 100-240VAC, with up to two per unit. Typical draw is 605W and maximum is 1100W.

Q: Which ports support Fibre Channel?
A: The 16 unified ports, ports 25-40, run either 10/25/50GbE or 16/32/64G Fibre Channel. The remaining 48 ports are 40/100GbE QSFP28 Ethernet ports.

Q: What servers and chassis does it work with?
A: It supports the UCS X9508 and UCS 5108 chassis, and B-Series and X-Series M5 and newer and C-Series M6 and newer servers. C-Series servers can be direct-connected or attached via a Nexus N9K-C93180YC-FX3 in FEX mode.

Q: Which 100G optics are supported?
A: Supported 100G optics and cables include QSFP-100G-SR4-S, QSFP-100G-LR4-S, QSFP-100G-PSM4-S and QSFP-100G-CU and AOC cables. S-class 10G and 40G transceivers do not support FCoE.
