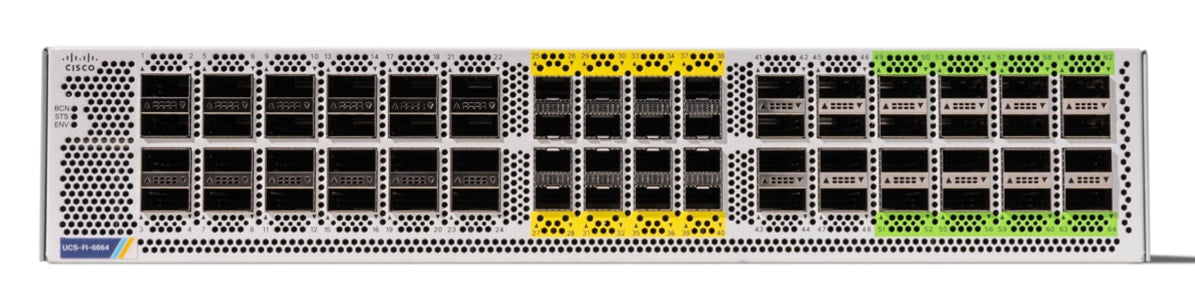

• Cisco UCS-FI-6664-FRE 2RU Fabric Interconnect with 64 Ports
1 1

Cisco

Cisco UCS-FI-6664-FRE | UCS 6664 64-Port 100G Fabric Interconnect, IMM

UCS-FI-6664-FRE

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS 6664 is a 2RU top-of-rack fabric interconnect from the 6th-generation UCS 6600 Series. It connects Cisco UCS X-Series, B-Series and C-Series servers to the LAN and SAN, consolidating Ethernet, FCoE and native Fibre Channel traffic onto one unified fabric. This SKU is the Intersight Managed Mode variant, suited to environments moving to 100GbE with a 64G Fibre Channel SAN.

It provides 64 fixed ports with 11.648 Tbps of switching capacity. Forty-eight ports run as 40/100GbE QSFP28, while 16 unified ports (ports 25-40) operate as 10/25/50GbE SFP or 16/32/64G Fibre Channel. The unit has four CPU cores, 32 GB of system memory, one management port, one console port and one USB port, with L1/L2 ports for high-availability pairing. Cut-through forwarding delivers deterministic, line-rate, low-latency Ethernet regardless of packet size. Power comes from up to two 1400W AC supplies with a typical draw of 605W, cooled by four fan modules with front-to-back airflow.

The fabric interconnect works with UCS X9508 and UCS 5108 chassis through the UCSX-9108-25G, UCSX-9108-100G and IOM 2408 modules. It supports Cisco UCS VIC 1400, 14000 and 15000 Series adapters, and is managed through Cisco Intersight or UCS Manager.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cut-through architecture with deterministic, line-rate, low-latency Ethernet independent of packet size and enabled services
- Unified ports carry FCoE, native Fibre Channel, NVMe over Fabric and Ethernet on one fabric
- All Ethernet ports are QSFP28-compatible and can run in 40/100GbE mode
- Supports Priority-based Flow Control (PFC) and lossless Ethernet
- 1600Gbps bandwidth per X9508 chassis with X9108-IFM-100G, and 200G aggregate bandwidth per X210c/X410c compute node
- Hot-swappable, redundant fans and power supplies with front-to-back cooling
- Managed through Cisco Intersight (Intersight Managed Mode) or Cisco UCS Manager
- L1/L2 ports for high-availability pairing, plus management, console and USB ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2RU, top-of-rack, 19-inch rack mount
- Ports: 64 fixed ports
- Unified ports (max): 16 (ports 25-40)
- 40/100GbE QSFP28 ports (max): 48 (ports 1-24 and 41-64)
- 10/25GbE ports (max): 64
- 50GbE ports (max): 16
- 16/32/64G Fibre Channel ports (max): 16
- Supported speeds: 10/25/40/50/100GbE/FCoE and 16/32/64G Fibre Channel
- Switching capacity: 11.648 Tbps
- CPU: 4 cores
- System memory: 32 GB
- Management ports: 1
- USB ports: 1
- Power supplies (up to 2): 1400W AC
- Typical operating power: 605W
- Maximum power (AC): 1100W
- Input voltage (AC): 100 to 240 VAC, 50 to 60 Hz
- Fans: 4, hot-swappable
- Airflow: Front (PSU/fan side) to back (port side exhaust)
- Dimensions (H x W x D): 8.6 x 44.2 x 56.6 cm
- Operating temperature: 0 to 40 C
- Weight: 20 kg with two power supplies and four fans installed

FAQs

Q: Does the UCS 6664 need a separate software licence?
A: The 6600 Series ships with a perpetual licence that activates all ports and software features, so no customer licence management is needed. Intersight itself is managed separately.

Q: Which chassis and servers does it work with?
A: It supports Cisco UCS X9508 and UCS 5108 chassis through the UCSX-9108-25G, UCSX-9108-100G and IOM 2408 modules. It connects UCS B-Series and X-Series (Intel or AMD) M5 and newer, and C-Series (Intel or AMD) M6 and newer.

Q: What power supplies and cooling does it use?
A: It takes up to two UCS-PSU-6600-AC 1400W Platinum AC supplies (100-240 VAC) and four UCS-FAN-6664 fan modules. Airflow runs front (PSU/fan side) to back (port side), and the supplies and fans are hot-swappable.

Q: How is the UCS 6664 managed?
A: It is managed through Cisco Intersight in Intersight Managed Mode, or through Cisco UCS Manager. It also has one management port, one console port and one USB port.

Q: Which ports can run Fibre Channel?
A: The 16 unified ports (ports 25-40) can run as 16/32/64G Fibre Channel or as 10/25/50GbE SFP. The other 48 ports are 40/100GbE QSFP28.
