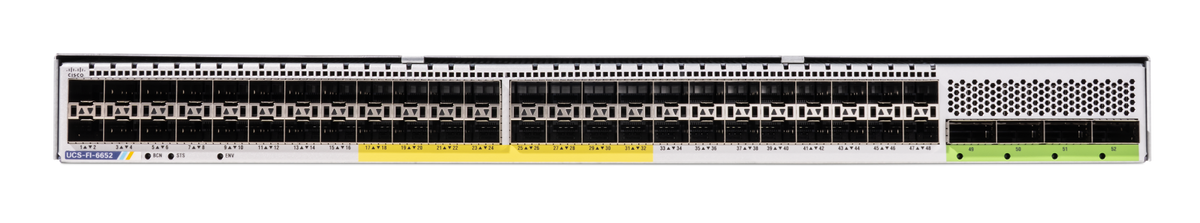

Cisco UCS-FI-6652 | UCS 6600 52-Port Fabric Interconnect, 10/25/50G, 4x 400G

UCS-FI-6652

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS 6600 Series 52-port fabric interconnect is a 1RU top-of-rack platform that provides LAN and SAN connectivity and management for Cisco UCS servers and chassis. It suits customers upgrading to 10/25/50G Ethernet and 64G Fibre Channel, and acts as the connectivity and management backbone for UCS X-Series, B-Series and UCS-managed C-Series servers in a single high-availability domain.

It provides 52 fixed ports: 32 x 10/25/50G SFP Ethernet ports, 16 unified ports that run either 10/25/50G Ethernet or 16/32/64G Fibre Channel, and 4 x QSFP-DD uplinks supporting 40/100/400G Ethernet. Switching throughput is 8.44 Tbps with latency under 1 microsecond. Power comes from up to two hot-swappable 1400W AC supplies, with a typical draw of 368W, and five fan modules provide front-to-back airflow.

The unit works with UCS X9508 and 5108 chassis, UCS VIC 1400 and 15000 series adapters, and UCS B-, X- and C-Series servers. A mandatory perpetual software licence, UCS-FI-6652-SW, activates all ports and software features.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Line-rate, low-latency, lossless Ethernet with a cut-through architecture
- Unified fabric carries LAN and SAN traffic including FC SAN, iSCSI, NFS, NVMe/FC, NVMe/TCP and NVMe over RoCEv2
- Unified ports connect directly to native Fibre Channel SANs
- Managed through Cisco UCS Manager or Cisco Intersight Managed Mode
- Priority-based Flow Control and systemwide QoS bandwidth management
- Redundant hot-swappable fans and power supplies
- L1/L2 ports for high-availability pairing of two fabric interconnects
- Supports end-to-end 50G Ethernet and 64G FC with UCS C-Series servers using VIC 15000 adapters

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1RU
- Ports: 52 fixed ports
- Ethernet ports: 32 x 10/25/50G SFP (ports 1-16 and 33-48)
- Unified ports: 16 (ports 17-32), 10/25/50G Ethernet or 16/32/64G Fibre Channel
- Uplinks: 4 x QSFP-DD 40/100/400G Ethernet (ports 49-52)
- Supported speeds: 10/25/40/50/100/400G Ethernet/FCoE and 16/32/64G Fibre Channel
- Maximum 10/25G Ethernet ports: 64 (48 SFP plus breakout of 4 QSFP ports)
- Maximum 50G Ethernet ports: 48
- Throughput: 8.44 Tbps
- Latency: under 1 microsecond
- CPU: 4 cores
- System memory: 32 GB
- Management ports: 1
- USB ports: 1
- Power supplies: up to 2 x 1400W AC (UCS-PSU-6600-AC)
- Typical operating power: 368W
- Maximum power: 1100W
- Input voltage: 100 to 240 VAC, 50 to 60 Hz
- Fans: 5, front-to-back airflow
- Hot swappable: power supplies and fans
- Dimensions (H x W x D): 4.37 x 43.94 x 50.01 cm
- Weight: 11.34 kg with two power supplies and five fans installed
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95%
- Altitude: 0 to 3,048 m

FAQs

Q: Does the UCS 6652 need a separate software licence?
A: A perpetual software licence, UCS-FI-6652-SW, is mandatory and auto-included. It activates all ports and software features, so there is no licence management to handle.

Q: Which power supplies does it use?
A: It takes up to two UCS-PSU-6600-AC 1400W platinum AC power supplies, 100 to 240 VAC at 50 to 60 Hz. Typical operating power is 368W and maximum is 1100W.

Q: Which chassis and servers does it work with?
A: It supports UCS X9508 and UCS 5108 chassis, UCS B- and X-Series M5 and newer, and C-Series M6 and newer servers. Adapters include the UCS VIC 1400/14000 and VIC 15000 series.

Q: Which UCS software release does it require?
A: The minimum release is UCS 6.0(2) for the 6652 with the 5108 chassis and VIC 1400-series adapters.

Q: How are the 16 unified ports configured?
A: Unified ports 17 to 32 can each run as 10/25/50G Ethernet or 16/32/64G Fibre Channel, so the same hardware serves both LAN and native SAN connections.
