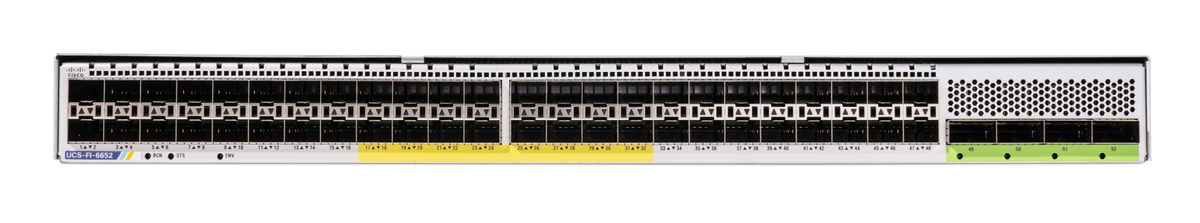

Cisco UCS-FI-6652-U | UCS 6600 52-Port Fabric Interconnect, 10/25/50G, 64G FC

UCS-FI-6652-U

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS 6652 is a 1RU, 52-port sixth-generation Cisco UCS 6600 Series Fabric Interconnect built for unified LAN and SAN access. It connects Cisco UCS X-Series and B-Series chassis and C-Series rack servers into a single, highly available management domain under Cisco UCS Manager or Cisco Intersight, and suits environments moving from 10/25G to end-to-end 25/50G Ethernet with 64G Fibre Channel.

This SKU is the chassis only (52 ports, 1RU, no PSU). It delivers 8.44 Tbps of throughput with a 4-core CPU and 32 GB of system memory. Ports 49 to 52 run 40/100/400GbE, while up to 16 unified ports (17 to 32) support 16/32/64G Fibre Channel. Up to 48 ports run 50GbE, and breakout provides up to 64 ports at 10/25G. Typical power draw is 368W with a maximum of 1100W, and it takes up to two UCS-PSU-6600-AC 1400W hot-swappable power supplies and five UCS-FAN-6652 fan modules. A perpetual software licence is auto-included via UCS-FI-6652-SW and activates all ports and features.

It works with the UCS X9508 and UCS 5108 chassis, UCSX-9108-25G and IOM-2408 modules, and UCS VIC 1400, 14000 and 15000 series adapters. Supported servers are UCS B-Series and X-Series M5 and newer, and C-Series M6 and newer. UCS 5108 chassis support requires UCS release 6.0(2) or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cut-through, low-latency architecture (under 1 microsecond) at line rate regardless of packet size and enabled services
- Unified fabric carries Fibre Channel and Ethernet concurrently, reducing NICs, HBAs, switches and cables
- Single highly available management domain through Cisco UCS Manager or Cisco Intersight
- Enables 400Gbps per UCS X9508 chassis with X9108-IFM-25G and end-to-end 25G Ethernet to compute nodes
- Priority-based Flow Control and lossless fabric for unified LAN and SAN traffic
- Systemwide bandwidth management for consistent QoS
- Redundant hot-swappable fans and power supplies
- L1/L2 ports for high-availability pairing of two fabric interconnects

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1RU
- Fixed ports: 52
- Unified ports: up to 16 (ports 17-32) for 16/32/64G Fibre Channel
- 50GbE ports: up to 48
- 10/25GbE ports: up to 64 (48 SFP plus breakout of 4 QSFP ports)
- 40/100/400GbE ports: 4 (ports 49-52)
- Supported speeds: 10/25/40/50/100/400G Ethernet/FCoE and 16/32/64G Fibre Channel
- Throughput: 8.44 Tbps
- CPU: 4 cores
- System memory: 32 GB
- Management ports: 1
- USB ports: 1
- Fan modules: 5
- Power supplies: up to 2 x 1400W AC (UCS-PSU-6600-AC)
- Typical operating power: 368W
- Maximum power (AC): 1100W
- Input voltage: 100 to 240 VAC, 50 to 60 Hz
- Airflow: front (PSU/fan side) to back (port-side exhaust)
- Efficiency (AC): 94 to 91% (50 to 100% load)
- Dimensions (H x W x D): 4.37 x 43.94 x 50.01 cm
- Weight (with two PSUs and five fans): 11.34 kg
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95%
- Altitude: 0 to 3,048 m
- RoHS compliant: Yes

FAQs

Q: Does the UCS-FI-6652-U need a separate software licence?
A: No licence management is needed. A perpetual software licence is auto-included via UCS-FI-6652-SW and activates all ports and software features.

Q: What power supplies does it use?
A: It takes up to two UCS-PSU-6600-AC 1400W platinum hot-swappable power supplies (100 to 240 VAC). The -U SKU is the chassis only, so the power supplies are ordered separately.

Q: Which chassis and servers does it connect to?
A: It supports UCS X9508 and UCS 5108 chassis, UCS B-Series and X-Series M5 and newer, and C-Series M6 and newer, with UCS VIC 1400, 14000 and 15000 series adapters. UCS 5108 support requires UCS release 6.0(2) or later.

Q: Which ports support Fibre Channel?
A: Up to 16 unified ports (ports 17 to 32) can run 16/32/64G Fibre Channel. Ports 49 to 52 run 40/100/400GbE.

Q: How is it managed?
A: It is managed through Cisco UCS Manager or Cisco Intersight, giving a single management domain across the connected chassis and servers.
