Cisco UCS-E1100D-M6 | UCS E-Series M6 Double-Wide Server, 10-Core 3.0 GHz
SKU:UCS-E1100D-M6
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description

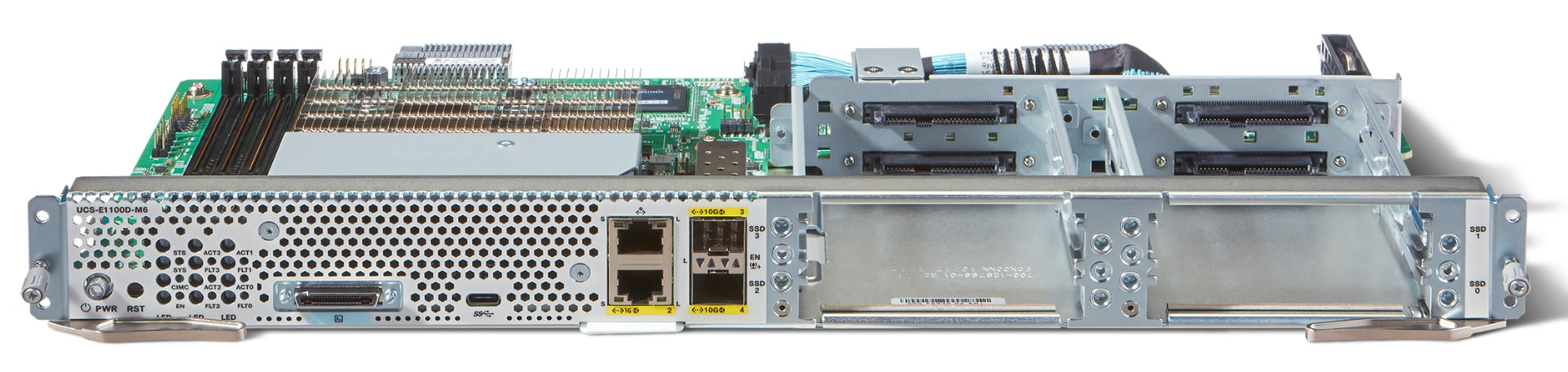

The UCS-E1100D-M6 is a double-wide, single-socket Intel Xeon D server module from the Cisco UCS E-Series M6 range. It installs in the service-module slots of a Cisco Catalyst 8300 Series Edge Platform, bringing branch-office virtualisation and application hosting into the router chassis. It suits point-of-sale, electronic medical records, video surveillance, security and firewall services, WAN optimisation, collaboration and core network services such as DHCP and DNS.
This double-wide variant is built on the Intel Xeon D-1749NT, with 10 cores at 3.0 GHz and 15 MB of cache. Four DIMM slots take 16 GB or 32 GB VLP DDR4 modules for 32 to 128 GB of memory, and four SFF drive slots accept SATA or NVMe SSDs of up to 4 TB each. Networking includes two external 10GbE ports, two internal Gigabit Ethernet ports and a dedicated 10/100/1000 management port for Cisco IMC.
It is supported in the Catalyst C8300-2N2S-4T2X and C8300-2N2S-6T, one module per chassis, and requires Cisco IOS XE 17.11 or later on the host. Guest operating system and hypervisor licences, such as VMware ESXi or Red Hat Enterprise Linux, are separate.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Double-wide module occupying two service-module slots side by side in the Catalyst 8300
- Integrated lights-out management through Cisco IMC, consistent with UCS C-Series
- Hardware is Intersight capable
- 10 Gbps backplane connectivity to the Catalyst 8300 for line-rate firewall services
- Consolidates server and router into one chassis for a zero-footprint branch deployment
- Supports Catalyst 8000V Edge Software for SD-WAN AppQoE
- Runs multiple bare-metal operating systems and hypervisors, including VMware vSphere ESXi 7.0U3 and Red Hat Enterprise Linux
- No external network cables or physical KVM needed, which improves physical security
- Enhanced power-loss data protection on the SSDs
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- CPU: Intel Xeon D-1749NT, 3.0 GHz, 10 cores, 15 MB cache
- Memory: 32 to 128 GB DDR4, 4 DIMM slots, 16 GB or 32 GB VLP DIMMs
- Drive bays: 4 x SFF slots, up to 4 TB each (SATA SSD or NVMe SSD)
- External network ports: 2 x 10 Gigabit Ethernet (1000/10000)
- Internal network ports: 2 x Gigabit Ethernet (Broadcom 5719)
- Management port: 1 x dedicated 10/100/1000 Ethernet for Cisco IMC
- Cisco IMC: Emulex Pilot-4 BMC, IPMI 2.0 compliant, CLI and WebGUI, Virtual KVM
- Integrated eMMC: 16 GB partition for Cisco IMC, 16 GB partition for the x86 host
- Front-panel connectors: 1 KVM console connector (VGA, serial, USB 2.0), 2 onboard USB 3.0 ports
- Form factor: double-wide module, occupies two service-module slots
- Dimensions (H x W x D): 1.58 x 16.25 x 8.3 in (4.01 x 41.27 x 21.08 cm)
- Maximum weight: 6.5 lb (2.95 kg)
- Operating temperature: 0 to 40 C normal, per host platform requirements
- Non-operating temperature: -40 to 70 C
- Operating humidity: 5% to 85%, per host platform requirements
- Non-operating humidity: 5% to 95%
- Operating altitude: 0 to 3000 m (10,000 ft)
- Host platforms: Catalyst C8300-2N2S-4T2X and C8300-2N2S-6T, 1 module each
- Safety: CSA C22.2 No. 62368-1, UL 62368-1, IEC 62368-1, EN 62368-1, AS/NZS 62368.1:2022
FAQs
Q: Which routers does this module work in?
A: It is supported in the Cisco Catalyst 8300 models C8300-2N2S-4T2X and C8300-2N2S-6T, with one module per chassis. The host must run Cisco IOS XE 17.11 or later.
Q: Does it need a separate licence?
A: No licence is specified for the hardware itself. Guest operating system and hypervisor licences, such as VMware ESXi or Red Hat Enterprise Linux, are separate.
Q: How is the module powered?
A: It is powered by the host Catalyst 8300 chassis. The SSDs also include enhanced power-loss data protection.
Q: Which memory and drives can be fitted?
A: Memory uses E-MEM-16G or E-MEM-32G VLP DDR4 modules. Drives are E-SSD-SATA-480G, 1TB, 2TB or 4TB, and E-SSD-U2N-2TB or 4TB NVMe.
Q: Which SFPs are supported on the 10GbE ports?
A: The supported SFPs are GLC-SX-MMD, GLC-LH-SMD, SFP-H10GB-ACU7M, SFP-10G-SR-S and SFP-10G-LR-S.
