Cisco UCS-B200M4-SM021 | UCS B200 M4 Blade Server, Dual Xeon E5, SvSAN-Optimised
SKU:UCS-B200M4-SM021
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description

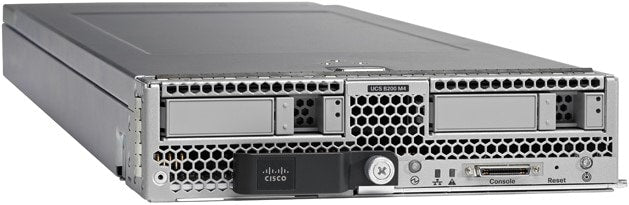

The UCS B200 M4 is a half-width, two-socket blade server for the Cisco UCS 5108 chassis, built on Intel Xeon E5-2600 v4 and v3 processors. This UCS-B200M4-SM021 variant is a dual Xeon E5, SvSAN-optimised configuration, suited to virtualised workloads, application consolidation, virtual desktops, ERP and CRM, and single-instance or distributed databases. It also fits small remote-site deployments that use hyperconverged-style storage.
It supports two processors with up to 22 cores each, and 24 DDR4 DIMM slots for up to 1.5 TB of memory with 64 GB DIMMs at speeds up to 2400 MHz. Storage is handled by up to two hot-plug front-access SAS, SATA or PCIe NVMe drives, up to 3.2 TB in total, with an optional 12Gb SAS RAID controller (LSI SAS 3108) supporting RAID 0 and 1. The Cisco UCS VIC 1340 mLOM delivers 2 x 40 Gbps, with 80 Gbps of throughput to the server, and two mezzanine slots allow further adapters.
Up to eight blades fit in a single 6RU UCS 5108 chassis, and each blade is managed through Cisco UCS Manager from the UCS 6300, 6200 and 6100 Series Fabric Interconnects. An optional NVIDIA M6 GPU is supported.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Cisco SingleConnect technology lets you wire once and provision or repurpose workloads through software
- Managed by Cisco UCS Manager, UCS Central or UCS Director with service profiles and an open XML API
- Cisco FlexStorage lets you choose the drives and RAID controller, or none
- Cisco UCS VIC 1340 provides 2 x 40 Gbps unified I/O
- Supports Cisco Data Center VM-FEX virtualisation
- Autodiscovery and extensive environmental monitoring through UCS Manager
- Optional NVIDIA M6 GPU support
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Processors: 2 x Intel Xeon E5-2600 v4 and v3 family CPUs
- Processor cores: 4 to 22 cores, varying by processor model
- Memory slots: 24 DIMM slots
- Maximum memory: 1.5 TB with 64 GB DIMMs
- Memory type: DDR4 up to 2400 MHz
- Mezzanine adapter slots: 2
- Drive bays: up to 2 hot-plug front-access SAS, SATA or PCIe NVMe HDDs or SSDs
- Maximum internal storage: up to 3.2 TB
- RAID controller: optional 12Gb SAS RAID (LSI SAS 3108), RAID 0 and 1, optional 2GB flash-backed write cache
- Flash memory: 2 slots for 32 or 64 GB SD cards
- Network adapter: Cisco UCS VIC 1340 mLOM, 2 x 40 Gbps, 80 Gbps to the server
- GPU: optional NVIDIA M6
- Form factor: half-width blade, up to 8 per 6RU UCS 5108 chassis
- Management: Cisco UCS Manager via UCS 6300, 6200 and 6100 Series Fabric Interconnects
- Operating temperature: 10 to 35 C
- Non-operating temperature: -40 to 65 C
- Operating humidity: 5 to 93% non-condensing
- Operating altitude: 0 to 3000 m
FAQs
Q: Does the blade need a licence to operate?
A: No licence is needed to run the blade itself. It is managed through Cisco UCS Manager on the Fabric Interconnects.
Q: Which chassis does it fit?
A: It is a half-width blade for the Cisco UCS 5108 Blade Server Chassis, which holds up to eight B200 M4 blades in 6RU.
Q: Which Fabric Interconnects can manage it?
A: It works with Cisco UCS 6300, 6200 and 6100 Series Fabric Interconnects running Cisco UCS Manager.
Q: How is the blade powered?
A: Power comes from the power supplies in the UCS 5108 chassis. There is no separate power connection on the blade.
Q: What storage can it hold?
A: It takes up to two hot-plug SAS, SATA or PCIe NVMe drives, up to 3.2 TB in total, with an optional 12Gb SAS RAID controller for RAID 0 and 1.
