Cisco PWR-IE65W-PC-DC | IE 2000/3000 65W Low DC Input PoE Power Supply

SKU:PWR-IE65W-PC-DC

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

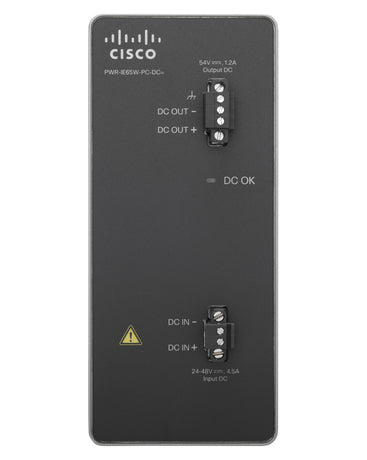

This 65W low-voltage DC-to-DC power module supplies 54VDC at 1.2A to power PoE and PoE+ devices on Cisco Industrial Ethernet switches such as the IE 2000 and IE 3000 with IEM-3000 PoE expansion modules. It accepts a hardwired 24-48VDC input (18-60VDC range) and mounts on a DIN rail, making it suited to rugged industrial cabinets. It operates from -40°C to +75°C and is approved for Class 1, Div 2 / Zone 2 hazardous-location installations. Unlike the AC/high-DC input variant, this model is designed for low DC input environments.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Powers PoE and PoE+ modules in industrial deployments
- Compatible with Cisco IE 2000 and IE 3000 (IEM-3000 PoE expansion modules)
- Wide operating temperature range with no derating for rugged environments
- Compact DIN-rail mountable form factor
- Safety and EMC compliance including UL 508, EN 60950-1, EN 61000-4-x, IEC 61850-3 and IEEE 1613

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Input: 24-48VDC nominal (18-60VDC range), hardwired connection
- Output: 54VDC, 1.2A, 65W
- Typical efficiency: 92%
- PoE support: up to 4 PoE or 2 PoE+ devices (IE 2000)
- Mounting: DIN-rail
- Dimensions: 66 x 150 x 117 mm (2.59 x 5.90 x 4.60 in)
- Weight: 1.18 kg (2.60 lb)
- Ingress rating: IP20
- Operating temperature: -40°C to +75°C, storage -40°C to +85°C
- Humidity: up to 95% RH non-condensing
- Operating altitude: up to 3963 m (13,000 ft)
- Approved for Class 1, Div 2 / Zone 2 hazardous locations

FAQs

Q: What input voltage does this power module require?
A: It accepts a low DC input of 24-48VDC nominal, with an operating range of 18-60VDC, via a hardwired connection.

Q: Which Cisco switches is it designed for?
A: It is designed to supply PoE power for Cisco Industrial Ethernet 2000 and 3000 series switches, including IEM-3000 PoE expansion modules.

Q: How much PoE capacity does it provide?
A: It delivers 54VDC at 1.2A (65W), which supports up to 4 PoE devices or 2 PoE+ devices on an IE 2000.

Q: How does this differ from the PWR-IE65W-PC-AC model?
A: This DC variant takes a low DC input (24-48VDC), while the PWR-IE65W-PC-AC variant is intended for AC or high-DC input. Both provide the same 54VDC, 65W output.

Q: Can it be installed in harsh or hazardous environments?
A: Yes. It operates from -40°C to +75°C, is DIN-rail mounted, and is approved for Class 1, Div 2 / Zone 2 hazardous-location installations.
