Cisco

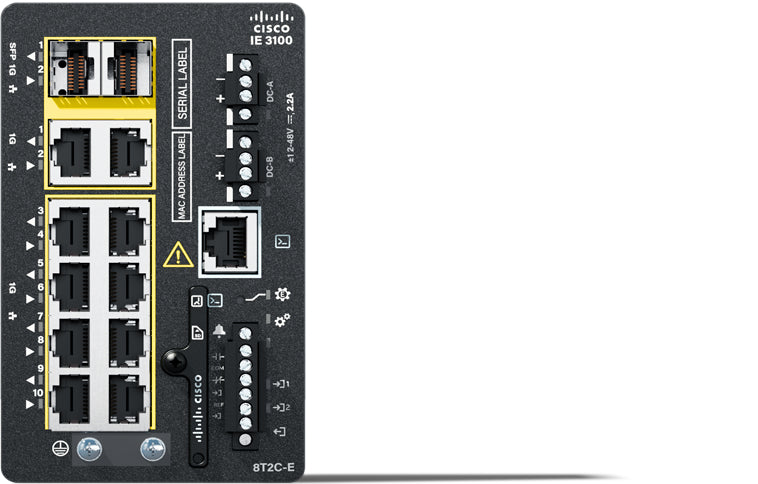

Cisco IE-3100-8T2C-E | Catalyst IE3100 8-Port Gigabit Industrial Switch, 2x SFP/RJ45, Network

SKU:IE-3100-8T2C-E

$2,834.91 inc. GST
$2,577.19 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3100 is a compact, fanless industrial Gigabit Ethernet switch built for DIN-rail mounting in harsh environments. It suits manufacturing floors, energy and utility substations, transportation and ITS, mining, smart cities and outdoor cabinets, where space is limited and temperature extremes are routine. It runs Cisco IOS XE and supports redundant ring topologies and SCADA/IP connectivity.

This non-PoE model provides 8 x 10/100/1000 RJ45 copper ports plus 2 x 1GE combo uplinks that accept RJ45 or SFP. It delivers 10 Gbps of forwarding bandwidth and a 14.88 Mpps forwarding rate, with 4 GB DRAM and 1.5 GB of user-accessible flash. Power comes from dual DC inputs (12-48 V nominal), drawing 17.7 W, and the switch operates from -40 to 75 C in a blower-equipped cabinet. It includes the perpetual Network Essentials feature set. Cisco Catalyst Center licences are optional add-ons.

The combo uplinks accept a wide range of Cisco 100M and 1G SFPs, including industrial-temperature GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD=, GLC-FE-100FX-RGD= and GLC-T-RGD=, as well as BX, CWDM and DWDM modules. DIN-rail power supplies such as the PWR-IE50W-AC= and PWR-IE170W-PC-AC=/DC= are suitable.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Cisco IOS XE with Secure Boot, image signing and Cisco Trust Anchor module
- Fanless, convection-cooled design with no moving parts
- Resiliency protocols including REP, MRP, Fast MRP and G.8032 ERP v1
- Industrial automation protocol support including EtherNet/IP (CIP), Modbus and PROFINET
- IEEE 1588v2 PTP with default and power profile support
- WebUI plus open APIs with NETCONF, RESTCONF and YANG
- Managed with Cisco Catalyst Center, with Plug and Play and ZTP support
- Security features including 802.1X, DHCP Snooping, Dynamic ARP Inspection and IP Source Guard

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Total ports: 10
- Copper ports: 8 x 10/100/1000 RJ45
- Uplinks: 2 x 1GE combo (RJ45/SFP)
- PoE: Non-PoE model
- Forwarding rate: 14.88 Mpps (64-byte packets)
- Forwarding bandwidth: 10 Gbps
- Egress queues: 8
- VLANs: 256
- Unicast MAC addresses: 8000
- IGMP multicast groups: 512
- DRAM: 4 GB
- Flash (user accessible): 1.5 GB
- Removable storage: optional SD card
- Alarm inputs: 2 dry-contact
- Console ports: 1 RS-232 (RJ-45), 1 Micro USB
- Power input: Dual DC, 12-48 V nominal (9.6-60 V absolute)
- Power consumption: 17.7 W
- Dimensions (H x W x D): 12.70 x 7.62 x 11.00 cm
- Weight: 0.86 kg
- Mounting: DIN rail
- Operating temperature: -40 to 75 C (blower-equipped cabinet)
- Storage temperature: -40 to 85 C
- Relative humidity: 5% to 95% non-condensing
- Ingress protection: IP30
- MTBF (Telcordia Issue 4): 854,560 hours
- Software licence: Network Essentials

FAQs

Q: Does this switch need an additional licence?
A: No. It includes the perpetual Network Essentials feature set. Cisco Catalyst Center Essentials licences are optional add-ons and are not required to run the switch.

Q: Does it provide PoE?
A: No. This is a non-PoE model, so connected devices need their own power. The switch itself runs from dual DC inputs of 12-48 V nominal.

Q: Which power supplies suit this switch?
A: Cisco DIN-rail supplies such as PWR-IE50W-AC=, PWR-IE65W-PC-AC=/DC=, PWR-IE170W-PC-AC=/DC= and PWR-IE240W-PCAC-L= are compatible. Power draw is 17.7 W.

Q: Which SFPs work in the combo uplinks?
A: The combo ports accept a broad range of Cisco 100M and 1G SFPs, including industrial-temperature GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD=, GLC-FE-100FX-RGD= and GLC-T-RGD=.

Q: What operating temperature range does it support?
A: It operates from -40 to 75 C in a blower-equipped cabinet, -40 to 70 C in a vented cabinet and -40 to 60 C in a sealed cabinet.
