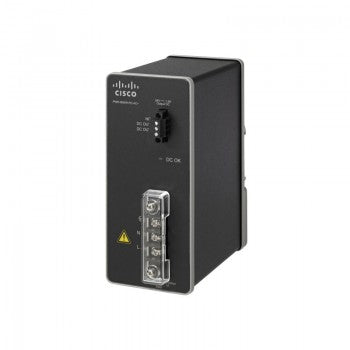

Cisco PWR-IE65W-PC-AC | Industrial DIN-Rail PoE Power Supply, 65W, 54VDC/1.2A

SKU:PWR-IE65W-PC-AC

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 65W DIN-rail PoE power supply accepts AC or high-voltage DC input and delivers 54VDC at 1.2A to supply PoE/PoE+ power to Cisco Industrial Ethernet 2000 and 3000 Series switches. It is hardwired, rated for -40°C to +75°C operation without derating, and approved for Class 1, Div 2 / Zone 2 hazardous-location installations. A compact, rugged choice for industrial networks that need dependable PoE capacity at the edge.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Accepts either AC or high-voltage DC input
- Supports PoE/PoE+ on compatible industrial switches
- Over-temperature protection
- Short-circuit protection
- Rugged, compact industrial design for -40°C to +75°C operation
- Compatible with Cisco Industrial Ethernet 2000 and 3000 Series switches

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Output power: 65W
- Output: 54VDC, 1.2A
- Input (AC): 100-240V, 1.4A, 50-60Hz (operating range 90-264V)
- Input (DC): 125-250V, 1.0A (operating range 106-300V)
- Efficiency: 85%
- Inrush current: less than 35A at 115VAC and 70A at 230VAC
- Hold-up time: 10ms
- Ingress protection: IP20
- Operating temperature: -40°C to +75°C, no derating
- Storage temperature: -40°C to +85°C
- Humidity: less than 95% RH, non-condensing
- Dimensions: 66 x 148 x 118 mm
- Weight: 1.2 kg
- MTBF: 2,488,401 hours
- Mounting: DIN rail, hardwired connection
- Approvals: Class 1, Div 2 / Zone 2 hazardous locations, CSA certified

FAQs

Q: Which switches is this power supply compatible with?
A: It is designed for Cisco Industrial Ethernet 2000 and 3000 Series switches, providing the 54VDC supply needed for PoE and PoE+ ports.

Q: What input voltages does it accept?
A: It accepts AC input of 100-240V (operating range 90-264V) or high-voltage DC input of 125-250V (operating range 106-300V).

Q: Can it be used in harsh or hazardous environments?
A: Yes. It operates from -40°C to +75°C with no derating and is approved for Class 1, Div 2 / Zone 2 hazardous-location installations.

Q: How is it mounted and connected?
A: It mounts on a DIN rail and uses a hardwired connection, with an IP20 ingress protection rating.

Q: What output does it provide?
A: It delivers 65W at 54VDC and 1.2A, suitable for powering PoE and PoE+ devices through compatible industrial switches.
