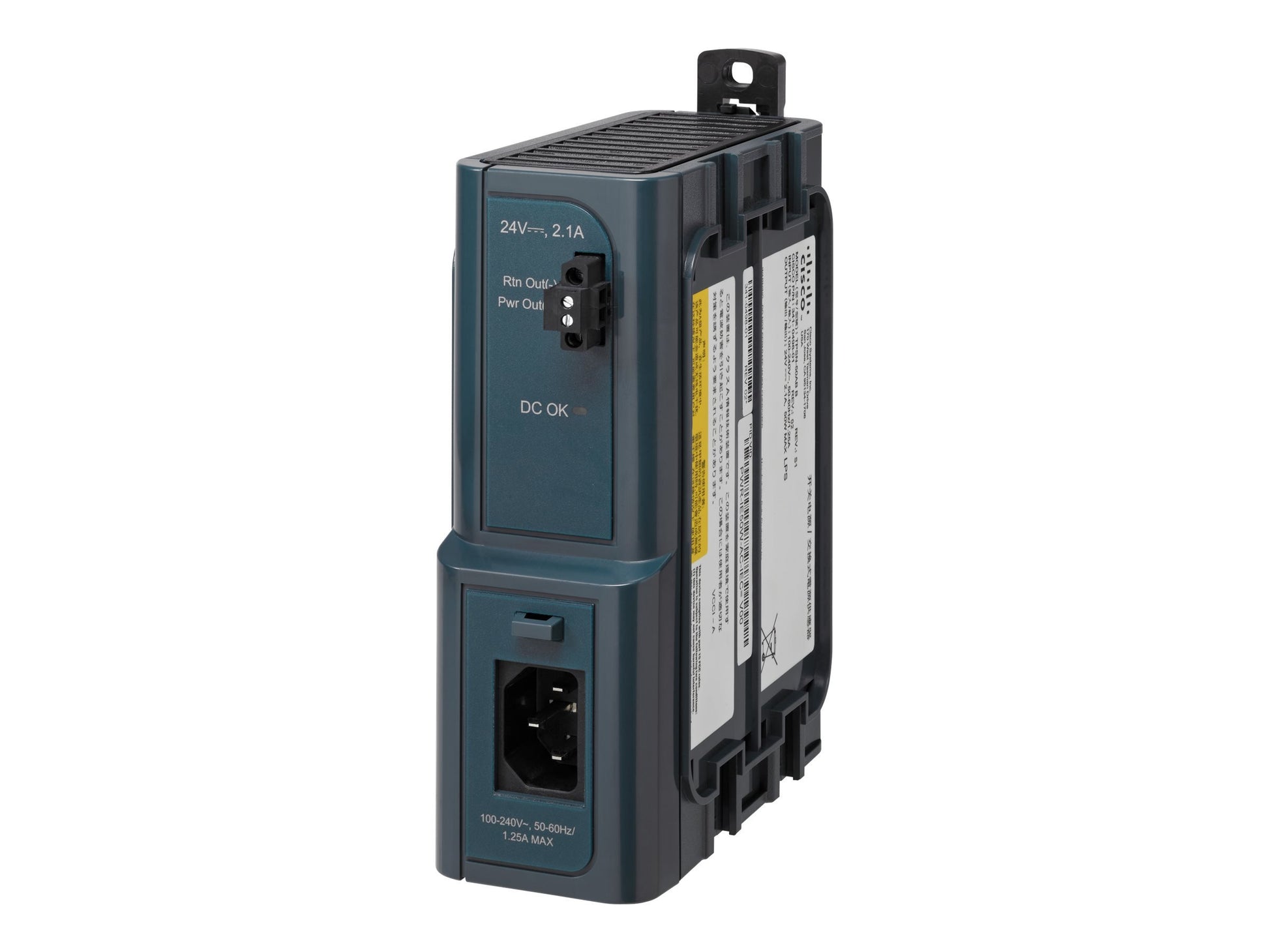

Cisco PWR-IE50W-AC-IE | 50W AC DIN-Rail Power Supply, IEC C14 Input, 24VDC

SKU:PWR-IE50W-AC-IE

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 50W DIN-rail AC-to-DC industrial power supply accepts a plug-in IEC 60320 C14 input and delivers 24VDC at 2.1A to Cisco Industrial Ethernet switches, including the IE 1000, IE 2000, IE 3000 and IE 4000 families. It suits panel and cabinet installations that need a plug-in AC connection rather than hardwired terminals, and it operates from -20°C to +70°C without derating. It does not support PoE and is not approved for hazardous location installations.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Plug-in IEC C14 input instead of hardwired terminals
- DIN-rail mounting for panel and cabinet installations
- Compatible with Cisco Industrial Ethernet switches (IE 1000, IE 2000, IE 3000, IE 4000 families)
- Over-temperature and short-circuit protection
- Full-load operation from -20°C to +70°C with no derating

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Output power: 50W
- Output: 24VDC, 2.1A
- Rated nominal input: AC 100-240V/1.25A, 50-60Hz
- Supported input range: AC 90-264V
- Typical efficiency: 80%
- Inrush current: <35A @ 115VAC and 70A @ 230VAC
- Holdup time: 20ms at 100% load
- Protections: over-temperature and short-circuit
- Input connection: plug-in, IEC 60320 C14
- PoE/PoE+ support: No
- IP rating: IP20
- Operating temperature: -20°C to +70°C, no derating
- Storage temperature: -40°C to +85°C
- Operating humidity: <95% RH (non-condensing)
- Dimensions: 51 x 118 x 148 mm (2.0 x 4.64 x 5.82 in)
- Weight: 0.65 kg (1.43 lb)
- MTBF: 1,662,359 hours
- Mounting: DIN-rail

FAQs

Q: Which switches can this power supply be used with?
A: It delivers 24VDC at 2.1A to Cisco Industrial Ethernet switches such as the IE 1000, IE 2000, IE 3000 and IE 4000 families.

Q: Does this power supply support PoE or PoE+?
A: No. It provides 50W of 24VDC output for powering the switch only and does not support PoE or PoE+.

Q: What input connection does it use?
A: It uses a plug-in IEC 60320 C14 AC input rather than hardwired terminals. The supported input range is AC 90-264V, with a rated nominal input of 100-240V, 50-60Hz.

Q: Can it be installed in a hazardous location?
A: No. This unit is not approved for hazardous location installations. It is rated IP20 and is intended for installation inside a cabinet or panel.

Q: What operating temperature range does it support?
A: It operates from -20°C to +70°C with no derating, and can be stored from -40°C to +85°C.
