Cisco PWR-IE160W-67-DC | IE 2000 IP67 160W DC Power Supply, 18-60 VDC Input

SKU:PWR-IE160W-67-DC

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

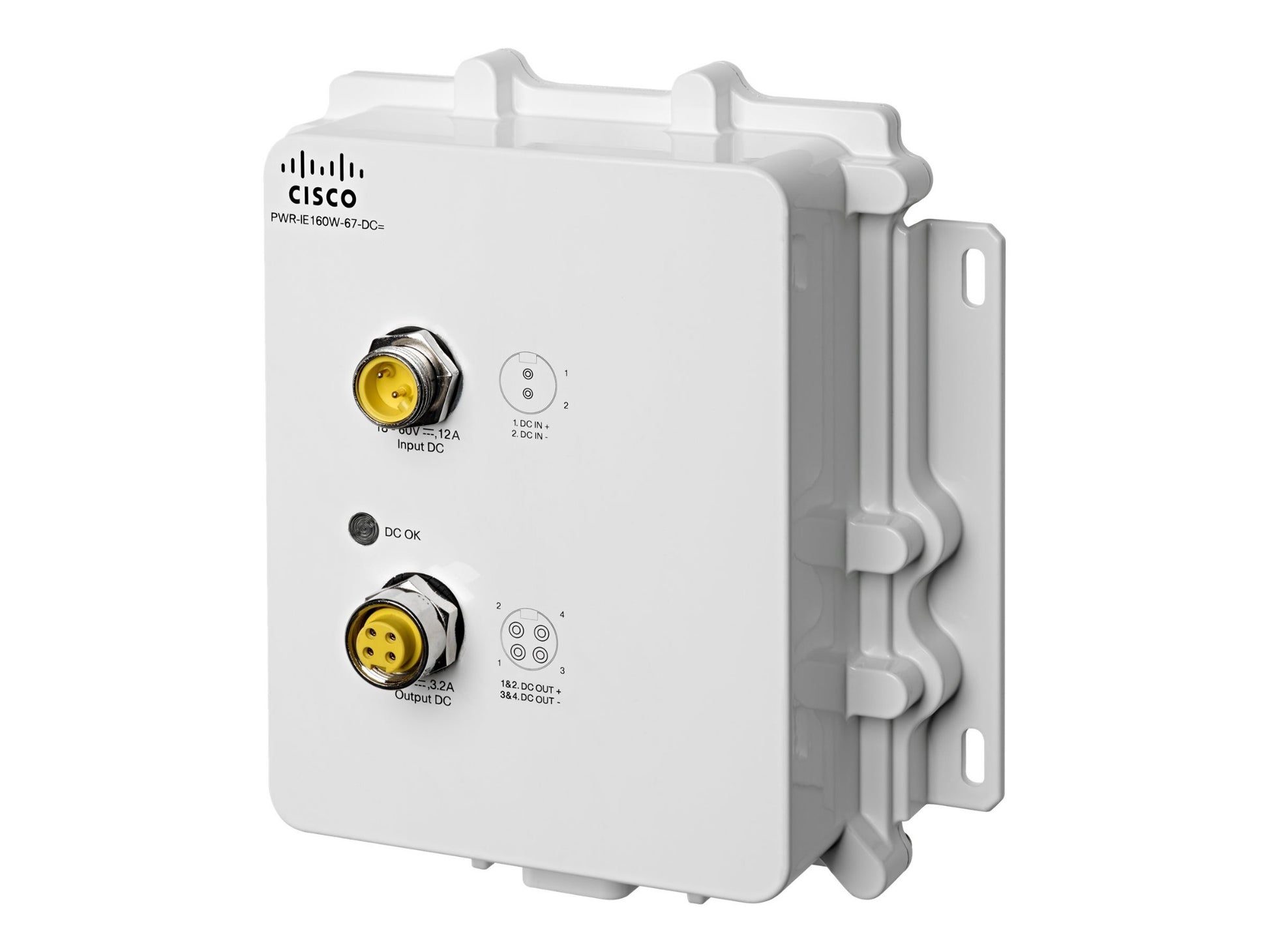

This IP67-rated DC-to-DC industrial power supply accepts an 18-60 VDC input and delivers 54 V at up to 3.1 A (160 W). It is designed to power Cisco IE 2000 IP67 Series switches, including up to 8 PoE ports or 4 PoE+ ports, in harsh industrial and outdoor environments. The sealed, dust-tight and submersible enclosure suits panel or wall mounted deployments where low-voltage DC supply is available.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IP67 sealed enclosure for harsh and outdoor environments
- Wide-range low-voltage DC input
- 54 V output for PoE/PoE+ loads
- Rugged industrial construction, wall-mountable form factor with IE 2000 IP67 switches
- Safety approvals include UL 508 and CSA C22.2 No. 107.1

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Output power: 160 W (54 VDC, 3.1 A max)
- Input voltage: 18-60 VDC, 12 A
- IP67 rated (dust-tight and submersible)
- Powers an IE 2000 IP67 switch with up to 8 PoE ports or 4 PoE+ ports
- Dimensions: 8.7 x 9.1 x 3.8 in (222.2 x 231.7 x 97 mm)
- Weight: 5.2 lbs (2.36 kg)
- MTBF: 374,052 hours
- Designed for Cisco IE 2000 IP67 Series switches

FAQs

Q: What input voltage does this power supply accept?
A: It accepts a low-voltage DC input of 18-60 VDC at up to 12 A.

Q: Which switches is it designed to power?
A: It is designed for Cisco IE 2000 IP67 Series switches, and can supply a switch with up to 8 PoE ports or 4 PoE+ ports.

Q: What is the output rating?
A: It delivers 54 VDC at up to 3.1 A, giving a total of 160 W.

Q: Is it suitable for outdoor or wet locations?
A: Yes. The IP67 rating means the enclosure is dust-tight and can withstand temporary submersion, making it suited to harsh industrial environments.
