Cisco

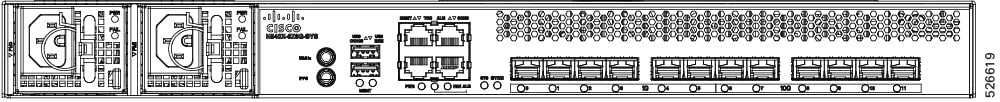

Cisco N540X-6Z6G-SYS | NCS 540 Router, 6x 1G + 6x 10G SFP+, I-Temp

N540X-6Z6G-SYS

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The NCS 540 N540X-6Z6G-SYS is a compact 1RU carrier-class cell-site and access router running IOS XR. It is built for 5G transport and mobile backhaul in Cisco's 5G Converged SDN Transport, as well as wireline services and sealed-cabinet or outdoor deployments that need an industrial temperature range and conformal coating.

The chassis provides 6x 1GE SFP ports and 6x 1G/10G SFP+ ports, driven by a quad A72 1.8 GHz CPU with 8 GB DRAM and 16 GB eMMC, delivering up to 125 Mpps. It has a modular redundant power supply bay that supports concurrent AC and DC modules, and an N+1 modular fan tray. The I-Temp rating covers -40 to +70 C up to 300 m, and the chassis is conformal coated.

Power supplies N540-PWR400-A (AC) and N540-PWR400-D (DC), the N540X-6Z6G-FT fan tray and the N540-RCKMT-PLA rackmount kit are the matching parts for this chassis. It mounts in 19 in, 23 in and ETSI racks. SFP and SFP+ optics are needed to populate the 1G and 10G ports.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IOS XR cell-site router that extends Cisco's 5G Converged SDN Transport
- G.8273.2 Class C timing with SyncE and IEEE 1588 PTP (T-GM, T-BC, T-TSC)
- Segment Routing with SR-MPLS and SRv6 data planes
- Layer 2 and Layer 3 VPN services including VPWS, VPLS, EVPN, L3VPN and MPLS-TE
- Class-based 3-level hierarchical QoS with deep packet buffer
- Trust Anchor infrastructure, secure boot, image signing and run-time defence
- NETCONF/gRPC, YANG models, streaming telemetry and zero-touch provisioning with Cisco Crosswork
- Conformal-coated I-Temp 1RU chassis suited to sealed cabinets with sufficient cooling

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis PID: N540X-6Z6G-SYS
- Description: NCS540 6x1G SFP + 6x1/10G SFP+ Dual-AC/DC iTEMP Conformal-Coated Chassis
- Interfaces: 6x 1GE SFP and 6x 10G/1GE SFP+
- CPU: Quad A72 SoC 1.8 GHz
- Memory: 8 GB DRAM
- Storage: 16 GB eMMC
- Forwarding performance: up to 125 Mpps
- Power supplies: modular, redundant, concurrent AC + DC
- DC input: wide range -40V to -72V
- Fans: modular fan tray, N+1 redundant
- Airflow: front to back
- Operating temperature: I-Temp, -40 C to +70 C up to 300 m
- Operating temperature: -40 C to +65 C up to 1800 m, -40 C to +55 C up to 4000 m
- Storage temperature: -40 C to +70 C
- Operating humidity: 5-95% RH, noncondensing
- Dimensions: 1 RU, 445 mm wide x 232 mm deep
- Weight: 6.3 kg
- Mounting options: 19 in, 23 in, ETSI
- Timing: SyncE, PTP, 1pps, 10MHz, ToD, G.8273.2 Class C
- Management interfaces: USB console port, USB memory port, RJ45 console
- Surge rating: AC 1KV differential and 2KV common mode, DC 1KV differential and 1KV common mode
- Conformal coated: yes
- NEBS GR-3108: designed to meet Class III when installed in sealed cabinets
- Software: IOS XR (FCS release 25.4.1)

FAQs

Q: What power supplies does this chassis use?
A: It takes modular redundant power supplies that can run AC and DC concurrently. The matching parts are N540-PWR400-A (AC) and N540-PWR400-D (DC). DC input is wide range, -40 to -72 V.

Q: Which software does it run and does it need a licence?
A: It runs Cisco IOS XR, with FCS release 25.4.1. NCS 540 software is licensed in Access Essentials and Access Advantage tiers on a per-10G basis, so confirm the tier you need when ordering.

Q: What is the operating temperature range?
A: It has an I-Temp rating of -40 C to +70 C up to 300 m altitude. The range reduces to +65 C up to 1800 m and +55 C up to 4000 m.

Q: Which racks and accessories does it work with?
A: It mounts in 19 in, 23 in and ETSI racks using the N540-RCKMT-PLA rackmount kit. The fan tray is N540X-6Z6G-FT.

Q: Do the 10G ports also run at 1G?
A: Yes. The six SFP+ ports support both 10G and 1GE operation, alongside six dedicated 1GE SFP ports.
