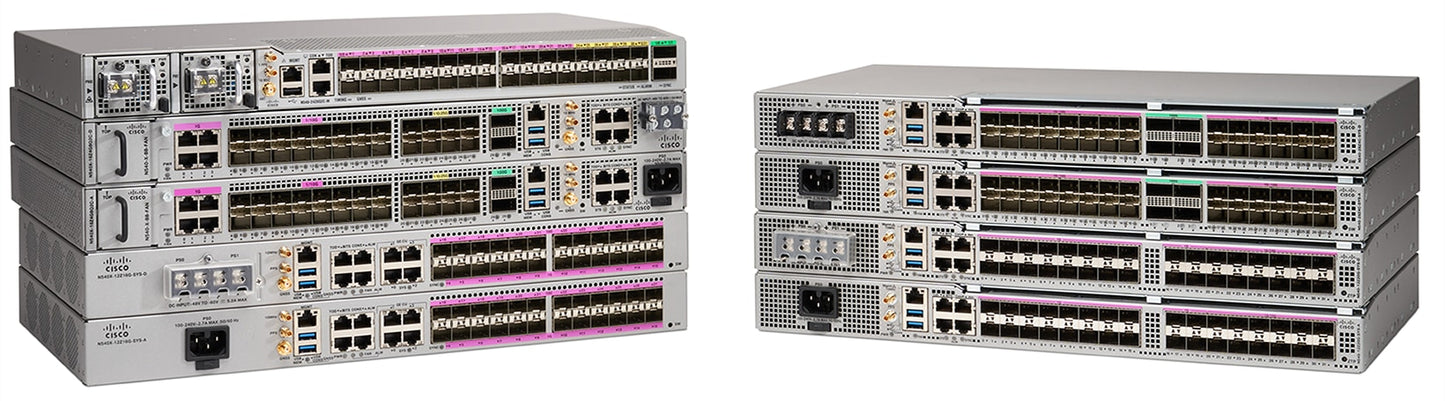

• Cisco Catalyst 3850 switch stack in N540-FH-AGG-SYS 5G router
1 1

Cisco

Cisco N540-FH-AGG-SYS | NCS 540 Fronthaul Aggregation Router, 24x25G + 4x100G

N540-FH-AGG-SYS

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco NCS 540 Fronthaul N540-FH-AGG-SYS is a 1RU aggregation router built for 5G and 4G LTE fronthaul and mid-haul transport in Cloud RAN and Centralised RAN designs. It aggregates CPRI, eCPRI and Ethernet traffic from cell-site routers and radio units, and suits indoor or protected-cabinet deployments as part of a Converged SDN Transport architecture. It runs Cisco IOS XR.

The front panel provides 24 universal 1/10/25G ports that can carry CPRI option 3-8, eCPRI or Ethernet, plus 4x 100G ports, with throughput of up to 900 Gbps. An FPGA-extended forwarding plane keeps forwarding latency typically under 10 microseconds. An 8-core 1.7 GHz x86 CPU with 8 GB DRAM and 32 GB storage runs the control plane. Timing is handled by SyncE and IEEE 1588 PTP, with G.8273.2 Class B/C support and 1pps, 10MHz, ToD and GNSS antenna interfaces.

This C-Temp aggregation SKU uses two hot-swappable N540-PWR750 power supplies in 1+1 redundancy (AC or DC) and six modular fans in 5+1 redundancy with front-to-back airflow. Maximum power draw is 700 W. It supports optics listed in the Cisco TMG Compatibility Matrix for NCS 540 and the N540 rack kit options.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Ultra-low-latency forwarding for radio transport
- FPGA-extended ASIC architecture adaptable to CPRI, eCPRI and Radio over Ethernet (RoE)
- Precise frequency, phase and time sync: SyncE, IEEE 1588 PTP (T-GM, T-BC, T-TSC), G.8265.1, G.8275.1, G.8275.2, G.8273.2 Class B/C
- Segment Routing with SR-MPLS, TI-LFA, SR-TE, SR-PCE and SR-ODN
- L2/L3 EVPN with Anycast IRB, EVPN-VPWS, VPLS, MPLS LDP/RSVP-TE and BGP-LU
- Hierarchical QoS with VOQ and deep packet buffers
- Model-driven programmability: NETCONF/gRPC, YANG (OpenConfig, IETF), telemetry and ZTP with iPXE
- Control-plane protection (LPTS), AAA/TACACS+, SSH, ACLs and Unicast RPF

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis PID: N540-FH-AGG-SYS (Aggregation Router)
- Universal ports: 24x 1G/10G/25G (802.1Qbu, CPRI option 3-8, eCPRI, Ethernet)
- Uplink ports: 4x 100G
- Throughput: up to 900 Gbps
- CPU: 8-core 1.7 GHz x86
- Memory: 8 GB DRAM
- Storage: 32 GB
- Forwarding latency: typically under 10 microseconds
- Power supplies: 2x hot-swappable AC/DC, 1+1 redundancy (N540-PWR750-A / N540-PWR750-D)
- Power consumption: minimum under 650 W, typical under 675 W, maximum 700 W
- AC input: 90-265 V, 50-60 Hz
- DC input: -40 V to -72 V
- Fans: 6 modular fans, 5+1 redundancy, front-to-back airflow (N540-FAN-FHA)
- Operating temperature (C-Temp): 0 to +55 C at 1,000 ft, +50 C at 6,000 ft, +45 C at 13,000 ft
- Storage temperature: -40 to 70 C
- Operating humidity: 15% to 85% non-condensing
- Altitude: 0 to 13,000 ft
- Timing interfaces: 1pps, 10MHz, ToD, GNSS antenna
- Dimensions (H x W x D): 1.72 x 17.5 x 22.82 in (1RU, 58 cm depth)
- Weight: 11.3 kg
- NEBS: designed to meet GR-63-CORE, GR-1089-CORE and GR-3108 Class-2
- Software: Cisco IOS XR

FAQs

Q: Which power supplies does this router use?
A: It takes two hot-swappable N540-PWR750 power supplies in 1+1 redundancy, N540-PWR750-A for AC or N540-PWR750-D for DC. AC input is 90-265 V, 50-60 Hz and DC input is -40 to -72 V.

Q: What software and licensing does it run?
A: It runs Cisco IOS XR. Access Essentials and Access Advantage software Right-to-Use licences are sold per 10G, for example ESS-AC-10G-RTU-1 and ADV-AC-10G-RTU-1.

Q: What can the 24 universal ports carry?
A: Each universal port runs at 1G, 10G or 25G and can carry CPRI (option 3-8), eCPRI or standard Ethernet traffic, with 802.1Qbu support.

Q: Which optics and accessories does it work with?
A: Supported transceivers are listed in the Cisco TMG Compatibility Matrix for NCS 540. Rack kits are N540-RKM-19-FHA, N540-RKM-23-FHA, N540-RKM-ETSI-FHA and N540-RKM-4PST-FHA, with the N540-CBL-BRKT-FHA cable management bracket and N540-FAN-FHA fan assembly.

Q: What timing options does it support?
A: It supports SyncE with ESMC and IEEE 1588 PTP, including G.8273.2 Class B/C. It provides 1pps, 10MHz, ToD and GNSS antenna interfaces.
