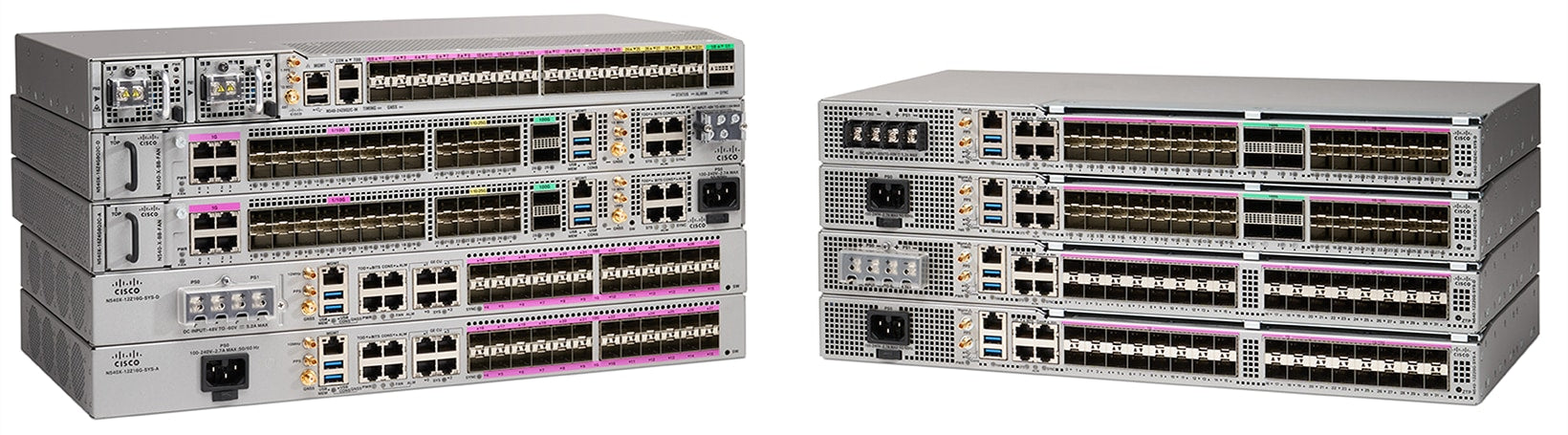

• Cisco Catalyst 3850 switch stack in N540-ACC-SYS 1RU chassis
1 1

Cisco

Cisco N540-ACC-SYS | NCS 540 Router, 24x 10G SFP+, 8x 25G, 2x 100G QSFP28

N540-ACC-SYS

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The NCS 540 is a fixed 1RU service-provider access and aggregation router, built for converged access, mobile backhaul and xHaul, and business and residential service delivery. Its hardened design suits space-constrained and outdoor cabinets that need precise frequency and phase/time synchronisation.

This chassis provides 24x 1/10GE SFP+ ports, 8x 1/10/25GE SFP28 ports and 2x 40/100GE QSFP28 ports, with up to 300 Mpps of forwarding performance. It has a 4-core 1.5 GHz x86 CPU, 16 GB DRAM and 128 GB of storage, and runs Cisco IOS XR. It takes two hot-swappable AC/DC power supplies in a 1+1 arrangement and four modular fans in a 3+1 arrangement, with front-to-back airflow. Operating temperature is rated from -40C to +70C, derated with altitude. This is the non-conformal-coated variant.

IOS XR software is licensed in Access Essentials and Access Advantage tiers, sold per 10G as Right-to-Use or as term-based subscriptions. Supported optics are listed in the Cisco Transceiver Module Group Compatibility Matrix for the NCS 540 series.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XR with programmability, network visibility and automation
- Layer 2 and Layer 3 routing including VLAN/Q-in-Q, LACP, G.8032, VRF, OSPF, IS-IS, MP-BGP, BFD and ECMP
- MPLS (LDP, RSVP-TE, L2VPN/EVPN, VPLS) and Segment Routing (SR-MPLS, SRv6, TI-LFA, SR-TE)
- IPv4 and IPv6 multicast with PIM, mLDP and mVPN
- Hierarchical QoS with virtual output queueing and deep packet buffers
- Precise timing with SyncE, IEEE 1588 PTP and G.8273.2 Class B
- Secure boot, image signing, run-time defence and trust anchor protection
- Model-driven telemetry, NETCONF/gRPC with YANG models, ZTP and third-party app hosting

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x 1GE/10GE SFP+
- Ports: 8 x 1GE/10GE/25GE SFP28
- Ports: 2 x 40GE/100GE QSFP28
- Forwarding performance: up to 300 Mpps
- CPU: 4-core 1.5 GHz x86
- Memory: 16 GB DRAM
- Storage: 128 GB
- Form factor: 1RU fixed chassis
- Dimensions (H x W x D): 1.72 x 17.3 x 10.1 in (approx. 43.7 x 439 x 257 mm)
- Depth: 26 cm
- Weight: 5.9 kg
- Power supplies: 2 hot-swappable AC/DC modules, 1+1 redundancy
- Power supply PIDs: N540-PWR400-A (AC), N540-PWR400-D (DC)
- Fans: 4 modular fans, 3+1 redundancy (N540-FAN)
- Airflow: front-to-back
- Temperature range: -40C to +70C at 1,000 ft, +65C at 6,000 ft, +55C at 13,000 ft
- Family power consumption: minimum under 100 W, typical under 200 W, maximum 250 W
- Timing: SyncE, PTP, internal GNSS receiver, Class B
- Timing interfaces: 1pps, 10MHz, ToD, GNSS antenna
- Surge rating (IEC 61000-4-5): AC 1 kV DM / 2 kV CM, DC 1 kV DM / 1 kV CM
- Standards: NEBS GR-63-CORE and GR-1089-CORE compliant, MEF 3.0
- Software: Cisco IOS XR

FAQs

Q: Which licences does the NCS 540 use?
A: It runs Cisco IOS XR with Access Essentials and Access Advantage licence tiers. These are sold per 10G as Right-to-Use or as term-based subscriptions, with upgrades from Essentials to Advantage available.

Q: What power supplies does it use?
A: It takes two hot-swappable modules in a 1+1 redundant arrangement: N540-PWR400-A for AC or N540-PWR400-D for DC. Four modular fans (N540-FAN) provide 3+1 cooling with front-to-back airflow.

Q: Which optics and rack kits work with it?
A: Supported transceivers are listed in the Cisco Transceiver Module Group Compatibility Matrix for the NCS 540 series. Rack kits N540-RCKMT-19, N540-RCKMT-23 and N540-RKMT-ETSI are available for the AC variant.

Q: How does this SKU differ from N540X-ACC-SYS?
A: N540-ACC-SYS is the non-conformal-coated chassis. N540X-ACC-SYS is the conformal-coated variant of the same 24x 10G, 8x 25G and 2x 100G design.

Q: Can the 25G ports run at lower speeds?
A: Yes. The 8 SFP28 ports support 1GE, 10GE and 25GE, and the 24 SFP+ ports support 1GE and 10GE.
