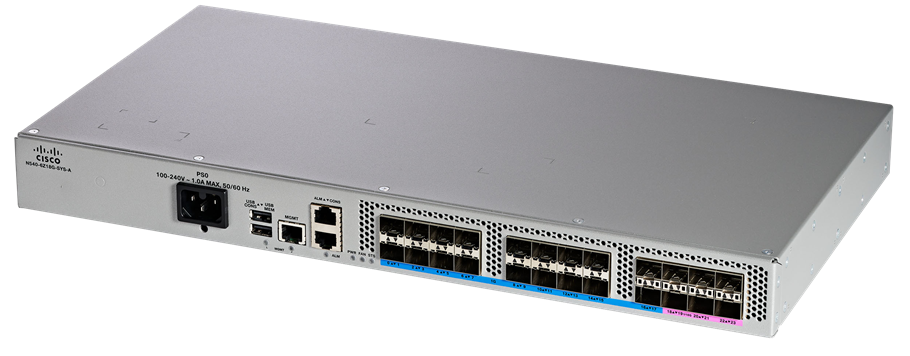

• Cisco n540-6z18g-sys-a network switch with metallic silver chassis and multiple ethernet ports for high-speed connectivity
1 1

Cisco

Cisco N540-6Z18G-SYS-A | NCS 540 Router, 18x 1G SFP + 6x 10G SFP+, AC, C-Temp

N540-6Z18G-SYS-A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The NCS 540 N540-6Z18G-SYS-A is a 1RU commercial-temperature small-density router from the Cisco Network Convergence System 540 family. It runs IOS XR and is aimed at cost-effective 4G and 5G cell-site, RAN backhaul and access and aggregation deployments, as well as fixed-wireless access, small-cell backhaul, FTTx, utilities and low-speed Ethernet rings.

This AC variant provides 18x 1GE SFP ports and 6x 1/10GE SFP+ ports with up to 125 Mpps of forwarding performance. A 4-core 2 GHz CPU, 8 GB of DRAM and 16 GB of eMMC storage support the software. It has one fixed AC power supply with a universal 90-265 V, 50-60 Hz input, and fixed redundant 2+1 fans with front-to-side airflow. The C-Temp rating covers 0 to 55 C at 300 m. The N540-6Z18G-SYS-D is the DC counterpart of this chassis.

IOS XR software is bundled, with feature use via Cisco Access Essentials or Access Advantage right-to-use or subscription licences ordered per 10G. Rackmount options for the AC variant include N540-RCKMT-19-ACA, N540-RCKMT-23-ACA and N540-RKMT-ETSI-ACA, and optics are selected from the Cisco Transceiver Module Group compatibility matrix for the NCS 540 Series.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IOS XR cell site router extending the Cisco 5G Converged SDN Transport
- Segment Routing with SR-MPLS and SRv6 data plane
- EVPN overlay with L2VPN and L3VPN, VPLS, VPWS, MPLS-TE and TI-LFA
- Class-based 3-level hierarchical QoS with deep packet buffers
- Trust Anchor security with secure boot, image signing and run-time defence
- Zero-touch provisioning with Crosswork automation, NETCONF/YANG programmability and streaming telemetry
- Low-power platform with typical consumption under 70 W
- Designed for GR-63-CORE and GR-1089-CORE (NEBS) and ETSI compliant

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis PID: N540-6Z18G-SYS-A (AC)
- Interfaces: 18x 1GE SFP and 6x 1/10GE SFP+
- Forwarding performance: up to 125 Mpps
- CPU: 4-core 2 GHz
- Memory: 8 GB DRAM
- Storage: 16 GB eMMC
- Power supply: 1 fixed AC, universal 90-265 V, 50-60 Hz
- Fans: fixed redundant 2+1
- Airflow: front to side
- Operating temperature (C-Temp): 0 to 55 C at 300 m, 0 to 50 C at 1800 m, 40 C at 4000 m
- Storage temperature: -5 to 55 C
- Operating humidity: 5-95% RH, noncondensing
- Surge rating: 1 kV common mode, 1 kV differential mode
- Dimensions: 1 RU, 445 mm wide, 232 mm deep
- Weight: 3.3 kg
- Mounting options: 19 inch, 23 inch, ETSI
- Management interfaces: USB console, USB memory, RJ45 console
- Software: Cisco IOS XR (FCS release 7.8.1)
- NEBS: designed to meet GR-3108 Class I
- Conformal coating: No

FAQs

Q: What licensing does this router use?
A: IOS XR software is bundled, and features are enabled through Cisco Access Essentials or Access Advantage right-to-use or subscription licences ordered per 10G. Confirm the required licence PIDs when specifying your deployment.

Q: How is this router powered?
A: It has one fixed AC power supply with a universal 90-265 V, 50-60 Hz input. Family power consumption is under 40 W minimum, under 70 W typical and 100 W maximum.

Q: What is the difference between N540-6Z18G-SYS-A and N540-6Z18G-SYS-D?
A: Both share the same 18x 1G SFP and 6x 1/10G SFP+ port layout. The -A uses a fixed AC power supply, while the -D uses a single fixed dual-feed DC supply rated -20 to -72 V.

Q: Which rackmount kits suit the AC variant?
A: N540-RCKMT-19-ACA covers 19 inch racks, N540-RCKMT-23-ACA covers 23 inch racks and N540-RKMT-ETSI-ACA covers ETSI racks. A cable bracket, N540-CBL-BRKT-AC, is also available.

Q: Which optics can be used in the SFP and SFP+ ports?
A: Supported optics are listed in the Cisco Transceiver Module Group compatibility matrix for the NCS 540 Series. The 6 SFP+ ports accept 1G or 10G optics, and the 18 SFP ports accept 1G optics.
