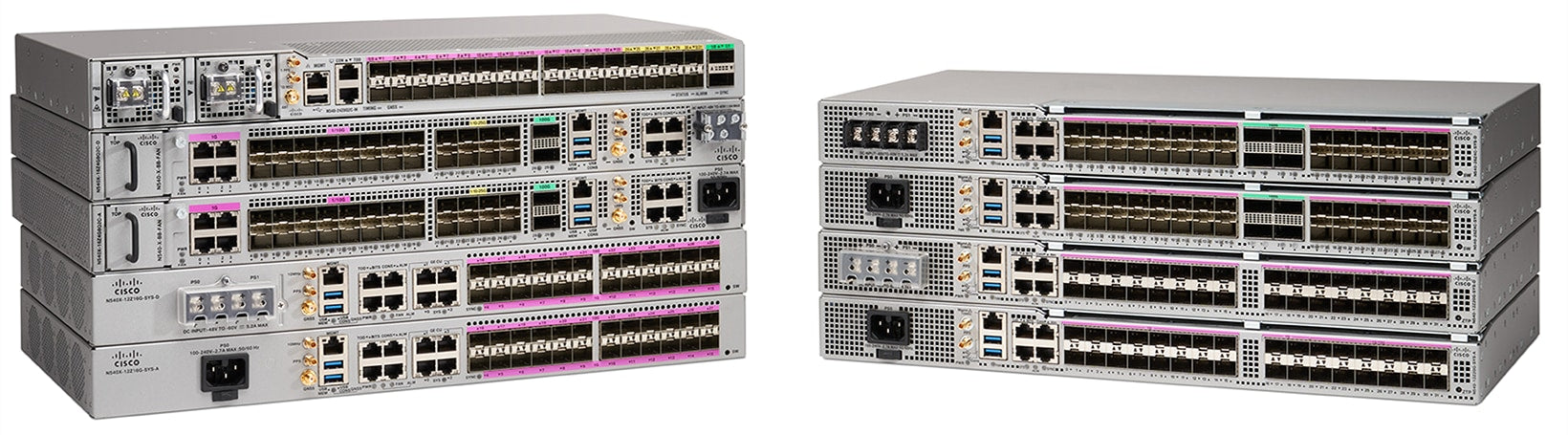

• Cisco Catalyst 3850 Switch Stack in N540-28Z4C-SYS-A-V Chassis
1 1

Cisco

Cisco N540-28Z4C-SYS-A-V | NCS 540 Router, 28x 10G SFP+, 4x 100G, AC Power

N540-28Z4C-SYS-A-V

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The NCS 540 is a 1RU fixed-chassis service provider router from the Cisco Network Convergence System 540 family. It is built for cost-effective access and aggregation, including mobile backhaul and 5G transport, and is suited to indoor or outdoor cabinet deployments where precise timing synchronisation is needed.

This AC-powered model provides 28 x 1GE/10GE ports and 4 x 40GE/100GE ports, with forwarding performance of up to 300 Mpps. It has a single fixed AC power supply accepting worldwide-ranging 90-265V AC at 50-60 Hz, and fixed redundant fans with front-to-back airflow. An 8-core 1.7GHz x86 CPU, 8GB DRAM and 32GB storage support the Cisco IOS XR software platform. SyncE and PTP timing are supported, along with BITS, 1pps, 10MHz and ToD interfaces.

The chassis runs Cisco IOS XR. Optional Access Essentials and Access Advantage licences are sold per 10G as Right-to-Use or Subscription. Compatible mounting options include rack-mount kits N540-RCKMT-19-CLA, N540-RCKMT-23-CLA and N540-RKMT-ETSI-CLA, cable bracket N540-CBL-BRKT-CL and wall mount N540-WALLMT-CLA.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Compact 1RU form factor with depth under 300mm
- Environmentally hardened for indoor or outdoor cabinet deployment
- Low power consumption, typically under 200W across the family
- Low latency forwarding, typically under 10 us
- Precise frequency and phase/time synchronisation with SyncE and PTP
- Rich Quality of Service for differentiated SLAs
- Secure boot, image signing and run-time defence
- MEF 3.0 compliant with third-party app hosting

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis PID: N540-28Z4C-SYS-A
- Interfaces: 28x 1GE/10GE, 4x 40GE/100GE
- Forwarding performance: up to 300 Mpps
- CPU: 8-core 1.7GHz x86
- Memory: 8GB DRAM
- Storage: 32GB
- Power supply: fixed single AC, 90-265V AC, 50-60 Hz
- Fans: fixed redundant fans
- Airflow: front-to-back
- Form factor: 1RU
- Dimensions (H x W x D): 1.72 in. x 17.3 in. x 9.84 in. (25 cm depth)
- Weight: 4.7 kg
- Operating temperature: -5C to +55C at 6,000 ft, +40C at 13,000 ft
- Operating humidity: 15% to 85% non-condensing
- Storage temperature: -40C to 70C
- Altitude: 0 to 13,000 ft
- Surge rating (IEC 61000-4-5): AC 2KV DM, 2KV CM
- Timing: SyncE, PTP, Class B; BITS, 1pps, 10MHz, ToD interfaces
- NEBS: GR-63-CORE and GR-1089-CORE compliant, GR-3108 Class I

FAQs

Q: Does this router need a software licence?
A: It runs Cisco IOS XR. Optional Access Essentials and Access Advantage licences are available, sold per 10G as Right-to-Use or Subscription.

Q: What power supply does the AC model use?
A: It has a single fixed AC power supply that accepts 90-265V AC at 50-60 Hz. Region-specific AC power cords are ordered separately, for example CAB-AC-AUS for Australia.

Q: What mounting options are available?
A: Rack-mount kits N540-RCKMT-19-CLA, N540-RCKMT-23-CLA and N540-RKMT-ETSI-CLA, cable bracket N540-CBL-BRKT-CL and wall mount N540-WALLMT-CLA are compatible.

Q: What is the difference between the A and D versions?
A: The -A model has a single fixed AC power supply, while the -D model has fixed dual redundant DC power supplies. Port layout and performance are the same.

Q: Which port speeds does it support?
A: The 28 SFP/SFP+ ports support 1G and 10G, and the 4 QSFP ports support 40G and 100G.
