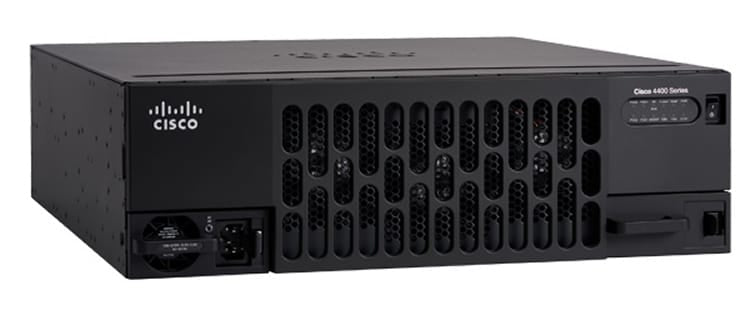

• Cisco ISR4461/K9 router with black vented switch, rear power input
1 1

Cisco

Cisco ISR4461/K9 | ISR 4461 Router, 2x10G SFP+, 4x1G, 3 NIM, 3 SM

ISR4461/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 4461 is a modular 3RU Integrated Services Router from the Cisco 4000 Family, built for branch, WAN edge and SD-WAN deployments that need high throughput. It is the highest-performance model in the ISR 4000 range and runs modular Cisco IOS XE. It suits hybrid WAN connectivity across MPLS, VPN and Internet links, as well as NEBS-compliant environments.

Onboard connectivity is 2 x 10G SFP+ ports and 4 x 10/100/1000 ports. Aggregate throughput is 1.5 Gbps by default, 3 Gbps with a Performance licence and over 7 Gbps CEF-only with a Boost licence. This SKU has an AC power supply (100 to 240 VAC autoranging, 1000 W maximum with no PoE), 8 GB flash and 4 GB data-plane DRAM, plus 3 NIM slots, 3 Enhanced Service Module slots (2 doublewide) and 1 onboard ISC slot.

It takes Cisco ISR 4000 NIMs and Enhanced Service Modules, including optional LTE and other WAN modules, and SFP/SFP+ optics in the onboard SFP-based ports. Control and services plane DRAM can be expanded to 32 GB and flash to 32 GB.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Concurrent software services at speeds up to 10 Gbps with a backplane supporting module-to-module communication at up to 10 Gbps
- Multicore architecture with an internal services plane so services and applications run without affecting the data plane
- Modular IOS XE with support for Catalyst SD-WAN, Cisco DNA licensing, NFV and open APIs
- Modular NIMs and SMs, including optional LTE and other WAN modules, for load balancing and network resiliency
- Online insertion and removal (OIR) supported on all I/O modules
- NEBS certified platform

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Onboard ports: 2 x 10G SFP+ and 4 x 10/100/1000 (RJ-45/SFP)
- NIM slots: 3
- Enhanced service module slots: 3 (2 doublewide)
- Onboard ISC slot: 1
- Aggregate throughput (default): 1.5 Gbps
- Aggregate throughput (Performance licence): 3 Gbps
- Aggregate CEF-only throughput (Boost licence): over 7 Gbps
- Flash memory: 8 GB default (32 GB max)
- Control/services plane DRAM: 8 GB default (32 GB max)
- Data plane DRAM: 4 GB
- External USB 2.0 slots (type A): 2
- USB console port: 1 (type B mini)
- Serial console and auxiliary ports: 1 each (RJ-45)
- AC input voltage: 100 to 240 VAC autoranging, 47 to 63 Hz
- Maximum power with AC power supply: 1000 W (no PoE)
- Dimensions (H x W x D): 88.9 x 438.15 x 469.9 mm
- Rack height: 3 RU, 19 in. EIA rack-mount
- Typical weight (fully loaded): 19.4 kg
- Operating temperature: 0 to 40 C
- Relative humidity: 5% to 85%
- MTBF: 480,770 hours

FAQs

Q: How do I increase throughput on the ISR 4461?
A: Default aggregate throughput is 1.5 Gbps. A Performance licence raises it to 3 Gbps and a Boost licence to over 7 Gbps for CEF-only traffic.

Q: What power options does the ISR 4461 support?
A: The platform supports internal AC, DC and PoE power supplies with redundancy. This SKU uses AC input of 100 to 240 VAC, with a maximum platform draw of 1000 W without PoE.

Q: Which modules does the ISR 4461 accept?
A: It has 3 NIM slots and 3 Enhanced Service Module slots (2 of them doublewide), plus 1 onboard ISC slot. Optional LTE and other WAN modules are supported, and SFP/SFP+ optics fit the onboard SFP-based ports.

Q: Can the memory and flash be expanded?
A: Yes. Control and services plane DRAM can be expanded to 32 GB and flash to 32 GB. The data plane DRAM is 4 GB.

Q: Does the ISR 4461 support SD-WAN?
A: Yes. It runs modular IOS XE with support for Catalyst SD-WAN, Cisco DNA licensing, NFV and open APIs.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
