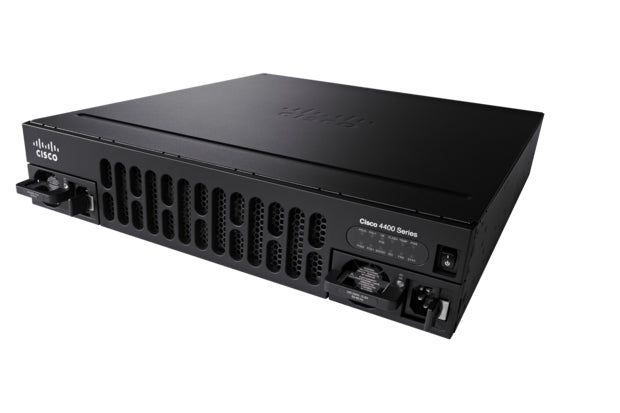

• Cisco ISR4451-X-SEC/K9 black router with silver accents and vents
1 1

Cisco

Cisco ISR4451-X-SEC/K9 | ISR 4451-X Router, 1 Gbps, Security Bundle, SEC Licence

ISR4451-X-SEC/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ISR 4451-X Security Bundle is an Integrated Services Router from the ISR 4000 series, built for the WAN edge of large enterprise branch offices. It combines routing, VPN and security services in a single 2RU platform, and suits branch-in-a-box deployments over MPLS, VPN and Internet links.

This SKU is the Security Bundle with the IOS XE Security (SEC) technology package licence, delivered as a PAK. Default aggregate throughput is 1 Gbps, which can be raised to 2 Gbps with a Performance licence, or to over 4 Gbps CEF-only with a Boost licence. The router has 4 onboard 10/100/1000 WAN/LAN ports, 3 NIM slots, 2 enhanced service-module slots (or 1 double-wide) and an onboard ISC slot. It ships with 8 GB of flash and 4 GB of control and services plane DRAM plus 2 GB of data plane DRAM, and embedded IPsec VPN hardware acceleration supports the security services enabled by the SEC licence.

It accepts NIM network interface modules and SM-X service modules, with online insertion and removal on I/O modules. Control and services plane memory can be expanded to 16 GB and flash to 32 GB. Additional technology packages and DNA subscriptions are licensed separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multicore data, control and services plane architecture running IOS XE
- Embedded IPsec VPN hardware acceleration for WAN link security and VPN services
- Performance-on-demand licence upgrade to raise throughput without a hardware change
- Modular NIM and SM-X slots with online insertion and removal on I/O modules
- Software subscription options through Cisco DNA licensing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Aggregate throughput (default): 1 Gbps
- Aggregate throughput (Performance licence): 2 Gbps
- Aggregate CEF-only throughput (Boost licence): over 4 Gbps
- Onboard WAN/LAN 10/100/1000 ports: 4
- RJ-45-based ports: 4
- SFP-based ports: 4
- NIM slots: 3
- Enhanced service-module slots: 2 (or 1 double-wide)
- Onboard ISC slot: 1
- Default flash: 8 GB, maximum 32 GB
- Control/services plane DRAM: 4 GB default, 16 GB maximum
- Data plane DRAM: 2 GB
- USB 2.0 type A ports: 2
- Console ports: USB mini-B and RJ45 serial, plus RJ45 auxiliary
- Power supply options: internal AC, DC and PoE
- AC input: 100 to 240 VAC, 47 to 63 Hz
- Typical power (no modules): 158 W
- Maximum power, AC supply: 450 W (no PoE)
- Dimensions (H x W x D): 88.9 x 438.15 x 469.9 mm
- Rack height: 2RU, 19-inch rack mount
- Operating temperature: 0 to 40 C
- Airflow: I/O side to bezel side

FAQs

Q: What licence is included with this bundle?
A: This SKU includes the IOS XE Security (SEC) technology package licence, delivered as a PAK. Other technology packages such as Unified Communications, Application Experience and Data are licensed separately.

Q: Can the throughput be increased?
A: Yes. Default aggregate throughput is 1 Gbps. A Performance licence raises it to 2 Gbps, and a Boost licence raises CEF-only throughput to over 4 Gbps, with no hardware change.

Q: What modules does the ISR 4451-X support?
A: It supports NIM network interface modules in 3 slots, SM-X service modules in 2 slots or 1 double-wide slot, and has an onboard ISC slot.

Q: Can memory and flash be upgraded?
A: Yes. Control and services plane DRAM can be expanded to 16 GB and flash to 32 GB.

Q: What power supply options are available?
A: The platform supports internal AC, DC and PoE power supplies. The AC supply accepts 100 to 240 VAC with a maximum draw of 450 W without PoE.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
