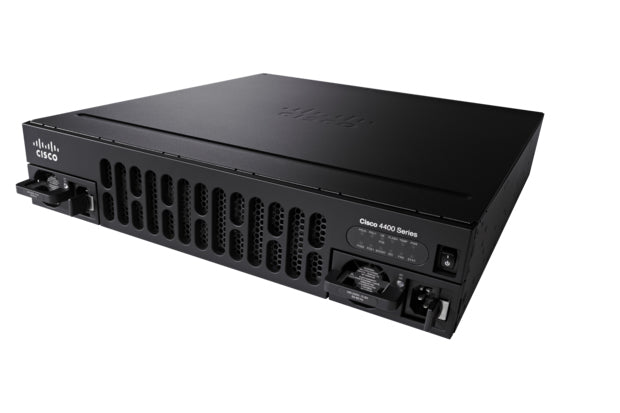

• Cisco ISR4451-X/K9 router with 4x1G RJ45 ports and silver accents
1 1

Cisco

Cisco ISR4451-X/K9 | ISR 4451-X Router, 4x GE, 3 NIM, 2 SM, Base Licence

ISR4451-X/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 4451-X is a modular branch-office router from the Cisco 4000 family of Integrated Services Routers. It runs Cisco IOS XE on a multicore architecture with separate control, data and services planes, and it supports the embedded Cisco Catalyst SD-WAN solution. It suits mid-to-large branch WAN edge deployments that need secure routing, voice and unified communications, and application-aware services.

On the hardware side it provides 4 onboard 10/100/1000 ports, 3 NIM slots, 2 enhanced service module slots (or 1 double-wide slot) and 1 onboard ISC slot for PVDM4 DSP modules. This SKU is the Base licence variant with 8 GB flash and 4 GB control plane DRAM, plus 2 GB of data plane DRAM. Default aggregate throughput is 1 Gbps, which can be raised to 2 Gbps with a Performance licence or to over 4 Gbps (CEF-only) with a Boost licence. All I/O modules support online insertion and removal.

DRAM expands to 16 GB on the control and services plane and flash expands to 32 GB. The chassis is 2RU and uses an internal power supply with AC, DC and PoE options. Security features include secure boot, code signing and hardware authentication.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multicore architecture with separate control, data and services planes running modular Cisco IOS XE
- Embedded Cisco Catalyst SD-WAN support for business-class internet WAN connectivity
- Throughput upgradable by licence with no hardware change
- Modular LAN/WAN connectivity through NIM, SM and ISC slots, all with online insertion and removal
- ISC slot supports PVDM4 DSP modules for high-density voice
- Secure boot, code signing and hardware authentication
- Security services including DMVPN, zone-based firewall, Snort IPS and Umbrella Branch
- Optional ISR-AX Application Experience technology package

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Onboard ports: 4 x 10/100/1000 (RJ-45 and SFP-based ports are paired)
- NIM slots: 3
- Enhanced service module slots: 2 (1 double-wide if no single-wide SM-X installed)
- Onboard ISC slot: 1
- Aggregate throughput (default): 1 Gbps
- Aggregate throughput (Performance licence): 2 Gbps
- Aggregate CEF-only throughput (Boost licence): over 4 Gbps
- Default flash: 8 GB (32 GB maximum)
- Control/services plane DRAM: 4 GB default (16 GB maximum)
- Data plane DRAM: 2 GB
- USB 2.0 Type-A ports: 2
- Console ports: USB mini-B and RJ-45 serial, plus RJ-45 auxiliary
- Power supply: internal AC, DC and PoE options
- AC input: 100 to 240 VAC, 47 to 63 Hz
- Typical power (no modules): 158 W
- Maximum power with AC supply: 450 W (no PoE)
- Form factor: 2RU, 19-inch rack-mount
- Dimensions (H x W x D): 88.9 x 438.15 x 469.9 mm
- Weight with 450 W AC supply, no modules: 13.1 kg
- Operating temperature: 0 to 40 C
- Airflow: I/O side to bezel side
- MTBF: 480,770 hours

FAQs

Q: What licence does this SKU include, and can throughput be increased?
A: This SKU is the Base licence variant running the Cisco IOS XE image, with 1 Gbps default aggregate throughput. A Performance licence raises this to 2 Gbps and a Boost licence to over 4 Gbps (CEF-only). Security, Application Experience and Unified Communications packages are separate licences.

Q: Which modules does the ISR 4451-X support?
A: It has 3 NIM slots, 2 enhanced service module slots (or 1 double-wide) and 1 onboard ISC slot for PVDM4 DSP modules. All I/O modules support online insertion and removal.

Q: What power options and PoE capacity are available?
A: It uses an internal power supply in AC (100 to 240 VAC), DC (48 to 60 V) or PoE versions. The PoE power supply provides up to 500 W of endpoint PoE with redundancy, or 950 W with PoE boost and no redundancy.

Q: Can the memory and flash be expanded?
A: Yes. Control and services plane DRAM expands from 4 GB to 16 GB, and flash storage expands from 8 GB to 32 GB. Data plane DRAM is fixed at 2 GB.

Q: Does it support SD-WAN?
A: Yes. It supports the embedded Cisco Catalyst SD-WAN solution, with Cisco Catalyst SD-WAN licensing sold separately.
