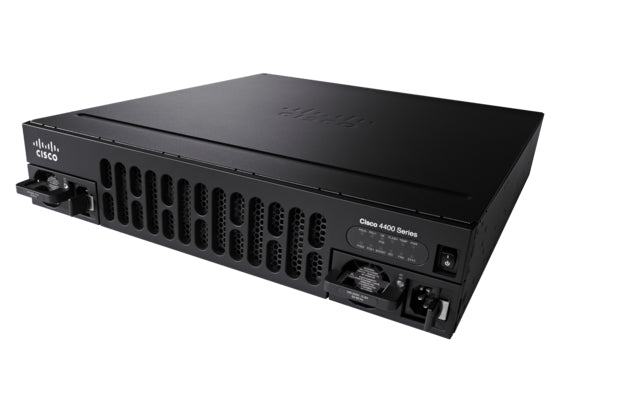

Cisco ISR4451-X-AXV/K9 | ISR 4451-X Router, AXV Bundle, PVDM4-64, CUBE-25

ISR4451-X-AXV/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 4451-X is a modular branch-office router in the Cisco ISR 4000 family, built for sites that need a WAN edge, security and voice gateway in one 2RU chassis. This AXV bundle suits SD-WAN or WAN edge deployments, SIP trunk gateways and session border controller roles using CUBE, SRST, and application-aware routing with integrated security.

The router runs a single universal IOS XE image on a multicore CPU with separated control and data planes. It has 4 onboard 10/100/1000 WAN/LAN ports, 3 NIM slots, 2 enhanced service-module slots, 1 double-wide service-module slot and an onboard ISC slot, all with online insertion and removal. Aggregate throughput is 1 Gbps by default, 2 Gbps with the Performance licence and over 4 Gbps with the Boost licence (CEF only). Memory is 4 GB control and services plane DRAM (up to 16 GB), 2 GB data plane DRAM and 8 GB flash (up to 32 GB). This SKU is the AXV bundle with a PVDM4-64 voice DSP module and CUBE-25 session licences, combining the Application Experience, security and UC licence packages.

The chassis accepts NIMs, SM-X service modules, an ISC card and PVDM4 DSP modules. Internal power supplies are available in AC, DC and PoE options, and the 2RU chassis fits a 19-inch rack, with a 23-inch kit optional.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multicore CPU architecture running modular Cisco IOS XE with separated control and data planes
- Single universal software image with performance-on-demand licensing
- Modular LAN and WAN connectivity through NIM, SM and ISC slots with online insertion and removal
- Native support for PVDM4 high-density voice DSP modules
- Integrated voice and collaboration options including CUBE session border controller, SRST and CUE/CME
- Security features including DMVPN, zone-based firewall, IPS (Snort) and Umbrella Branch
- ISR-AX Application Experience bundle with advanced routing and network monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Series: Cisco ISR 4400 (ISR 4451-X)
- Bundle: AXV, PVDM4-64 voice DSP module, CUBE-25 session licences
- Onboard ports: 4 x 10/100/1000 WAN/LAN (4 RJ-45 and 4 SFP-based, shared)
- NIM slots: 3
- Enhanced service-module slots: 2
- Double-wide service-module slots: 1
- Onboard ISC slot: 1
- Aggregate throughput: 1 Gbps default, 2 Gbps with Performance licence, over 4 Gbps with Boost licence (CEF only)
- Control and services plane DRAM: 4 GB default, up to 16 GB
- Data plane DRAM: 2 GB
- Flash memory: 8 GB default, up to 32 GB
- USB: 2 x USB 2.0 Type A
- Console: USB mini Type B and RJ45 serial, plus RJ45 serial auxiliary port
- Power supply options: Internal AC, DC and PoE
- AC input: 100 to 240 VAC autoranging, 47 to 63 Hz
- Typical power with no modules: 158 W
- Maximum power with AC supply: 450 W (no PoE)
- Maximum endpoint PoE power: 500 W with optional redundancy, 950 W with PoE boost
- Dimensions (H x W x D): 88.9 x 438.15 x 469.9 mm
- Rack height: 2 RU, 19-inch rack-mount kit, 23-inch optional
- Weight: 13.1 kg with 450 W AC supply and no modules
- Airflow: I/O side to bezel side
- Operating temperature: 0 to 40 C
- Operating humidity: 5% to 85%
- MTBF: 480,770 hours

FAQs

Q: What licensing does the AXV bundle provide?
A: The AXV bundle combines the Application Experience, security and UC licence packages with CUBE-25 session licences. The platform runs a single universal IOS XE image, with throughput set by the Performance and Boost licences.

Q: What throughput can the ISR 4451-X deliver?
A: Aggregate throughput is 1 Gbps by default and 2 Gbps with the Performance licence. With the Boost licence it exceeds 4 Gbps for CEF-only traffic.

Q: What power supply options does it support?
A: It uses an internal power supply in AC, DC or PoE variants. AC input is 100 to 240 VAC at 47 to 63 Hz, and the PoE supplies provide up to 500 W of endpoint PoE, or 950 W with PoE boost.

Q: Which modules does it work with?
A: The chassis supports NIMs, SM-X service modules, an ISC card and PVDM4 DSP modules. All I/O modules support online insertion and removal.

Q: What does the PVDM4-64 and CUBE-25 in this SKU mean for voice?
A: The PVDM4-64 is a high-density voice DSP module, and CUBE-25 provides session licences for the Cisco Unified Border Element session border controller. Together they suit SIP trunk gateway and voice termination roles at the branch.
