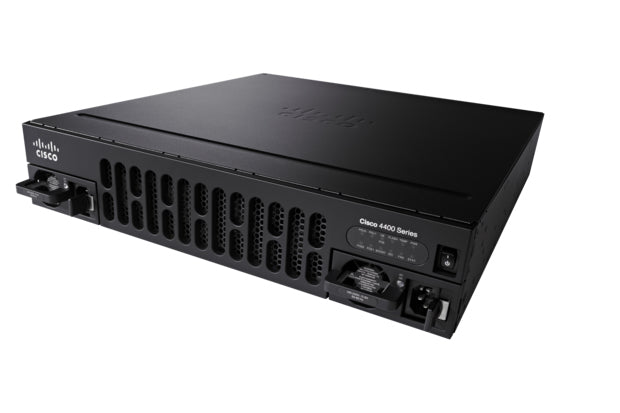

• Cisco ISR4451-DNA black router with silver accents and ventilation
1 1

Cisco

Cisco ISR4451-DNA | ISR 4451 Router, 4x 1G, 3x NIM, 2x SM, DNA Support

ISR4451-DNA

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 4451 is a modular branch-office router in the Cisco 4000 Family Integrated Services Routers. It suits enterprise branch sites that need a single WAN edge platform for Catalyst SD-WAN, MPLS, VPN and Internet connectivity, with integrated security and converged services.

This DNA Support SKU is supplied for the Cisco DNA software subscription model. Onboard connectivity is 4 Gigabit Ethernet WAN/LAN ports on RJ-45, alongside 4 SFP-based ports. Expansion is handled by 3 NIM slots and 2 enhanced service-module slots, or 1 doublewide slot. Aggregate throughput is licence-dependent: 1 Gbps by default, 2 Gbps with the Performance licence, and over 4 Gbps CEF-only with the Boost licence.

The 2RU chassis has dual internal power supply bays that accept AC, DC or PoE supplies, with typical draw of 158 W with no modules. Memory starts at 2 GB data plane DRAM and 4 GB control and services plane DRAM, upgradable to 16 GB, with 8 GB of flash upgradable to 32 GB. All I/O modules support online insertion and removal.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Cisco Catalyst SD-WAN software features on a converged branch platform
- Modular network interfaces with online insertion and removal for upgrades without network disruption
- Dual internal power supply bays for backup power
- Optional PoE power supply to deliver additional power to endpoints
- Services plane for running integrated compute, security and other services in a branch-in-a-box design
- Software subscription through Cisco DNA licensing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Onboard ports: 4 x 10/100/1000 WAN/LAN (RJ-45)
- SFP-based ports: 4
- NIM slots: 3
- Enhanced service-module slots: 2, or 1 doublewide slot
- Aggregate throughput (default): 1 Gbps
- Aggregate throughput (Performance licence): 2 Gbps
- Aggregate CEF-only throughput (Boost licence): over 4 Gbps
- Data plane DRAM: 2 GB
- Control and services plane DRAM: 4 GB default, up to 16 GB
- Flash memory: 8 GB default, up to 32 GB
- USB 2.0 ports (type A): 2
- Console ports: 1 USB mini-B, 1 RJ-45 serial
- Auxiliary port: 1 RJ-45 serial
- Power supply options: internal AC, DC and PoE, redundant
- Typical power (no modules): 158 W
- Maximum power, AC supply: 450 W (no PoE)
- Maximum endpoint PoE power: 500 W with redundancy, 950 W with PoE boost
- Dimensions (H x W x D): 88.9 x 438.15 x 469.9 mm
- Rack height: 2 RU

FAQs

Q: What does the DNA Support SKU mean for licensing?
A: This SKU is supplied for the Cisco DNA software subscription model. Throughput on the ISR 4451 is licence-dependent, with 1 Gbps by default, 2 Gbps with the Performance licence and over 4 Gbps CEF-only with the Boost licence.

Q: What power supply options does the ISR 4451 support?
A: It has dual internal power supply bays that accept AC, DC or PoE supplies, with redundancy available. A PoE supply can provide up to 500 W of endpoint PoE with redundancy, or 950 W with PoE boost and no redundancy.

Q: What expansion modules does it work with?
A: It has 3 NIM slots and 2 enhanced service-module slots, or 1 doublewide service-module slot. All I/O modules support online insertion and removal.

Q: Can the memory and flash be upgraded?
A: Yes. Control and services plane DRAM can be increased from 4 GB to 16 GB, and flash from 8 GB to 32 GB. Data plane DRAM is fixed at 2 GB.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

Download product manual
