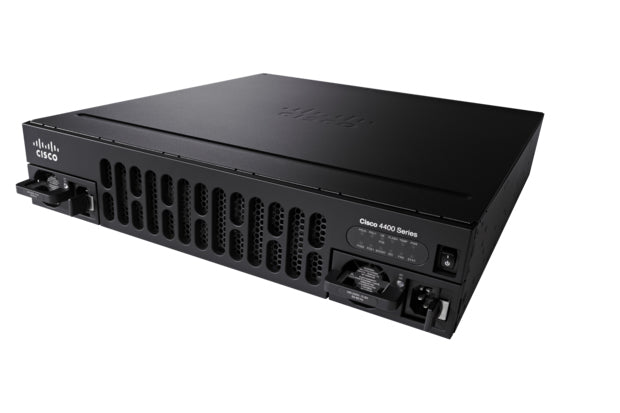

• Black Cisco ISR4431-V/K9 router with silver accents and vents
1 1

Cisco

Cisco ISR4431-V/K9 | ISR 4431 Router, UC Bundle, PVDM4-64, UC Licence

ISR4431-V/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 4431 is a modular branch-office integrated services router from the Cisco 4000 Series ISR family. This UC bundle pairs the universalk9 image with a Unified Communications technology licence and a PVDM4-64 voice DSP module, so it suits a branch voice gateway, an SRST or CME site, or Cisco Unified Border Element duty for SIP trunking.

The router provides four onboard 10/100/1000 WAN/LAN ports, with each port accepting RJ-45 or SFP. It has three NIM slots and one onboard ISC slot that holds the PVDM4-64. Aggregate throughput is 500 Mbps by default and can be raised to 1 Gbps with the FL-44-PERF-K9 performance licence. Memory is 2 GB data-plane DRAM and 4 GB control and services-plane DRAM, upgradable to 16 GB, with 8 GB of flash upgradable to 32 GB. It is a 1RU unit with an internal AC power supply, a second supply can be added for redundancy, and AC, DC and PoE supply options are available.

The three NIM slots take Cisco 4000 Series NIMs covering T1/E1 voice and WAN, serial, xDSL, async, Gigabit Ethernet WAN, LTE and SSD or HDD modules. The onboard SFP ports take Cisco 1G SFPs. Security, Application Experience and boost licences are not part of this UC bundle.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs modular Cisco IOS XE with a single universal image and performance-on-demand licensing
- Multicore architecture with separate control, data and services planes
- Supports Cisco Catalyst SD-WAN features
- ISC slot supports high-density PVDM4 voice DSP modules
- Cisco Unified SRST, Unified Communications Express and Cisco Unified Border Element (CUBE) support
- Analog and digital voice gateway for VoIP over SIP trunks
- Modular NIMs with online insertion and removal
- Embedded IPsec VPN hardware acceleration, enabled with a security licence

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Onboard ports: 4 x 10/100/1000 WAN/LAN (4 RJ-45 and 4 SFP, each port accepts RJ-45 or SFP)
- NIM slots: 3
- Onboard ISC slot: 1 (PVDM4-64 DSP module)
- SM-X service-module slots: 0
- Aggregate throughput (default): 500 Mbps
- Aggregate throughput (performance licence): 1 Gbps
- Data-plane DRAM: 2 GB
- Control/services-plane DRAM: 4 GB default, 16 GB maximum
- Flash memory: 8 GB default, 32 GB maximum
- USB 2.0 type A slots: 2
- Console ports: USB mini type B and RJ-45 serial
- Auxiliary port: 1 x RJ-45 serial
- Power supply options: internal AC, DC and PoE
- AC input: 100 to 240 VAC, 47 to 63 Hz
- Typical power with no modules: 65 W
- Maximum power with AC supply and no PoE: 250 W
- Form factor: 1RU, 19 in rack-mount, wall-mount supported
- Dimensions (H x W x D): 43.9 x 438.15 x 507.2 mm
- Weight with AC supply and no modules: 8.4 kg
- Airflow: I/O side to bezel side
- Operating temperature: 0 to 40 C
- Operating relative humidity: 5% to 85%
- MTBF: 512,970 hours

FAQs

Q: What licensing does the ISR4431-V/K9 include?
A: It ships with the universalk9 image, a Unified Communications technology licence and a PVDM4-64 DSP module. The Security, Application Experience and boost licences are not included.

Q: How do I increase the throughput beyond 500 Mbps?
A: Aggregate throughput defaults to 500 Mbps. Applying the FL-44-PERF-K9 performance licence raises it to 1 Gbps with no hardware change.

Q: What power supplies does the ISR 4431 support?
A: The default configuration uses an internal AC supply (PWR-4430-AC, 250 W) taking 100 to 240 VAC. A second internal supply can be added for redundancy, and DC and PoE supply options are available.

Q: What modules and optics does it work with?
A: The three NIM slots take Cisco 4000 Series NIMs for T1/E1, serial, xDSL, async, Gigabit Ethernet WAN, LTE and SSD or HDD storage. The ISC slot holds PVDM4 DSP modules and the onboard SFP ports take Cisco 1G SFPs. This model has no SM-X slots.

Q: What is the difference between this SKU and the standard ISR 4431?
A: The -V/K9 SKU is the Unified Communications bundle. It adds the UC technology licence and the PVDM4-64 voice DSP module, which makes it ready for voice gateway, SRST and CME use.
