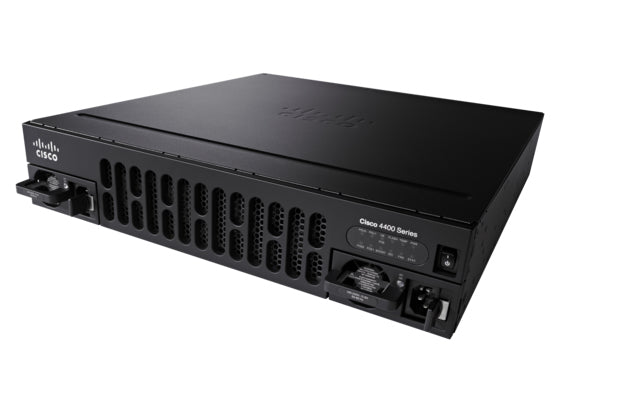

• Black Cisco CX60 router with silver accents in ISR 4431 Security Bundle
1 1

Cisco

Cisco ISR4431-SEC-K9 | ISR 4431 Router, 4x SFP, 3x NIM, SEC Bundle, 500Mbps

ISR4431-SEC-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 4431 is a 1RU branch-office Integrated Services Router from the Cisco 4000 Family, running modular Cisco IOS XE. It suits enterprise branch WAN edge deployments that need secure site-to-site VPN, SD-WAN, an integrated voice and UC gateway, and converged branch infrastructure.

This SKU is the SEC bundle, which includes the Cisco IOS XE Security licence and enables the IPsec VPN and security feature set backed by on-board hardware crypto acceleration. Default aggregate throughput is 500 Mbps, with a Performance licence option for 1 Gbps and a Boost licence option for over 4 Gbps CEF-only. Connectivity comes from 4 x 10/100/1000 RJ-45 ports and 4 SFP-based ports, with 3 NIM slots and 1 onboard ISC slot for WAN, voice and compute modules. It ships with 4 GB control and services plane DRAM (expandable to 16 GB), 2 GB data plane DRAM and 8 GB flash (expandable to 32 GB).

Internal AC, DC or PoE power supply options are available, with redundant supply support. The PoE supply provides up to 250 W of endpoint PoE, or 500 W with PoE boost and no redundancy. The SFP ports accept Cisco SFP optics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs modular Cisco IOS XE with a single universal software image and performance-on-demand licensing
- Supports Cisco Catalyst SD-WAN software features
- Embedded IPsec VPN hardware acceleration for WAN link security and VPN services
- Security features include DMVPN, zone-based firewall, Snort-based intrusion prevention and Umbrella Branch integration
- Secure boot with hardware-based bootloader authentication
- Modular NIM slots and an onboard ISC slot for flexible WAN, voice and compute connectivity
- Performance upgrade through a remote licence with no hardware change
- Integrated UC capabilities including Cisco Unified Border Element (CUBE) and Unified Communications Express

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Bundle: SEC (Cisco IOS XE Security licence)
- Aggregate throughput (default): 500 Mbps
- Aggregate throughput (Performance licence): 1 Gbps
- Aggregate CEF-only throughput (Boost licence): Over 4 Gbps
- Onboard 10/100/1000 WAN or LAN ports: 4 (RJ-45)
- SFP-based ports: 4
- NIM slots: 3
- Enhanced service-module slots: 0
- Onboard ISC slot: 1
- Control/services plane DRAM: 4 GB default, 16 GB maximum
- Data plane DRAM: 2 GB
- Flash memory: 8 GB default, 32 GB maximum
- USB 2.0 type A ports: 2
- Console ports: USB type B mini and RJ-45 serial
- Power supply options: Internal AC, DC and PoE, with redundancy
- AC input: 100 to 240 VAC autoranging, 47 to 63 Hz
- DC input: 48 to 60 V, 12 A maximum
- Typical power (no modules): 48 W
- Maximum endpoint PoE: 250 W with optional redundancy
- Dimensions (H x W x D): 43.9 x 438.15 x 507.2 mm
- Rack height: 1 RU, 19-inch rack-mount, wall-mount supported
- Operating temperature: 0 to 40 C
- Operating relative humidity: 5% to 85%
- MTBF: 512,970 hours

FAQs

Q: What licence does the SEC bundle include?
A: It includes the Cisco IOS XE Security (SEC) feature licence, which enables the IPsec VPN and security feature set supported by the on-board hardware crypto acceleration.

Q: Can the throughput be increased beyond 500 Mbps?
A: Yes. A Performance licence raises aggregate throughput to 1 Gbps, and a Boost licence provides over 4 Gbps CEF-only. Both are applied by licence with no hardware change.

Q: What power supply options does the ISR 4431 support?
A: It supports internal AC (100 to 240 VAC), DC (48 to 60 V) and PoE power supplies, with redundant supply support. The PoE supply provides up to 250 W of endpoint PoE, or 500 W with PoE boost and no redundancy.

Q: What expansion options does it offer?
A: It has 3 NIM slots and 1 onboard ISC slot, but no SM-X service-module slots. Memory can be expanded to 16 GB control and services plane DRAM and 32 GB flash.

Q: How does the SEC bundle differ from other ISR 4431 bundles?
A: The SEC bundle adds the Security licence on top of the base platform. Other software bundles in the family, such as AX (Application Experience), carry a different technology package.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

Download product manual
