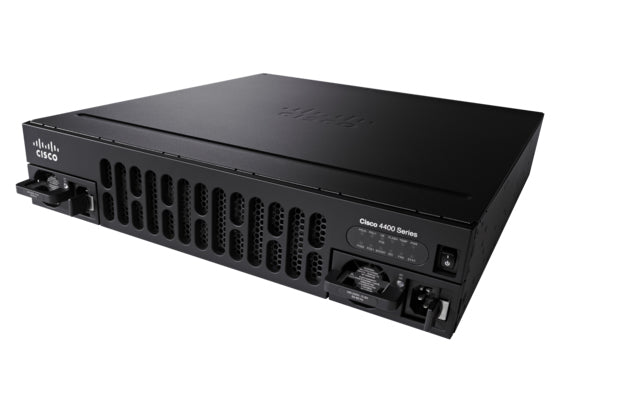

• Cisco ISR4431/K9 black router with silver accents, 4x1GbE ports
1 1

Cisco

Cisco ISR4431/K9 | ISR 4431 Router, 4GE, 3x NIM, IP Base, 8GB Flash

ISR4431/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 4431 is a 1RU modular branch-office WAN router from Cisco's ISR 4000 family. It suits medium-sized branch and regional offices that need a secure WAN edge, with the platform positioned for SD-WAN, encryption, traffic management, WAN optimisation and voice.

This SKU is the base chassis with the IP Base feature set and four onboard 10/100/1000 ports. It has three NIM slots and one onboard ISC slot, with online insertion and removal for I/O modules, and no SM-X service-module slots. Default aggregate throughput is 500 Mbps, which can be raised to 1 Gbps with the FL-44-PERF-K9 performance licence. The FL-44-BOOST-K9 licence lifts CEF-only throughput above 4 Gbps. Memory is 8 GB of flash (expandable to 32 GB), 2 GB of data-plane DRAM and 4 GB of control-plane DRAM (expandable to 16 GB).

Power comes from an internal AC, DC or PoE supply, with a redundant supply option. Typical draw with no modules is 65 W. The router supports Cisco Catalyst SD-WAN features through IOS XE, Smart Licensing from IOS-XE 16.6.1, and optional Cisco DNA Essentials and Advantage subscriptions.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular design with three NIM slots and an onboard ISC slot
- Online insertion and removal (OIR) of I/O modules
- Supports Cisco Catalyst SD-WAN features via IOS XE
- Pay-as-you-grow performance licensing raises throughput without a hardware change
- Optional PoE power supply, with PoE boost mode up to 1000 W platform power
- Redundant internal power supply option
- Smart Licensing supported from IOS-XE 16.6.1
- Optional SEC, Voice, AX, VSEC and AXV feature bundles and Cisco DNA subscriptions

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Onboard WAN/LAN ports: 4 x 10/100/1000
- Port options: 4 RJ-45-based and 4 SFP-based
- NIM slots: 3
- Onboard ISC slot: 1
- SM-X service-module slots: 0
- OIR for all I/O modules: Yes
- Aggregate throughput (default): 500 Mbps
- Aggregate throughput (performance licence): 1 Gbps
- Aggregate CEF-only throughput (boost licence): over 4 Gbps
- Default flash: 8 GB (maximum 32 GB)
- Data-plane DRAM: 2 GB (maximum 2 GB)
- Control/services-plane DRAM: 4 GB default (maximum 16 GB)
- USB 2.0 Type A ports: 2
- Console: USB mini-B and RJ-45 serial, plus RJ-45 AUX
- Power supply options: internal AC, DC and PoE, with redundancy option
- AC input: 100 to 240 VAC, 47 to 63 Hz
- DC input: 48 to 60 V, 12 A max
- Typical power (no modules): 65 W
- Maximum power: 250 W AC, 437 W DC (no PoE)
- Dimensions (H x W x D): 43.9 x 438.15 x 507.2 mm
- Rack height: 1 RU, 19-inch EIA mount
- Weight with AC PS (no modules): 8.4 kg
- Operating temperature: 0 to 40 C
- Operating relative humidity: 5% to 85%
- MTBF: 512,970 hours

FAQs

Q: Which licence does this router ship with?
A: ISR4431/K9 uses the IP Base feature set with 500 Mbps default aggregate throughput. Optional feature bundles (SEC, Voice, AX, VSEC, AXV) and Cisco DNA Essentials or Advantage subscriptions are available separately.

Q: Can the throughput be increased beyond 500 Mbps?
A: Yes. The FL-44-PERF-K9 performance licence raises aggregate throughput to 1 Gbps, and the FL-44-BOOST-K9 boost licence provides over 4 Gbps of CEF-only throughput. No hardware change is needed.

Q: What modules does it accept?
A: It has three NIM slots and one onboard ISC slot for Cisco NIMs. It has no SM-X service-module slots, so SM-X modules are not supported.

Q: What power supply options are available?
A: The ISR 4431 takes internal AC, DC or PoE power supplies, and a redundant supply is supported. AC input is 100 to 240 VAC. The optional PoE supply provides 250 W of endpoint PoE with redundancy, or 500 W with PoE boost and no redundancy.

Q: Can the memory be upgraded?
A: Flash can be expanded from 8 GB to 32 GB, and control-plane DRAM from 4 GB to 16 GB. Data-plane DRAM is fixed at 2 GB.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

Download product manual
