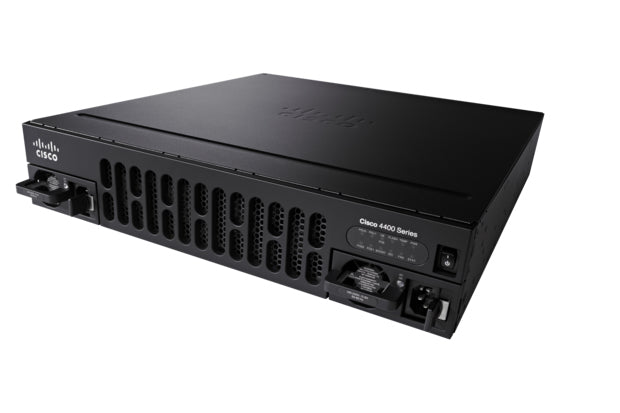

• Cisco ISR4431-DNA black router with silver accents and ventilation grates
1 1

Cisco

Cisco ISR4431-DNA | ISR 4431 Router, 3x NIM, SD-WAN, DNA Subscription

ISR4431-DNA

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ISR 4431 is a modular 1RU branch-office WAN router from the ISR 4000 family, built for branch-in-a-box deployments that combine routing, integrated services and Catalyst SD-WAN across MPLS, VPN and Internet links. This SKU is the DNA subscription bundle.

It provides four onboard 10/100/1000 WAN/LAN ports, with RJ-45 and SFP-based options, three NIM slots, one onboard ISC slot and OIR support for all I/O modules. Default aggregate throughput is 500 Mbps, which can be raised to 1 Gbps with the Performance licence, and the Boost licence lifts CEF-only throughput to over 4 Gbps through software alone. Memory ships as 8 GB flash (up to 32 GB) with 4 GB control and services plane DRAM (up to 16 GB) and 2 GB data plane DRAM.

Power comes from an internal AC, DC or PoE supply with redundant supply support, and the optional PoE supply can power endpoints such as cellular gateways. The router runs Cisco IOS XE, is managed through Catalyst SD-WAN and Catalyst Center, and takes optional LTE through NIM or external cellular modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Catalyst SD-WAN software features on a converged branch infrastructure
- Modular NIM interfaces for diverse WAN connections, load balancing and resiliency
- Redundant internal power supply support for backup
- Optional PoE power supply to power endpoints
- Up to 30 W PoE+ on two front-panel GE interfaces to power devices such as cellular gateways
- Dedicated Gigabit Ethernet management port
- Performance and Boost licences scale throughput through software only
- OIR support on all I/O modules

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Onboard WAN/LAN ports: 4 x 10/100/1000
- RJ-45-based ports: 4
- SFP-based ports: 4
- NIM slots: 3
- Enhanced service-module slots: 0
- Onboard ISC slot: 1
- Aggregate throughput (default): 500 Mbps
- Aggregate throughput (Performance licence): 1 Gbps
- Aggregate CEF-only throughput (Boost licence): over 4 Gbps
- Flash memory: 8 GB default, 32 GB maximum
- Control/services plane DRAM: 4 GB default, 16 GB maximum
- Data plane DRAM: 2 GB
- USB 2.0 ports (type A): 2
- Console ports: USB mini type-B and RJ-45 serial
- Power supply options: internal AC, DC and PoE, with redundancy
- AC input: 100 to 240 VAC autoranging, 47 to 63 Hz
- Typical power with no modules: 65 W
- Maximum power: 250 W with AC (no PoE), 437 W with DC (no PoE)
- Dimensions (H x W x D): 43.9 x 438.15 x 507.2 mm
- Rack height: 1 RU, 19 in. brackets included
- Operating temperature: 0 to 40 C
- MTBF: 512,970 hours

FAQs

Q: What does the DNA subscription provide on this router?
A: It runs in Autonomous mode with a perpetual licence for regular routing, or in Controller mode for Catalyst SD-WAN deployments, which is term-based and requires renewal. DNA Essentials or DNA Advantage supports Catalyst Center.

Q: What throughput does it deliver?
A: Default aggregate throughput is 500 Mbps. The Performance licence raises this to 1 Gbps, and the Boost licence delivers over 4 Gbps of CEF-only throughput, all through software.

Q: What modules does the ISR 4431 accept?
A: It has three NIM slots and no SM-X service-module slots. It also has one onboard ISC slot and supports OIR for all I/O modules.

Q: What power options are available?
A: It takes an internal AC, DC or PoE power supply, with redundant supply support. The optional PoE supply provides up to 250 W of endpoint PoE with redundancy, or 500 W with PoE boost and no redundancy.

Q: Can it support LTE?
A: Yes. Optional LTE is added through NIM or external cellular modules, and the front-panel GE ports can supply PoE+ to an external cellular gateway.
