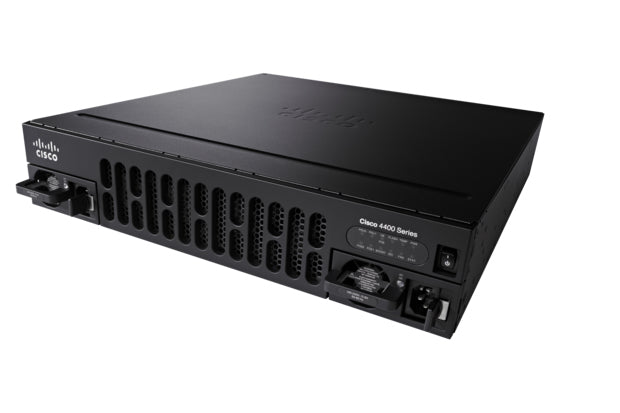

• Black Cisco CX60 router with silver accents, ventilation grates, ISR4431-AX/K9 Gigabit model
1 1

Cisco

Cisco ISR4431-AX/K9 | ISR 4431 Router, 3x NIM, AX Bundle APP and SEC

ISR4431-AX/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 4431 is a modular branch-office WAN router from the Cisco 4000 Series Integrated Services Routers, running IOS XE. This AX bundle suits distributed enterprise branches that need application-aware routing, monitoring and secure connectivity to data centres and public clouds over MPLS, VPN and Internet links.

It provides 4 x 10/100/1000 RJ-45 WAN/LAN ports plus 4 x SFP-based ports, three NIM slots with online insertion and removal, and one onboard ISC slot. Throughput is licence-governed: 500 Mbps by default, 1 Gbps with the Performance licence and over 4 Gbps (CEF only) with the Boost licence. Default memory is 4 GB control/services plane DRAM (up to 16 GB) and 2 GB data plane DRAM, with 8 GB flash expandable to 32 GB. The AX bundle includes the Application Experience (APP) and Security (SEC) technology package licences on top of IP Base, and this SKU carries no UC or voice licensing.

The 1RU, rack-mountable chassis supports internal AC, DC or PoE power supply options with redundancy. It works with the Cisco 4000 Series NIM modules and PVDM options.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multicore processors with a Flow Processor data plane for high-speed WAN connections as services are added
- Embedded IPsec VPN hardware acceleration, enabled with the Security licence
- Modular NIM slots with online insertion and removal
- Single universal IOS XE image with features and performance activated by licence
- Application Experience bundle with advanced routing and network monitoring
- Security features including DMVPN, zone-based firewall, Snort IPS and Umbrella Branch support
- Support for Cisco Catalyst SD-WAN features
- Programmability and automation support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Onboard WAN/LAN ports: 4 x 10/100/1000 RJ-45
- SFP-based ports: 4
- NIM slots: 3
- Enhanced service-module slots: 0
- Onboard ISC slot: 1
- Aggregate throughput (default): 500 Mbps
- Aggregate throughput (Performance licence): 1 Gbps
- Aggregate CEF-only throughput (Boost licence): over 4 Gbps
- Data plane DRAM: 2 GB
- Control/services plane DRAM: 4 GB default, 16 GB maximum
- Flash memory: 8 GB default, 32 GB maximum
- USB 2.0 ports (type A): 2
- Console ports: USB mini-B and RJ-45 serial
- Auxiliary port: 1 x RJ-45
- Power supply options: internal AC, DC and PoE, with redundancy
- AC input: 100 to 240 VAC, 47 to 63 Hz
- Typical power (no modules): 65 W
- Maximum power: 250 W (AC), 437 W (DC), excluding PoE
- Endpoint PoE power: up to 250 W with redundancy, 500 W in boost mode
- Dimensions (H x W x D): 43.9 x 438.15 x 507.2 mm
- Rack height: 1 RU
- Weight (AC PSU, no modules): 8.4 kg
- Operating temperature: 0 to 40 C
- Operating humidity: 5% to 85%
- MTBF: 512,970 hours

FAQs

Q: Which licences are included in the AX bundle?
A: The ISR4431-AX/K9 includes the Application Experience (APP) and Security (SEC) technology packages on top of IP Base. It does not include UC or voice licensing.

Q: How is throughput increased beyond the default?
A: Throughput is licence-governed. The default is 500 Mbps, the Performance licence raises it to 1 Gbps, and the Boost licence delivers over 4 Gbps (CEF only).

Q: What power supply options does this router support?
A: It supports internal AC, DC and PoE power supplies, with redundancy. AC input is 100 to 240 VAC at 47 to 63 Hz, and the PoE supply provides up to 250 W of endpoint power with redundancy or 500 W in boost mode.

Q: How does it differ from the ISR4431-SEC/K9 and ISR4431-AXV/K9?
A: The AX bundle adds both the Application Experience and Security licences without voice. The SEC version covers security only, and the AXV version adds UC and voice licensing.

Q: What modules can I fit in the NIM slots?
A: The three NIM slots accept Cisco 4000 Series NIM modules, with online insertion and removal. The chassis has no SM-X slots.
