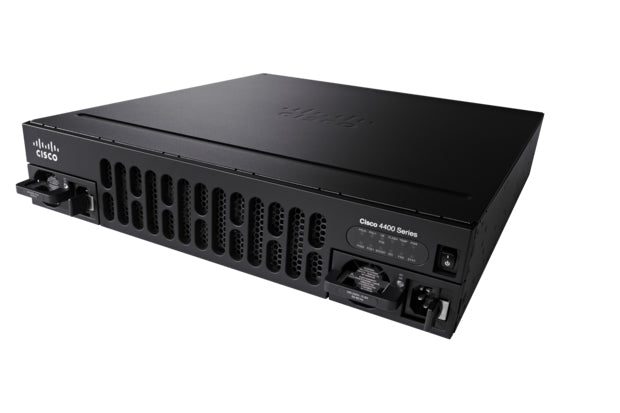

• Cisco ISR4351-VSEC/K9 black router with silver accents and vents
1 1

Cisco

Cisco ISR4351-VSEC/K9 | ISR 4351 Router, 3x GbE, UC + Security, PVDM4-64

ISR4351-VSEC/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 4351 is a modular branch-office router from the Cisco ISR 4000 family, built for medium to large branch sites that need a converged WAN edge. It handles secure WAN and VPN connectivity, Catalyst SD-WAN, an on-site voice gateway, SIP trunking and Cisco Unified Border Element (CUBE) services on a single IOS XE platform.

This ISR4351-VSEC/K9 is the UC + Security bundle with a PVDM4-64 voice DSP module. It provides 3 onboard 10/100/1000 WAN/LAN ports, available as RJ-45 or SFP-based combo ports, plus 3 NIM slots, 2 single-wide SM-X slots and 1 double-wide SM-X slot for modular I/O. Aggregate throughput is 200 Mbps by default and can be raised to 400 Mbps with the Performance licence, or to over 2 Gbps CEF-only with the Boost licence. Memory is 4 GB DRAM and 4 GB flash by default, expandable to 16 GB of each. The VSEC bundle covers the Unified Communications and Security technology packages on the universal IOS XE image.

The PVDM4-64 sits in the onboard ISC slot and supports high-density voice DSP workloads. The chassis is 2RU with a 19-inch rack-mount kit and an internal AC power supply, with a PoE-capable supply available as an option.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Catalyst SD-WAN capable with a single universal IOS XE image and performance-on-demand licensing
- Embedded IPsec VPN hardware acceleration for secure WAN links
- Integrated Services Card slot hosts high-density PVDM4 voice DSP modules
- Voice gateway, SIP trunking, Cisco Unified Communications Express and CUBE support
- Modular I/O through NIM and SM-X slots with online insertion and removal
- Multicore control plane with a dedicated data plane to maintain performance as services are added
- Dedicated Gigabit Ethernet management port

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Onboard WAN/LAN ports: 3 x 10/100/1000 (RJ-45 or SFP-based)
- Aggregate throughput (default): 200 Mbps
- Aggregate throughput (Performance licence): 400 Mbps
- Aggregate CEF-only throughput (Boost licence): Over 2 Gbps
- NIM slots: 3
- Enhanced service-module (SM-X) slots: 2 single-wide or 1 double-wide
- Onboard ISC slot: 1 (PVDM4)
- Default DRAM: 4 GB DDR3 ECC (maximum 16 GB)
- Default flash: 4 GB (maximum 16 GB)
- USB ports: 2 x USB 2.0 Type-A
- Console ports: USB mini-B and RJ-45 serial, plus RJ-45 auxiliary
- Online insertion and removal: Yes, all I/O modules
- Power supply: Internal AC, 100 to 240 VAC autoranging, 47 to 63 Hz
- Typical power (no modules): 48 W
- Maximum power with AC supply: 430 W
- Dimensions (H x W x D): 88.9 x 438.15 x 469.9 mm
- Rack height: 2RU, 19-inch rack-mount
- Operating temperature: 0 to 40 C
- Relative humidity (operating): 5% to 85%

FAQs

Q: What does the VSEC bundle licensing cover?
A: The VSEC bundle covers the Unified Communications and Security technology packages on the universal Cisco IOS XE image. Throughput is 200 Mbps by default and can be increased with the Performance or Boost licences.

Q: How is throughput increased beyond the default?
A: Default aggregate throughput is 200 Mbps. The Performance licence raises it to 400 Mbps, and the Boost licence delivers over 2 Gbps CEF-only throughput.

Q: What power supply does the ISR 4351 use?
A: It uses an internal AC power supply rated 100 to 240 VAC autoranging at 47 to 63 Hz, with a typical draw of 48 W and a maximum of 430 W. A PoE-capable supply is also available for up to 500 W of endpoint PoE.

Q: What modules does the ISR 4351 accept?
A: It has 3 NIM slots, 2 single-wide SM-X slots that can be combined into 1 double-wide slot, and an onboard ISC slot for PVDM4 DSP modules. All I/O modules support online insertion and removal.

Q: Does the ISR 4351 have built-in LTE?
A: No. Cellular connectivity is added through a modular cellular NIM or a pluggable module in the available slots.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

Download product manual
