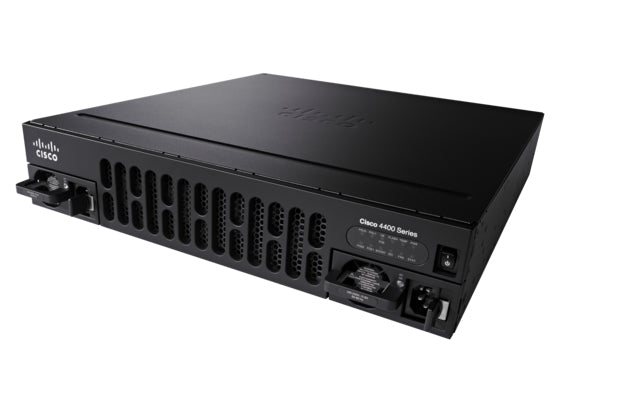

• Cisco ISR4351-V/K9 black router with silver accents and vents
1 1

Cisco

Cisco ISR4351-V/K9 | ISR 4351 Router, UC Voice Bundle, PVDM4-64 DSP

ISR4351-V/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 4351 is a modular, 2RU branch-office services router from the Cisco ISR 4000 family. This voice bundle pairs the chassis with a PVDM4-64 DSP module and UC licensing, making it suited to remote sites that need a WAN edge router and an integrated voice platform in one box. Typical roles include SIP trunking, analogue and digital voice gateway, SRST survivability, CUBE session border control and CME call control.

The router provides 3 onboard 10/100/1000 WAN or LAN ports, with 3 RJ-45 and 3 SFP-based connections. Aggregate throughput is 200 Mbps by default and 400 Mbps with the Performance licence. Expansion comes from 3 NIM slots, 2 SM-X service module slots (or 1 doublewide) and an onboard ISC slot that accepts PVDM4 DSP modules. Memory ships at 4 GB DRAM and 4 GB flash, expandable to 16 GB of each. It runs from an internal AC supply (100 to 240 VAC), with typical draw of 65 W and a maximum of 430 W.

The ISR 4351 uses a single universal IOS XE image with performance-on-demand licensing, and supports Cisco DNA software subscriptions. Modules support online insertion and removal.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Single universal IOS XE image with performance-on-demand licensing
- PVDM4 DSP module support through the onboard ISC slot
- Cisco Unified SRST for remote-site call survivability
- Integrated Unified Communications Express call control and Unified Border Element session border control
- Analogue and digital voice gateway with VoIP over SIP trunks
- Online insertion and removal of modules
- Supports T1/E1, T3/E3, serial, xDSL and Gigabit Ethernet access links
- Supports Cisco Catalyst SD-WAN and Cisco DNA software subscriptions

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Onboard WAN/LAN ports: 3 x 10/100/1000
- RJ-45-based ports: 3
- SFP-based ports: 3
- Aggregate throughput (default): 200 Mbps
- Aggregate throughput (Performance licence): 400 Mbps
- NIM slots: 3
- SM-X service module slots: 2 (or 1 doublewide)
- Onboard ISC slot: 1 (PVDM4 DSP support)
- DRAM: 4 GB default, 16 GB maximum
- Flash: 4 GB default, 16 GB maximum
- USB: 2 x USB 2.0 Type A
- Console: 1 x USB mini-B, 1 x RJ-45
- Auxiliary port: 1 x RJ-45
- Power supply: internal AC, 100 to 240 VAC, 47 to 63 Hz
- Typical power (no modules): 65 W
- Maximum power with AC supply: 430 W
- Form factor: 2RU, rack-mountable
- Weight (1 x 450 W AC supply, no modules): 13.1 kg
- Operating temperature: 0 to 40 C
- Relative humidity: 5% to 85%
- Airflow: I/O side to bezel side
- MTBF: 566,310 hours

FAQs

Q: Which licence does this bundle include?
A: This voice bundle includes the UC (Unified Communications) licence. Throughput defaults to 200 Mbps, with Performance and Boost licences available as optional upgrades.

Q: What voice features does it support?
A: With the PVDM4-64 DSP and UC licence it supports SIP trunking, analogue and digital voice gateway functions, SRST, Cisco Unified Border Element and Cisco Unified Communications Express call control.

Q: What modules does it accept?
A: It has 3 NIM slots, 2 SM-X service module slots (or 1 doublewide slot) and an onboard ISC slot for PVDM4 DSP modules.

Q: How is it powered?
A: It uses an internal AC power supply rated 100 to 240 VAC. Typical draw is 65 W with no modules and the maximum is 430 W. No redundant power supply option is available on the 4351.

Q: How does this SKU differ from other ISR 4351 models?
A: This SKU is the voice bundle, combining the ISR 4351 chassis with a PVDM4-64 DSP module and UC licensing, while other SKUs in the range ship without the voice DSP and licence package.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

Download product manual
