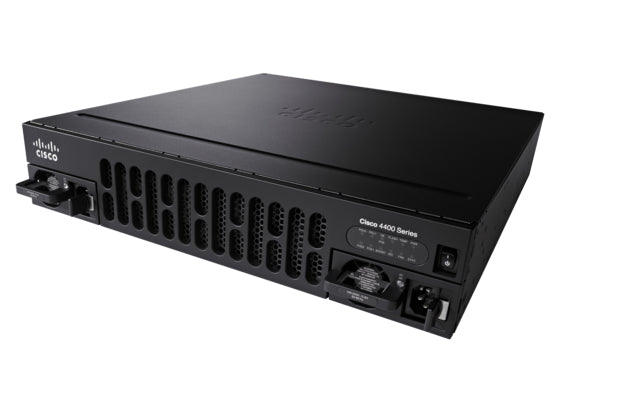

• Cisco ISR4351-SEC-K9 black router with silver accents and vents
1 1

Cisco

Cisco ISR4351-SEC-K9 | ISR 4351 Router, 3x GbE, SEC Security Bundle

ISR4351-SEC-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 4351 is a modular branch router from the Cisco 4000 Family Integrated Services Routers, built for the enterprise branch-office WAN edge. It runs Cisco IOS XE and supports Cisco Catalyst SD-WAN, so it suits secure connectivity over MPLS, internet and VPN links as well as converged branch deployments that need room for extra modules and services.

This SKU is the security bundle with the Security (SEC) licence, which ships with the Cisco IOS XE securityk9 technology-package licence and enables hardware-accelerated IPsec VPN and WAN link security. It has three onboard 10/100/1000 WAN/LAN ports, each an RJ-45 and SFP combination, three NIM slots and two SM-X service-module slots, or one doublewide slot. Aggregate throughput is 200 Mbps by default and can be raised to 400 Mbps with the Performance licence, or over 2 Gbps (CEF only) with the Boost licence. Memory is 4 GB DRAM and 4 GB flash by default, each upgradable to 16 GB.

The chassis is 2RU and mounts in a 19-inch rack, with an optional 23-inch kit. It accepts Cisco NIM modules and SM-X service modules, and internal AC, DC and PoE power supply options exist for the platform. Cisco Catalyst SD-WAN and DNA subscriptions are licensed separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with support for Cisco Catalyst SD-WAN, routing traffic across the best available WAN link
- Security (SEC) licence bundle with hardware-accelerated IPsec VPN
- Modular NIM and SM-X slots for WAN, voice, compute and other services
- Pay-as-you-grow performance licensing at default, Performance and Boost levels
- Onboard ISC slot
- Online insertion and removal (OIR) of I/O modules
- Supports Cisco DNA software subscription licensing and NFV

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Onboard WAN/LAN ports: 3 x 10/100/1000 (RJ-45/SFP combination)
- Aggregate throughput (default): 200 Mbps
- Aggregate throughput (Performance licence): 400 Mbps
- Aggregate CEF-only throughput (Boost licence): Over 2 Gbps
- NIM slots: 3
- Enhanced service-module (SM-X) slots: 2, or 1 doublewide
- Default DRAM: 4 GB, maximum 16 GB
- Default flash: 4 GB, maximum 16 GB
- USB: 2 x USB 2.0 type A
- Console: USB type B mini and RJ-45 serial, plus RJ-45 serial auxiliary port
- Power supply options: Internal AC, DC and PoE
- AC input: 100 to 240 VAC, 47 to 63 Hz
- Typical power (no modules): 48 W
- Maximum power with AC supply: 430 W
- Maximum endpoint PoE from PoE supply: 500 W
- Form factor: 2RU rack-mount, 19-inch EIA
- Dimensions (H x W x D): 88.9 x 438.15 x 469.9 mm
- Weight with 450 W AC supply (no modules): 13.1 kg
- Airflow: I/O side to bezel side
- Operating temperature: 0 to 40 C
- Relative humidity: 5% to 85%

FAQs

Q: Which licence does this SKU include?
A: It is the security bundle with the Cisco IOS XE Security (securityk9) technology-package licence. Throughput starts at 200 Mbps and can be increased with the optional Performance or Boost licences.

Q: How can I increase the throughput?
A: Aggregate throughput is 200 Mbps by default. The Performance licence raises it to 400 Mbps, and the Boost licence provides over 2 Gbps for CEF-only traffic.

Q: What modules does it accept?
A: It has three NIM slots for Cisco NIM modules and two SM-X slots for service modules, or one doublewide SM-X slot.

Q: Does it support SD-WAN?
A: Yes. It runs Cisco IOS XE and supports Cisco Catalyst SD-WAN. SD-WAN and DNA subscriptions are licensed separately.

Q: What power options does the platform offer?
A: Internal AC, DC and PoE power supplies are available for the platform. The AC supply is 100 to 240 VAC, and the PoE supply provides up to 500 W of endpoint PoE.
