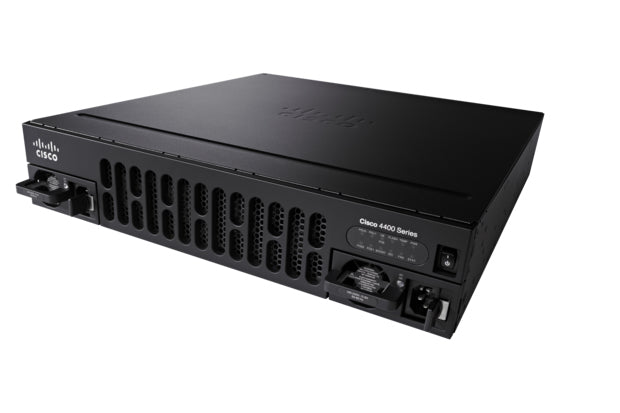

• Cisco ISR4351-AX/K9 black enterprise router with silver accents
1 1

Cisco

Cisco ISR4351-AX/K9 | ISR 4351 Router, 3x GE, AX Bundle (APP + SEC)

ISR4351-AX/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 4351 is a modular branch-office router from the Cisco 4000 Series Integrated Services Router family, built for medium to large branch offices and enterprise WAN edge deployments that need routing, security, application services and WAN optimisation in one platform. This SKU is the AX bundle, which adds the Application Experience and Security feature licences on top of IP Base. It does not include the Unified Communications licence, which is part of the AXV bundle.

The router provides three onboard 10/100/1000 WAN/LAN ports, three NIM slots, two SM-X service module slots (convertible to one double-wide) and one onboard ISC slot. Base aggregate throughput is 200 Mbps, upgradable to 400 Mbps with the FL-4350-PERF-K9 performance licence. It ships with 4 GB DRAM and 4 GB flash by default, expandable to 16 GB of each, and fits a 2 RU rack space. The Application Experience set covers PfRv3, WAAS with AppNav, NBAR2, AVC, IP SLA and Akamai Connect, while the Security set adds IPsec VPN and zone-based firewall services.

The platform accepts Cisco NIMs and SM-X service modules, including UCS-E server modules for on-router compute. An internal AC power supply covers 100 to 240 VAC, with DC and PoE power-supply options in the family.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular platform with NIM and SM-X slots for LAN, WAN, wireless and compute modules
- Each SM-X slot supports up to 10 Gbps toward the system
- Supports Cisco UCS-E server modules for on-router compute
- Multi-core architecture with separate control, data and services planes
- Application Experience feature set: PfRv3, WAAS with AppNav, NBAR2, AVC, IP SLA
- Hybrid cloud connectivity with LISP, OTV, VPLS and EoMPLS
- Akamai Connect intelligent web caching
- Security feature set with IPsec VPN and zone-based firewall

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Onboard WAN/LAN ports: 3 x 10/100/1000 (RJ-45 / SFP combo)
- NIM slots: 3
- SM-X service module slots: 2 (convertible to 1 double-wide)
- Onboard ISC slot: 1
- Aggregate throughput: 200 Mbps base, up to 400 Mbps with FL-4350-PERF-K9
- Default DRAM: 4 GB (DDR3 ECC), maximum 16 GB
- Default flash: 4 GB, maximum 16 GB
- USB: 2 x USB 2.0 Type A
- Console: 1 x USB Type B mini, 1 x RJ-45 serial
- Auxiliary port: 1 x RJ-45 serial
- Power supply: internal AC, 100 to 240 VAC autoranging, 47 to 63 Hz
- Maximum power with AC power supply: 430 W
- Redundant power supply: not supported
- Rack height: 2 RU
- Dimensions (H x W x D): 43.9 x 438.15 x 507.2 mm
- Airflow: I/O side to bezel side
- MTBF: 566,310 hours
- Licensing: IP Base + Security + Application Experience

FAQs

Q: What licences does the AX bundle include?
A: The AX bundle includes the Application Experience (APP) and Security (SEC) feature licences on top of IP Base. The Unified Communications licence is not part of this bundle.

Q: How do I increase throughput beyond 200 Mbps?
A: Base aggregate throughput is 200 Mbps. The optional FL-4350-PERF-K9 performance licence raises it to 400 Mbps.

Q: What modules does it accept?
A: It accepts Cisco NIMs in its three NIM slots and SM-X service modules in its two SM-X slots, including UCS-E server modules. Refer to the ISR 4000 interfaces and modules compatibility sheet for the full supported list.

Q: Does it support redundant power?
A: No. The router uses a single internal AC power supply rated 100 to 240 VAC, with a 430 W maximum draw.

Q: How does this differ from the AXV bundle?
A: The AX bundle provides Application Experience and Security licences. The AXV bundle adds the Unified Communications licence for voice features.
