• Cisco ISR4331-VSEC/K9 enterprise router with USB port and power cord
1 1

Cisco

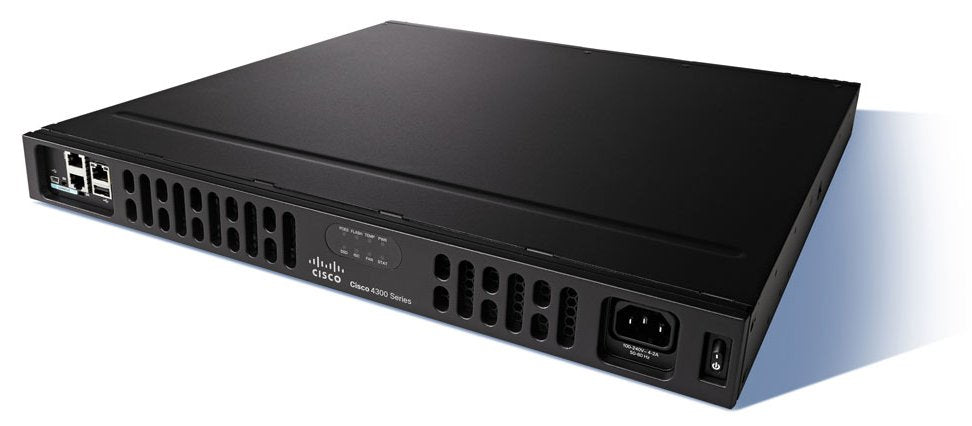

Cisco ISR4331-VSEC/K9 | ISR 4331 Router, UC + Security Licences, PVDM4-32

ISR4331-VSEC/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ISR 4331 is a modular branch-office router in the ISR 4000 family, running a single universal IOS XE image with Catalyst SD-WAN support. This voice and security bundle suits sites that need converged voice, VPN and firewall services on one WAN edge platform, including voice gateway, SRST and CUBE roles over MPLS, internet and VPN links.

The bundle pairs UC and Security software licences with a 32-channel PVDM4-32 DSP module in the onboard ISC slot. The router has 3 onboard 10/100/1000 WAN or LAN ports, 2 NIM slots and 1 enhanced service module slot, with 4 GB of DRAM and 4 GB of flash by default, upgradable to 16 GB each. Aggregate throughput is 100 Mbps by default, 300 Mbps with the Performance licence and over 2 Gbps CEF-only with the Boost licence. It is a 1RU unit with an internal AC supply, 100-240 VAC autoranging, drawing 42 W typical and 250 W maximum.

Optional LTE or cellular connectivity can be added through a NIM, and the NIM and SM slots support online insertion and removal. Cisco DNA subscription and SD-WAN software are licensed separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports Cisco Catalyst SD-WAN features on the ISR 4000 platform
- Multicore processor with an emulated flow processor for ASIC-like data-plane performance
- Embedded IPsec VPN hardware acceleration, enabled by the Security licence
- Onboard ISC slot natively supports PVDM4 high-density voice DSP modules
- Supports SRST, Unified Communications Express (CME) and Cisco Unified Border Element (CUBE)
- Zone-based firewall, DMVPN, Snort IPS and Umbrella Branch security options
- Performance-on-demand: throughput raised by licence upgrade without a hardware change
- Secure boot, code signing and hardware authentication
- NIM and SM slots support online insertion and removal

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Onboard 10/100/1000 WAN/LAN ports: 3
- NIM slots: 2
- Enhanced service module slots: 1
- Onboard ISC slot: 1 (PVDM4)
- Aggregate throughput (default): 100 Mbps
- Aggregate throughput (Performance licence): 300 Mbps
- Aggregate CEF-only throughput (Boost licence): over 2 Gbps
- Default memory: 4 GB DDR3 ECC, maximum 16 GB
- Default flash: 4 GB, maximum 16 GB
- USB 2.0 type A: 1
- USB mini-B console: 1
- RJ-45 serial console: 1
- RJ-45 serial auxiliary: 1
- Power supply: internal AC, 100 to 240 VAC autoranging, 47 to 63 Hz
- Typical power (no modules): 42 W
- Maximum power with AC power supply: 250 W
- Form factor: 1RU, 19 in rack-mount, wall-mount supported
- Dimensions (H x W x D): 44.45 x 438.15 x 438.15 mm
- Weight with AC power supply (no modules): 6.2 kg
- Airflow: I/O side to bezel side
- Operating temperature: 0 to 40 C
- Operating humidity: 5% to 85%
- MTBF: 587,250 hours

FAQs

Q: Which licences does this bundle cover?
A: The VSEC bundle is built around the Unified Communications (UC) and Security (SEC) technology-package licences, together with a PVDM4-32 DSP module. Cisco DNA subscription and SD-WAN software are licensed separately.

Q: How do I get more than 100 Mbps of throughput?
A: Default aggregate throughput is 100 Mbps. The Performance licence raises it to 300 Mbps and the Boost licence delivers over 2 Gbps CEF-only throughput, with no hardware change needed.

Q: Can it provide PoE to endpoints?
A: The standard internal AC supply does not. An optional PoE-capable supply raises the platform maximum to 530 W and can deliver up to 250 W to endpoints.

Q: What modules and connectivity options does it take?
A: It takes up to two NIMs and one enhanced service module, and the onboard ISC slot hosts PVDM4 DSP modules. Optional LTE or cellular connectivity is added through a NIM.

Q: Can the memory be upgraded?
A: Yes. DRAM defaults to 4 GB and can be upgraded to 16 GB. Flash also defaults to 4 GB and can be upgraded to 16 GB.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

Download product manual
