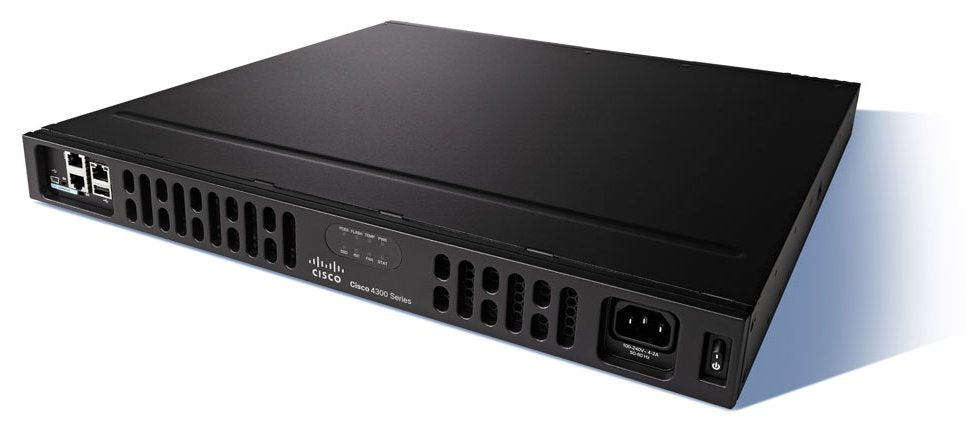

• Cisco ISR4331-V/K9 black router with USB port and power cord
1 1

Cisco

Cisco ISR4331-V/K9 | ISR 4331 Router, 3x GE, UC Bundle, PVDM4-32, CUBE-10

ISR4331-V/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ISR 4331 is a modular branch-office integrated services router from the Cisco 4000 Series ISR range. The -V/K9 SKU is the voice and Unified Communications bundle, making it a fit for small and medium branch offices that need a WAN router, voice gateway and Cisco Unified Border Element in one 1RU chassis, with Catalyst SD-WAN capability and optional LTE backup.

Onboard connectivity is three 10/100/1000 WAN/LAN ports, made up of two RJ-45 ports and two SFP ports, with one RJ-45/SFP combo. Expansion comes from two NIM slots and one enhanced service-module slot, all supporting online insertion and removal. This bundle adds a PVDM4-32 DSP module, the UC technology package and CUBE-10. Aggregate throughput is 100 Mbps by default and can be raised to 300 Mbps with the Performance licence.

The router ships with 4 GB DRAM and 4 GB flash as standard, expandable to 16 GB of each, and runs Cisco IOS XE. Power comes from an internal AC supply rated 100 to 240 VAC, with a PoE-capable option available. It supports NIM modules including LTE NIMs, PVDM4 DSP modules, the onboard ISC slot and SFP modules in the two SFP ports.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco Catalyst SD-WAN capable on IOS XE
- Modular NIM and service-module slots with online insertion and removal
- Throughput upgrade by software licence with no hardware change
- Integrated voice with PVDM4 DSP support and Cisco Unified Border Element
- Optional 4G/LTE connectivity through NIM modules
- Embedded security and application-visibility features of the ISR 4000 family

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Onboard 10/100/1000 WAN/LAN ports: 3
- RJ-45 ports: 2
- SFP ports: 2 (one RJ-45/SFP combo)
- NIM slots: 2
- Enhanced service-module slots: 1
- Onboard ISC slot: 1
- Aggregate throughput (default): 100 Mbps
- Aggregate throughput (Performance licence): 300 Mbps
- Aggregate CEF-only throughput (Boost licence): over 2 Gbps
- Voice: PVDM4-32 DSP module, UC package, CUBE-10
- Default DRAM: 4 GB (maximum 16 GB)
- Default flash: 4 GB (maximum 16 GB)
- USB 2.0 type A port: 1
- USB console port (type B mini): 1
- RJ-45 serial console port: 1
- RJ-45 serial auxiliary port: 1
- AC input voltage: 100 to 240 VAC autoranging
- Typical power (no modules): 42 W
- Maximum power with AC power supply: 250 W
- Dimensions (H x W x D): 44.45 x 438.15 x 438.15 mm
- Rack height: 1 RU, 19-inch rack-mountable
- Weight with AC power supply (no modules): 6.2 kg
- Operating temperature: 0 to 40 C
- MTBF: 587,250 hours

FAQs

Q: Which licences does the ISR4331-V/K9 use?
A: This SKU is the voice bundle with the Unified Communications technology package and CUBE-10. Throughput is 100 Mbps by default and rises to 300 Mbps with the Performance licence. SD-WAN operation requires Cisco Catalyst SD-WAN software and licensing.

Q: How does the -V/K9 differ from other ISR 4331 SKUs?
A: The -V/K9 is the UC bundle that adds a PVDM4-32 DSP module, the UC licence and CUBE-10 for voice gateway and session border use. Other ISR 4331 SKUs are configured for different feature sets.

Q: Which modules does it work with?
A: It supports NIM modules in its two NIM slots, including LTE NIMs, one enhanced service-module slot, PVDM4 DSP modules, the onboard ISC slot, and SFP modules in the two SFP ports.

Q: How is the router powered?
A: It uses an internal AC power supply rated 100 to 240 VAC at 47 to 63 Hz. Typical draw is 42 W with no modules and maximum is 250 W. A PoE-capable supply option provides up to 250 W of endpoint PoE.

Q: Can it run SD-WAN?
A: Yes. It is Cisco Catalyst SD-WAN capable on IOS XE, with the relevant SD-WAN software and licensing.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

Download product manual
