• Cisco ISR4331-SEC/K9 router with USB port, power cord, 3x 1GbE
1 1

Cisco

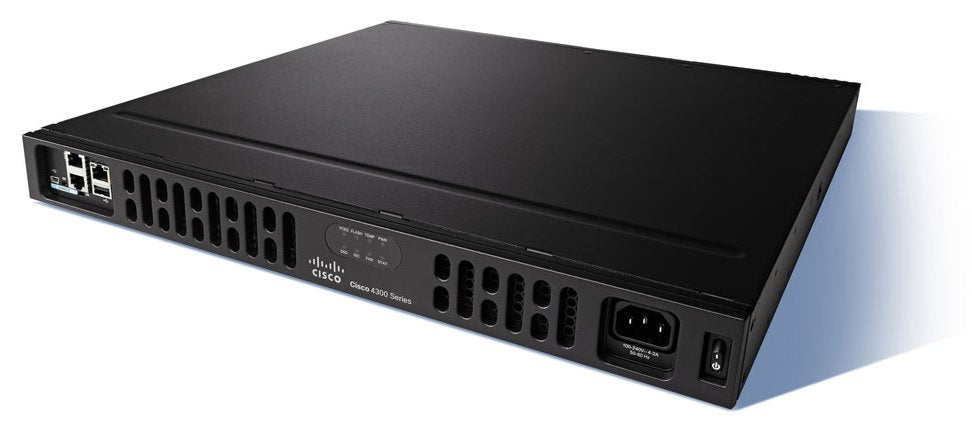

Cisco ISR4331-SEC/K9 | ISR 4331 Router, 3x GE, Security Licence Bundle

ISR4331-SEC/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 4331 is an integrated services router from the Cisco 4000 Series ISR family, built for branch-office WAN edge and secure Internet or VPN connectivity at small to mid-sized sites. It runs Cisco IOS XE and is modular, so voice, LTE backup, switching and compute can be added as the site grows.

This ISR4331-SEC/K9 bundle pairs the ISR 4331 platform with the Security (SEC) technology package licence. It provides three onboard Gigabit Ethernet WAN ports (one GE/SFP combo, one GE and one SFP), two NIM slots and one single-wide SM-X slot. Throughput is 100 Mbps by default and can be raised to 300 Mbps with the Performance licence. It ships with 4 GB DRAM and 4 GB flash by default, both upgradeable to 16 GB, in a 1 RU chassis with an internal AC power supply.

The module slots accept Cisco NIMs including 4G LTE and LTE Advanced modules, SM-X modules, PVDM4 voice DSP modules and UCS E-Series server modules. The security licence enables features such as IPsec VPN, zone-based firewall and IPS.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated services router platform for branch offices running Cisco IOS XE
- Modular design with NIM, SM-X and PVDM4 slots for voice, WAN, LTE and switching modules
- Security technology package licence enables IPsec VPN, zone-based firewall and IPS (Snort)
- Performance upgradeable from 100 Mbps to 300 Mbps with the Performance licence
- Supports Cisco 4G LTE and LTE Advanced NIMs for cellular WAN backup
- Supports UCS E-Series server modules for compute at the branch
- Out-of-band 1 GE management port and online insertion and removal of modules

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Onboard WAN ports: 3x Gigabit Ethernet (1 GE/SFP combo, 1 GE, 1 SFP)
- NIM slots: 2
- Enhanced Services Module (SM-X) slot: 1 single-wide
- ISC slot: 1 (PVDM4)
- Throughput: 100 Mbps, upgradeable to 300 Mbps with Performance licence
- DRAM: 4 GB default, 16 GB maximum
- Flash: 4 GB default, 16 GB maximum
- Management port: 1x GE out of band
- USB ports (Type A): 1
- Form factor: 1 RU
- Power supply: Internal AC
- Redundant power supply: No
- Maximum switched Ethernet ports: 24
- PoE with optional switching modules: 250 W (530 W with PoE boost)
- Module online insertion and removal: Yes
- Licence included: Security (SEC)

FAQs

Q: Which licence does this SKU include?
A: ISR4331-SEC/K9 includes the Security (SEC) technology package licence. Throughput is 100 Mbps by default and can be upgraded to 300 Mbps with the Performance licence, FL-4330-PERF-K9.

Q: What power supply does it use?
A: It has an internal AC power supply, PWR-4330-AC. A PoE-capable AC supply, PWR-4330-POE-AC, is available as an option for PoE switching modules. No redundant power supply is available.

Q: Can it provide cellular WAN backup?
A: Yes. The NIM slots accept Cisco 4G LTE and LTE Advanced modules such as NIM-4G-LTE-GA and NIM-LTEA-EA/LA.

Q: What modules and mounting options does it work with?
A: It supports NIMs, SM-X modules, PVDM4 DSP modules, UCS E-Series server modules and MEM-4300-xG and MEM-FLSH-xG upgrades. Rack-mount ACS-4330-RM-19= and wall-mount ACS-4330-WM= kits are available.

Q: How does it differ from other ISR 4331 SKUs?
A: This SKU is the ISR 4331 bundled with the Security (SEC) licence. It defaults to 100 Mbps, upgradeable to 300 Mbps, and uses an AC power supply.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

Download product manual
