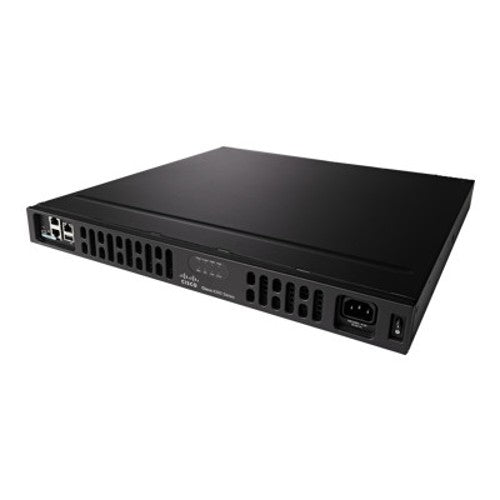

Cisco ISR4331-AX/K9 | ISR 4331 Router, 3x GbE WAN/LAN, AX Bundle

ISR4331-AX/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR 4331 is a branch-office integrated services router from Cisco's ISR 4000 family, running modular Cisco IOS XE and supporting Cisco Catalyst SD-WAN features. This AX bundle SKU is aimed at small to mid-size branches that need secure, application-aware WAN edge connectivity across MPLS, VPN and Internet links to data centres and public clouds, with room to add voice or NFV services.

The AX bundle includes the Application Experience and Security licences alongside IP Base, which separates it from the base ISR4331/K9, the ISR4331-SEC/K9 and the ISR4331-AXV/K9 that adds PVDM4-32 and a UC licence. Onboard connectivity is three 10/100/1000 WAN/LAN ports, including two RJ-45 and two SFP-based interfaces. Expansion comes from two NIM slots and one Enhanced Service Module (SM-X) slot, plus an onboard ISC slot for PVDM4 voice DSP modules. Default aggregate throughput is 100 Mbps, which the Performance licence raises to 300 Mbps with no hardware change.

The unit ships with 4 GB DRAM and 4 GB flash, both upgradable to 16 GB. It is a 1RU chassis with an internal AC power supply rated at a maximum of 250 W, and an optional PoE-capable supply is available for powering integrated switch modules. Embedded IPsec VPN hardware acceleration supports secure WAN links.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs modular Cisco IOS XE Software with a single universal image and performance-on-demand licensing
- Supports Cisco Catalyst SD-WAN software features
- ISR-AX Application Experience bundle with advanced routing and network monitoring services
- Embedded IPsec VPN hardware acceleration with the Security licence for WAN link security
- Security features include DMVPN, zone-based firewall, Intrusion Prevention (Snort and Umbrella Branch) and secure boot
- Throughput can be raised from 100 to 300 Mbps with a licence upgrade and no hardware change
- NIM and SM-X modules support online insertion and removal
- An SM-X slot can be converted to an NIM slot with an optional carrier card

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Onboard WAN/LAN ports: 3 x 10/100/1000
- RJ-45-based ports: 2
- SFP-based ports: 2
- NIM slots: 2
- Enhanced service-module (SM-X) slots: 1
- Onboard ISC slot: 1 (PVDM4 voice DSP support)
- Aggregate throughput (default): 100 Mbps
- Aggregate throughput (Performance licence): 300 Mbps
- Aggregate CEF-only throughput (Boost licence): over 2 Gbps
- Default memory: 4 GB DDR3 ECC DRAM, upgradable to 16 GB
- Default flash: 4 GB, upgradable to 16 GB
- USB 2.0 type A slots: 1
- Console ports: USB mini type B and RJ-45 serial, plus RJ-45 auxiliary
- Power supply: internal AC, 100 to 240 VAC autoranging, 47 to 63 Hz
- Typical power (no modules): 42 W, maximum with AC power supply: 250 W
- Dimensions (H x W x D): 44.45 x 438.15 x 438.15 mm, 1RU
- Weight with AC power supply (no modules): 6.2 kg
- Operating temperature: 0 to 40 C
- Operating relative humidity: 5% to 85%
- Airflow: I/O side to bezel side

FAQs

Q: Which licences does the AX bundle include?
A: The AX bundle includes IP Base, Security (SEC) and Application Experience (AppX) licences. Performance and Boost licences are optional upgrades.

Q: What throughput does it deliver?
A: Default aggregate throughput is 100 Mbps. The Performance licence raises this to 300 Mbps, and the Boost licence enables CEF-only throughput of over 2 Gbps.

Q: How does it differ from the other ISR 4331 SKUs?
A: Compared with the base ISR4331/K9 and the ISR4331-SEC/K9, the AX bundle adds both the Application Experience and Security licences. The ISR4331-AXV/K9 further adds a PVDM4-32 voice module and a UC licence.

Q: What expansion options does it have?
A: It has two NIM slots, one Enhanced Service Module (SM-X) slot and an onboard ISC slot for PVDM4 voice DSP modules. DRAM and flash can each be upgraded to 16 GB.

Q: Can it power PoE devices?
A: The standard internal supply is AC only. An optional PoE power supply raises platform maximum power to 530 W and provides up to 250 W of endpoint PoE for integrated switch modules.

Q: Does it support SD-WAN?
A: Yes. It runs Cisco IOS XE and supports Cisco Catalyst SD-WAN features.
