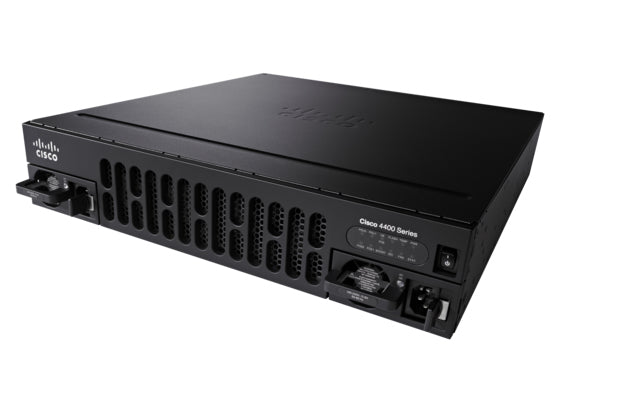

• Cisco ISR4321-DNA branch router with black chassis, silver accents, and ventilation grates
1 1

Cisco

Cisco ISR4321-DNA | ISR 4321 Router, 2GE, 2x NIM, DNA Subscription

ISR4321-DNA

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR4321-DNA is a branch-office router from the Cisco 4000 Series Integrated Services Routers, supplied as the ISR 4321 platform bundled with a Cisco DNA software subscription for SD-WAN and routing. It suits small and medium branch WAN edge deployments, including sites managed through Cisco Catalyst SD-WAN with optional cellular backup.

The chassis provides two onboard 10/100/1000 WAN/LAN RJ-45 ports plus one SFP-based port, and two NIM slots with online insertion and removal for adding WAN, voice or cellular modules. It ships with 4 GB DRAM (expandable to 8 GB) and 4 GB flash (expandable to 8 GB). Aggregate throughput is 50 Mbps by default, rising to 100 Mbps with the Performance licence and 1.5 Gbps CEF-only with the Boost licence.

The DNA subscription is in the Essentials or Advantage tier, which sets the Network Essentials or Network Advantage software stack. Power comes from an external AC supply (100 to 240 VAC) with typical draw of 36 W and a maximum of 125 W. The 1RU chassis suits standard 19-inch racks, and management access is by USB and RJ-45 console ports.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Cisco IOS XE with Cisco Catalyst SD-WAN software features
- Cisco DNA subscription in the Essentials or Advantage tier
- Modular NIM slots for WAN, voice and 4G/LTE cellular modules
- Online insertion and removal supported on I/O modules
- Dedicated Gigabit Ethernet management port
- USB and RJ-45 console access
- Hardware and software options for integrated security, unified communications and application services

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Onboard WAN/LAN ports: 2 x 10/100/1000 RJ-45
- SFP-based ports: 1
- NIM slots: 2
- Enhanced service-module slots: 0
- Onboard ISC slot: 1
- Aggregate throughput (default): 50 Mbps
- Aggregate throughput (Performance licence): 100 Mbps
- CEF-only throughput (Boost licence): 1.5 Gbps
- DRAM: 4 GB default, 8 GB maximum
- Flash: 4 GB default, 8 GB maximum
- USB 2.0 Type-A port: 1
- USB console port: 1 (Type B mini)
- Serial console and auxiliary ports: 1 each (RJ-45)
- Power supply: external AC, optional PoE power supply
- AC input: 100 to 240 VAC, 47 to 63 Hz
- Typical power (no modules): 36 W
- Maximum power with AC power supply: 125 W
- Dimensions (H x W x D): 44.55 x 369.57 x 294.64 mm
- Rack height: 1 RU, 19-inch EIA

FAQs

Q: Does the ISR4321-DNA include a software licence?
A: It is bundled with a Cisco DNA software subscription for SD-WAN and routing, in the Essentials or Advantage tier. The tier determines whether the Network Essentials or Network Advantage stack is used.

Q: What throughput does it provide?
A: Aggregate throughput is 50 Mbps by default and 100 Mbps with the Performance licence. The Boost licence raises CEF-only throughput to 1.5 Gbps.

Q: Can I add cellular or other modules?
A: Yes. The two NIM slots accept WAN, voice and cellular (4G/LTE) modules, and they support online insertion and removal. There is one onboard ISC slot and no SM-X slots.

Q: How is it powered?
A: It uses an external AC power supply, 100 to 240 VAC at 47 to 63 Hz, drawing 36 W typically and 125 W maximum. An optional PoE power supply raises the platform maximum to 260 W and provides up to 120 W of endpoint PoE.

Q: How much memory can it hold?
A: It has 4 GB DRAM and 4 GB flash by default, each expandable to 8 GB.
