Cisco ISR4221-AX/K9 | ISR 4221 Router, 2x NIM, AX Bundle, 35-75 Mbps

ISR4221-AX/K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

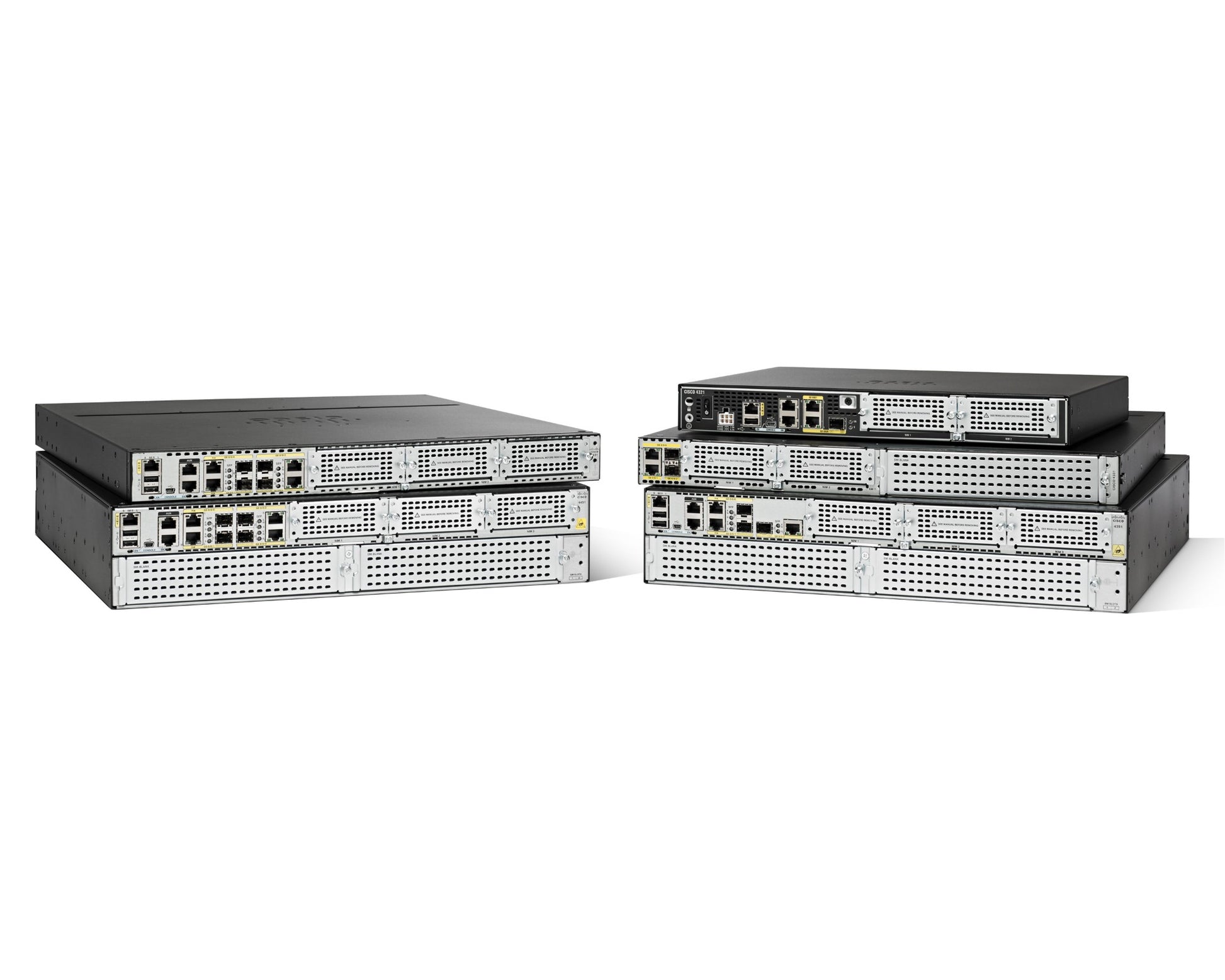

The ISR 4221 is a compact 1RU branch router from the Cisco 4000 Series Integrated Services Routers, running modular IOS XE. It is aimed at small and mid-size branch or remote-site WAN edges that need routing, secure VPN, application-aware services and SD-WAN with modular LTE or other WAN links.

This AX bundle SKU includes the Application Experience software package with the Security feature set. Application Experience adds advanced routing, application visibility and network monitoring, while the Security licence enables IPsec WAN link security and VPN services. Aggregate throughput is 35 Mbps by default and rises to 75 Mbps with the Performance licence, with a CEF-only boost throughput of 1.2 Gbps. Hardware includes 2 onboard 10/100/1000 RJ-45 ports, 1 SFP-based port, 2 NIM slots, 4 GB DDR3 ECC memory and 8 GB of flash. It is powered by an external AC supply and does not support PoE.

The two NIM slots accept modules from the 4000 Family NIM portfolio, such as 4G LTE, serial, T1/E1 and xDSL, so WAN options can be matched to each site. Embedded Catalyst SD-WAN capability is available on IOS XE, and the router supports optional 19-inch rack mounting as well as wall mounting.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular Cisco IOS XE software with a single universal image and performance-on-demand licensing
- Embedded Cisco Catalyst SD-WAN support for business-class internet WAN connectivity
- Application Experience software bundle with advanced routing and network monitoring
- Security services including DMVPN, zone-based firewall, intrusion prevention and cloud web security
- Embedded IPsec VPN hardware acceleration with the Security licence
- Secure boot, code signing and hardware authentication
- NIM slots for flexible WAN options such as T1/E1, serial, xDSL and 4G LTE modules
- Remote performance upgrade from 35 to 75 Mbps via software licence, with no hardware change

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Onboard ports: 2 x 10/100/1000 RJ-45 WAN/LAN
- SFP-based ports: 1 (shared with one of the onboard GE ports)
- NIM slots: 2
- Aggregate throughput (default): 35 Mbps
- Aggregate throughput (Performance licence): 75 Mbps
- Aggregate CEF-only throughput (boost): 1.2 Gbps
- Default memory: 4 GB DDR3 ECC
- Flash memory: 8 GB
- USB: 1 x USB 2.0 type A
- Console: 1 x RJ-45 combo CON/AUX port
- Power supply: external AC, 100 to 240 VAC autoranging, 47 to 63 Hz
- Typical power (no modules): 24 W
- Maximum power: 90 W
- PoE: Not supported
- Dimensions (H x W x D): 43.7 x 322.6 x 254 mm
- Rack height: 1 RU, 19 in rack-mount optional, wall-mount supported
- Weight (no modules): 3.22 kg
- Airflow: I/O side to bezel side
- Operating temperature: 0 to 40 C
- Operating relative humidity: 5% to 85%
- MTBF: 593,270 hours

FAQs

Q: What licensing does the ISR4221-AX/K9 include?
A: The AX bundle includes the Application Experience software package with the Security feature set, which enables IPsec WAN link security and VPN services. The Performance licence raises aggregate throughput from 35 Mbps to 75 Mbps.

Q: Does the ISR 4221 support PoE?
A: No. It does not support PoE and uses a single external AC power supply (100 to 240 VAC) with no redundant PSU option. Typical draw is 24 W with no modules and maximum is 90 W.

Q: What can be fitted in the NIM slots?
A: The two NIM slots accept modules from the 4000 Family NIM portfolio, such as 4G LTE, serial, T1/E1 and xDSL. The router has no SM-X or ISC slots.

Q: Can the throughput be increased?
A: Yes. Aggregate throughput defaults to 35 Mbps and can be raised to 75 Mbps with the Performance licence, applied remotely with no hardware change.

Q: How does the AX bundle differ from other ISR 4221 SKUs?
A: The AX bundle combines the Application Experience package with the Security feature set, giving advanced routing, application visibility and monitoring alongside IPsec VPN services on the 35 to 75 Mbps aggregate platform.
