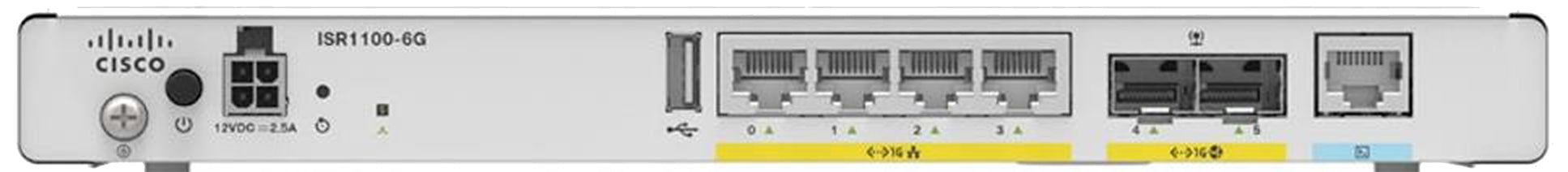

• Cisco ISR1100-6G router with yellow and blue cables
1 1

Cisco

Cisco ISR1100-6G | ISR 1100 Router, 4x GE RJ45, 2x SFP, 4GB DRAM

ISR1100-6G

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR1100-6G is a compact wired branch router from the Cisco ISR 1100 Series, built to run Cisco SD-WAN under Viptela OS or IOS XE SD-WAN in controller mode. It suits remote offices, branch offices and campus perimeters where a secure SD-WAN overlay needs to span mixed WAN transports such as broadband, MPLS, and fibre or copper via SFP.

This ISR 1100 (non-X) model provides four 10/100/1000 RJ-45 WAN/LAN ports and two Gigabit SFP-capable ports, with 4 GB of fixed DDR4 ECC DRAM, 8 GB eMMC bulk flash and dual 16 MB serial flash. SD-WAN IPsec throughput is 1889 Mbps with 1400-byte packets and 972 Mbps with IMIX traffic, with up to 1500 SD-WAN overlay tunnels on IOS XE SD-WAN 17.12.1. It runs from an external 30 W AC adapter, has no PoE, and includes a USB 3.0 Type-A port and an RJ45 console port. Dimensions are 259 x 178 x 28 mm and weight is 1.21 kg.

Supported SFPs include VIP-SFP-1GE-BASET, VIP-SFP-1GE-LX, VIP-SFP-1GE-SX, GLC-TE, GLC-SX-MMD and GLC-LH-SMD. The router is managed centrally through Cisco vManage with zero-touch provisioning.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco SD-WAN with zero-touch provisioning via vManage
- Multicore architecture with a dedicated control plane and multicore data plane
- Redundant WAN connections for failover and load balancing, plus VRRP
- IPsec and AES encryption with UEFI secure boot and Cisco anticounterfeit functionality
- Enterprise Firewall with Application Awareness and DNS Web Layer Security
- On-demand remote IPsec performance licence upgrade with no hardware change
- Compact, low-power, fanless-class branch form factor
- TACACS+, RADIUS and local role-based access control

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: ISR1100-6G
- WAN/LAN Gigabit copper ports: 4 x 10/100/1000 RJ-45
- SFP ports: 2 x 1GE SFP-capable (fibre or copper via SFP/RJ-45)
- Memory: 4 GB fixed DDR4 ECC DRAM
- Bulk flash: 8 GB eMMC pSLC (5.8 GB usable)
- Serial flash: dual 16 MB fixed
- SD-WAN IPsec throughput (1400 B): 1889 Mbps
- SD-WAN IPsec throughput (IMIX): 972 Mbps
- SD-WAN overlay tunnels: 1500 (IOS XE SD-WAN 17.12.1)
- USB: 1 x USB 3.0 Type-A (4.5 W)
- Management ports: RJ45 console/AUX
- Integrated LTE: None
- Power supply: external 30 W adapter, 100 to 240 VAC, 50 to 60 Hz, +12 VDC output
- PoE: None
- Dimensions (W x D x H): 259 x 178 x 28 mm
- Weight: 1.21 kg
- Operating temperature: 0 to 40 C at sea level
- Operating humidity: 0 to 95% relative humidity, non-condensing
- Maximum operating altitude: 3000 m
- Software: Viptela OS 19.2 and above, or IOS XE SD-WAN 17.4.1 and above (controller mode)

FAQs

Q: Does the ISR1100-6G need a licence or subscription?
A: It runs under Cisco SD-WAN, using Viptela OS or IOS XE SD-WAN in controller mode. Advanced features are enabled by activating a software licence on the image, and NETWORK-PNP-LIC supports zero-touch deployment.

Q: How is it powered?
A: It uses an external 30 W AC adapter (341-100891-01) accepting 100 to 240 VAC, 50 to 60 Hz, with a +12 VDC output. It does not provide PoE.

Q: Which SFP modules does it support?
A: Supported SFPs are VIP-SFP-1GE-BASET, VIP-SFP-1GE-LX and VIP-SFP-1GE-SX, plus GLC-TE, GLC-SX-MMD and GLC-LH-SMD on newer software releases.

Q: How does it differ from other ISR 1100 models?
A: This is the ISR 1100 (non-X) with four Gigabit copper ports, two SFP ports and 4 GB DRAM. It has no integrated LTE.

Q: How is it managed?
A: It is managed centrally through Cisco vManage, with a separate RJ45 console port for local management.
