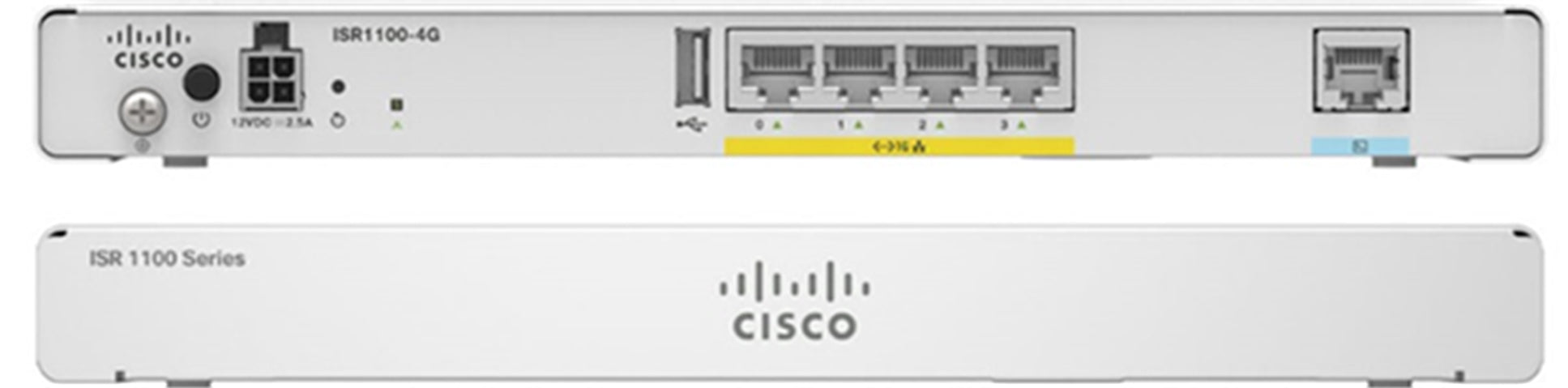

• Cisco ISR1100-4G router with 4x 1G ports and sleek white design
1 1

Cisco

Cisco ISR1100-4G | ISR 1100 Router, 4x 1G RJ45 LAN/WAN, 4 GB DRAM

ISR1100-4G

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ISR 1100 Series ISR1100-4G is a compact SD-WAN branch router built for remote sites that need secure data, voice and video services over broadband. It runs Cisco SD-WAN and is managed through Cisco vManage with zero-touch provisioning, so it suits distributed networks that are administered centrally.

This model provides four 10/100/1000 RJ45 WAN/LAN ports, with no SFP ports and no integrated LTE. It has 4 GB of fixed DDR4 ECC DRAM, 8 GB eMMC bulk flash, one USB 3.0 Type-A port and an RJ45 console port. SD-WAN IPsec throughput is 477 Mbps at 1400 byte packets and 411 Mbps with IMIX traffic, with support for up to 250 SD-WAN overlay tunnels. Power comes from an external 30 W AC adapter with universal 100 to 240 VAC input, and the unit measures 259 x 178 x 28 mm.

The router operates as a Cisco SD-WAN edge on Viptela OS 19.2 and above, or IOS XE SD-WAN 17.4.1 and above in controller mode. Enterprise Firewall with Application Awareness and DNS Web Layer Security are supported, along with UEFI secure boot and Cisco anticounterfeit technology.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multicore architecture with a dedicated control plane and multicore data plane
- Runs Cisco SD-WAN with zero-touch provisioning via Cisco vManage
- Redundant WAN connections for failover and load balancing, with VRRP support
- IPsec/AES encryption backed by a hardware trust anchor
- Enterprise Firewall with Application Awareness and DNS Web Layer Security
- App-aware routing based on SLAs
- SNMP, Netconf over SSH, CLI and REST (vManage) management
- UEFI secure boot and Cisco anticounterfeit technology

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: ISR1100-4G (ISR 1100 Series)
- WAN/LAN Gigabit Ethernet (copper) ports: 4 x 10/100/1000 RJ45
- SFP ports: 0
- Integrated LTE: None
- USB: 1 x USB 3.0 Type-A, 4.5 W
- Console: RJ45 console/AUX port
- DRAM: 4 GB fixed DDR4 ECC
- Serial flash: fixed dual 16 MB
- Bulk flash: 8 GB eMMC pSLC (5.8 GB usable)
- SD-WAN IPsec throughput (1400 bytes): 477 Mbps
- SD-WAN IPsec throughput (IMIX): 411 Mbps
- SD-WAN overlay tunnels: 250
- Power supply: external 30 W AC adapter, 100 to 240 VAC, 50 to 60 Hz, +12 VDC output
- Dimensions (W x D x H): 259 x 178 x 28 mm
- Weight: 1.21 kg
- Operating temperature: 0 to 40 C at sea level
- Operating altitude: up to 3000 m
- Operating humidity: 0 to 95% RH non-condensing
- Supported software: Viptela OS 19.2 and above, IOS XE SD-WAN 17.4.1 and above (controller mode)

FAQs

Q: What software does the ISR1100-4G run?
A: It operates as a Cisco SD-WAN edge, running Viptela OS 19.2 and above or IOS XE SD-WAN 17.4.1 and above in controller mode. It is managed through Cisco vManage.

Q: Does it have SFP ports or built-in LTE?
A: No. This model has four copper Gigabit RJ45 WAN/LAN ports only, with no SFP ports and no integrated LTE.

Q: How is the ISR1100-4G powered?
A: It uses an external 30 W AC adapter with universal 100 to 240 VAC input and +12 VDC output. PoE is not provided.

Q: Which licence does it need?
A: It runs a single SD-WAN software image that is activated through licensing, and advanced features are enabled by activating a software licence on that image. A Network Plug-n-Play licence is used for zero-touch deployment.

Q: Which cables and accessories does it work with?
A: Supported accessories include CAB-CONAUX, CAB-CONSOLE-RJ45 and CAB-ETH-S-RJ45 console cables, as well as the LTE antennas and dongles LTE-ADPT-SM-TF, LTE-AE-MAG-SMA, LTE-ANTM-SMA-D and D-LTE-GB. USB 3.0 flash storage is also supported.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
