• Cisco IE-9320-26S2C-A 24-port SFP switch with buttons
1 1

Cisco

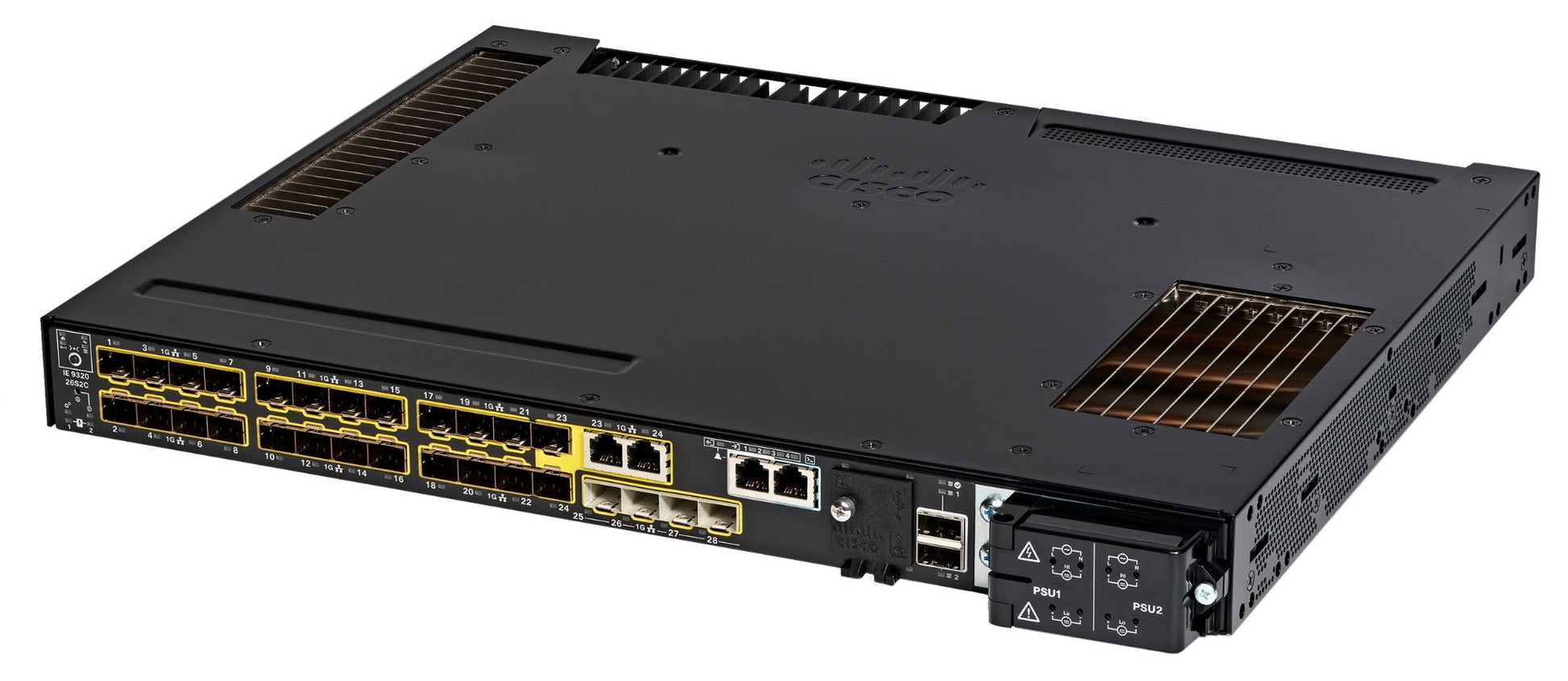

Cisco IE-9320-26S2C-A | Catalyst IE9300 Rugged 24-Port Gigabit SFP Switch, 4x 1G SFP, Industrial

IE-9320-26S2C-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IE-9320-26S2C-A is a rugged industrial Ethernet switch designed for harsh environments, featuring 24 Gigabit SFP downlink ports and 4 Gigabit SFP uplink ports. With a fanless design rated for -40°C to 75°C operation, it delivers reliable Layer 2 and Layer 3 networking for manufacturing, energy, transportation, and smart city applications. Includes Network Advantage license with advanced routing, stacking, and security features.

Features

Cisco IOS XE operating system with Secure Boot and Trust Anchor module
- Full Layer 2 and Layer 3 switching with advanced routing protocols (OSPF, EIGRP, BGP)
- StackWise backplane stacking technology (160 Gbps stack bandwidth)
- Advanced security: TrustSec, MACsec encryption, 802.1X authentication, VLAN segmentation
- Industrial protocol support: PROFINET, EtherNet/IP (CIP), Modbus TCP
- IEEE 1588v2 Precision Time Protocol (PTP) for high-precision time synchronization
- Lossless redundancy: REP, PRP, MRP, HSR for carrier-class uptime
- Quality of Service (QoS): 8 hardware queues, traffic prioritization
- Flexible NetFlow (FNF) for real-time traffic visibility and security analytics
- Perpetual PoE support (on PoE models) maintains power during switch reload
- Zero-touch stack replacement for simplified maintenance
- Dual AC/DC power inputs for redundancy
- SD-Access fabric edge support with Network Advantage license
- Cisco Catalyst Center management and automation support
- VLAN support: up to 1,024 VLANs, 4,000 IPv4 routes, 128 STP instances
- ACL support: 1,408 entries for granular access control
- DIN rail and rack-mount installation options

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Total Ports: 28 (22 x Gigabit SFP + 2 x combo SFP/RJ45 + 4 x Gigabit SFP uplinks)
- Port Speed: Gigabit Ethernet (10/100/1000M)
- Switching Capacity: 56 Gbps
- Forwarding Rate: 41.66 Mpps
- Memory: 4 GB DRAM, 8 GB flash (2.5 GB user-accessible)
- Stacking: 2 x StackWise ports, up to 4 switches per stack
- Management: Cisco IOS XE, CLI, Web UI, SNMP, Cisco Catalyst Center
- Operating Temperature: -40°C to 75°C (fanless, convection-cooled)
- Power Consumption: 64W typical
- Power Input: Dual AC/DC power inputs
- Dimensions (H x W x D): 1.73 x 17.5 x 14 inches (1U rack-mountable)
- Console Ports: 1 x RS-232 (RJ-45), 1 x Micro USB
- Alarm Inputs/Outputs: 4 dry-contact alarm inputs, 1 Form-C relay alarm output
- Software License: Network Advantage (perpetual)
- Optional Storage: USB 2.0, SD card slot

FAQs

Q: What makes this switch suitable for industrial environments?
A: The IE-9320-26S2C-A features a fanless, convection-cooled design rated for -40°C to 75°C operation with IEC-tested shock and vibration immunity. It is purpose-built for harsh environments in manufacturing, energy, transportation, mining, and smart cities.

Q: What is the difference between Network Essentials and Network Advantage licenses?
A: Network Advantage includes full Layer 3 routing capabilities, advanced security features like TrustSec and MACsec, Flexible NetFlow, and SD-Access fabric support. Network Essentials provides Layer 2 switching with basic Layer 3 static routing only.

Q: How many switches can be stacked together?
A: The IE-9320-26S2C-A supports stacking up to 4 switches in a single logical stack using the built-in StackWise ports, simplifying management and increasing port density.

Q: Does this switch support industrial automation protocols?
A: Yes, the IE-9320-26S2C-A supports EtherNet/IP (CIP), PROFINET, IEEE 1588v2 Precision Time Protocol (PTP), and lossless redundancy protocols including REP, PRP, MRP, and HSR for carrier-class uptime.

Q: What type of SFP modules are compatible with this switch?
A: The switch supports 100/1000M SFP modules for fiber connectivity. The two combo ports accept either 100/1000M SFP modules or 10/100/1000M copper RJ45 connections. Cisco-compatible SFP transceivers are recommended for optimal performance.
