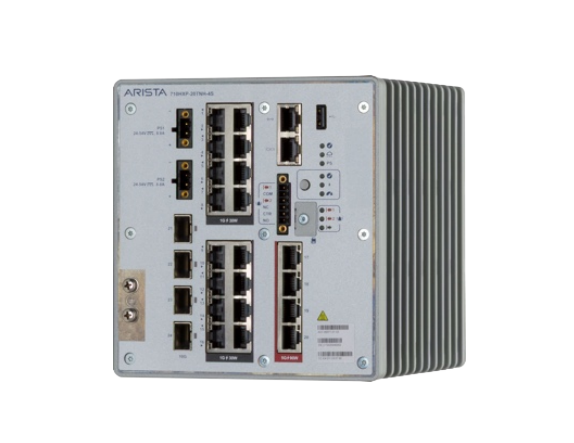

• Silver arista ccs-710hxp-20tnh-4s 16-port gigabit poe+ industrial switch with ribbed side panel and multiple ethernet ports
1 1

Arista

Arista CCS-710HXP-20TNH-4S | 710HXP 16-Port Gigabit PoE+ Industrial Switch, 4x 5G, 4x 10G SFP+

CCS-710HXP-20TNH-4S

Stock Status: Enquire

Request Quote
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Arista CCS-710HXP-20TNH-4S is a ruggedized industrial switch designed for harsh environments requiring extended temperature operation from -40°C to 75°C. Featuring 16x 1G PoE ports, 4x 5 Gbps multi-gigabit PoE ports supporting up to 90W per port, and 4x 10G SFP+ uplinks, this fanless switch is ideal for industrial automation, manufacturing, and outdoor deployments. With IP30 rating, DIN rail mounting, and CloudVision CUE management, it delivers enterprise-grade cognitive campus networking capabilities in demanding industrial settings.

Features

Arista EOS operating system with full Layer 2 and Layer 3 routing capabilities
- Extended temperature range: -40°C to 75°C for harsh industrial environments
- Fanless design for silent operation in noise-sensitive environments
- IP30 rating for protection against 2.5mm particles
- 802.3bt PoE++ support up to 90W on multi-gigabit ports
- CloudVision CUE integration for simplified edge network management
- Zero Touch Provisioning (ZTP) for automated deployment
- 802.1X and RADIUS authentication for network security
- VXLAN and EVPN support for advanced network segmentation
- FlowTracker for real-time telemetry and application visibility
- Vibration-proof construction for industrial reliability
- DIN rail mounting with optional wall and rack mount kits
- Support for 1G and 10G pluggable optics and DAC cables
- MAC address table: 16K entries
- Continuous PoE support for uninterrupted power during reboots

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Total Ports: 24 (16x 1G PoE+, 4x 5 Gbps multi-gigabit PoE, 4x 10G SFP+)
- PoE Budget: 30W per 1G port, 90W per 5G multi-gigabit port (802.3af/at/bt)
- Power Supply: 2x external PSUs (sold separately)
- Operating Temperature: -40°C to 75°C (-40°F to 167°F)
- Form Factor: Fanless, DIN rail mount (default bracket included)
- Protection Rating: IP30 for particle protection
- Memory: 8 GB RAM, 20 GB flash storage
- Switching Capacity: Non-blocking architecture
- Management: CloudVision CUE, CLI, SNMP, SSH, Zero Touch Provisioning
- Layer 2/3 Features: VLANs, VXLAN, EVPN, 802.1X authentication, RADIUS
- Certifications: Industrial-grade, vibration-proof construction

FAQs

Q: What environments is the CCS-710HXP-20TNH-4S designed for?
A: This switch is purpose-built for industrial environments requiring extended temperature operation from -40°C to 75°C, vibration resistance, and IP30 particle protection. Ideal for manufacturing floors, warehouses, outdoor installations, and harsh industrial settings.

Q: Does this model include power supplies?
A: No, the CCS-710HXP-20TNH-4S uses two external power supply units that are sold separately. This allows flexibility in power configuration for different industrial deployment scenarios.

Q: What is the PoE capability of the multi-gigabit ports?
A: The four 5 Gbps multi-gigabit ports support up to 90W per port using 802.3bt PoE++, while the sixteen 1G ports support up to 30W per port using 802.3af/at, making it suitable for high-power devices like PTZ cameras and industrial sensors.

Q: How is this switch managed?
A: The switch runs Arista EOS and supports CloudVision CUE for cloud-based management with Zero Touch Provisioning, as well as traditional CLI, SNMP, and SSH management protocols for flexible deployment options.

Q: What mounting options are available?
A: The switch includes a default DIN rail mounting bracket. Optional accessories include spare DIN brackets, wall mount kits, and a DIN rail rackmount kit for standard 19-inch rack installation.
