• Cisco IE-9320-24T4X-E 24-port Gigabit Ethernet switch with 4x 10G SFP+ uplinks
1 1

Cisco

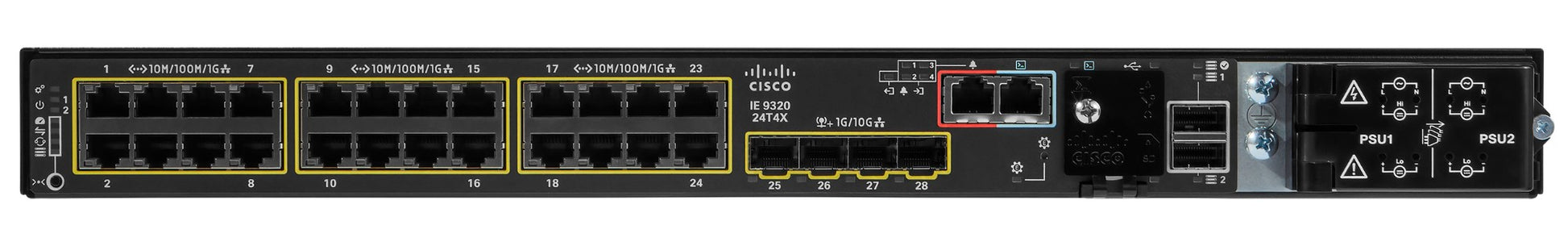

Cisco IE-9320-24T4X-E | Catalyst IE9300 Rugged 24-Port Gigabit Switch, 4x 10G SFP+, Rugged

IE-9320-24T4X-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IE-9320-24T4X-E is a rugged industrial Layer 2/3 switch delivering 24 Gigabit Ethernet copper ports and 4 x 10G SFP+ uplinks in a compact 1RU rack-mount chassis. Engineered for harsh environments in manufacturing, energy, transportation, and utilities, it operates from -40°C to 75°C and is IEC 61850-3 compliant. Ships with Network Essentials license and includes hardware stacking support for up to 4 units.

Features

Layer 2 and Layer 3 switching with advanced routing protocols (OSPF, EIGRP, BGP on Network Advantage)
- Hardware-based StackWise-160 stacking supporting up to 4 switches
- Cisco IOS XE operating system with Secure Boot, image signing, and Trust Anchor module
- Industrial-grade construction: fanless, IP30-rated, -40°C to 75°C operating range
- Redundant hot-swappable AC/DC power supplies (dual power supply slots)
- High-precision IEEE 1588v2 PTP (Precision Time Protocol) synchronization
- MACsec-128 encryption (Network Essentials), MACsec-256 (Network Advantage)
- Alarm inputs (4) and alarm output (1) for integration with industrial monitoring systems
- Quality of Service (QoS) with 8 egress queues and advanced traffic shaping
- Multicast routing and switching with IGMP snooping, PIM-SM, PIM-SSM
- Spanning Tree Protocol (STP, RSTP, MSTP) and FlexLink for resilient topologies
- Comprehensive security: 802.1X, RADIUS, TACACS+, ACLs, DHCP snooping, Dynamic ARP Inspection
- SD-Access fabric edge support with LISP and VXLAN (Network Advantage)
- Optional SD card and USB storage for configuration backup and IOS XE image loading
- Cisco Catalyst Center and DNA Center integration for centralized provisioning and monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24 x 10/100/1000 RJ45 copper downlink ports (non-PoE)
- 4 x 1G/10G SFP+ uplink ports
- Switching capacity: 128 Gbps full-duplex
- Forwarding rate: 95.23 Mpps
- MAC address table: 24,000 entries (enhanced scale from IOS XE 17.17.1+)
- Memory: 4 GB DRAM, 2.5 GB user-accessible flash
- VLAN support: 4096 VLAN IDs (up to 1024 active)
- Management: Cisco IOS XE, CLI, WebUI, SNMP, Cisco Catalyst Center compatible
- Power consumption: 35W (chassis only, excluding SFP modules)
- Operating temperature: -40°C to 75°C (-40°F to 167°F)
- Dimensions: 1.72 x 17.5 x 14.0 in (4.37 x 44.45 x 35.56 cm)
- Form factor: 1RU rack-mount, fanless, IP30-rated chassis
- Certifications: IEC 61850-3, IEC 62443-4-1/4-2, NEMA TS2, FIPS 140-2, Common Criteria

FAQs

Q: What is the difference between the IE-9320-24T4X-E and IE-9320-24T4X-A?
A: The -E model ships with the Network Essentials license, while the -A model includes the Network Advantage license. Network Advantage adds advanced Layer 3 routing, TrustSec, MACsec-256, and enhanced security features. Both models support the same hardware capabilities.

Q: Does this switch support Power over Ethernet?
A: No, the IE-9320-24T4X-E is a data-only model without PoE capability. For PoE requirements, consider the IE-9320-24P4X series which supports PoE+ on all 24 copper ports.

Q: Can this switch be stacked with other IE9300 models?
A: Yes, the IE-9320-24T4X-E supports hardware stacking via StackWise-160. Up to 4 units can be stacked and managed as a single logical switch, providing up to 112 Gigabit Ethernet ports in a stack.

Q: What industrial certifications does this switch hold?
A: The switch is certified to IEC 61850-3 for utility substations, IEC 62443-4-1 and 62443-4-2 for industrial security, NEMA TS2 for transportation, and carries FIPS 140-2 and Common Criteria certifications. It operates across extended temperature ranges and withstands shock and vibration.

Q: Is Cisco Cyber Vision included with this model?
A: Network Essentials models do not include Cisco Cyber Vision by default. However, the Network Advantage variant (IE-9320-24T4X-A) purchased after August 23, 2025, includes a 3-year limited term license for Cisco Cyber Vision (24 endpoints) and Secure Equipment Access at no extra cost.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
