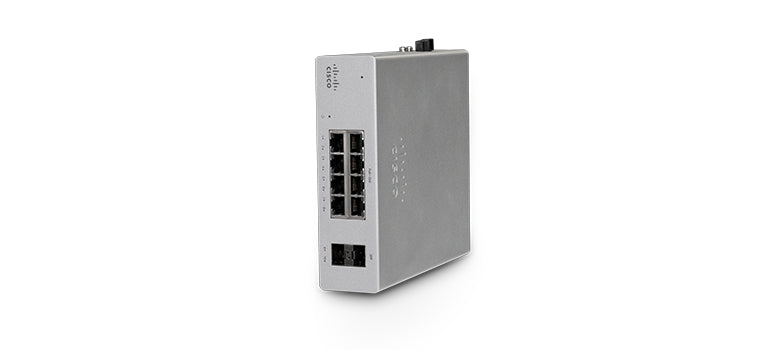

• Meraki MS130R-8P-HW ruggedized 8-port PoE+ cloud-managed switch
1 1

Meraki

Meraki MS130R-8P-HW | MS130R 8-Port Gigabit PoE+ Ruggedized Switch, 240W

MS130R-8P-HW

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Meraki MS130R-8P-HW delivers cloud-managed Layer 2 switching for ruggedized environments with IP30 protection and extended operating temperatures from -40°C to 70°C. With 8 Gigabit PoE+ ports delivering up to 240W total power budget, this fanless switch is ideal for outdoor deployments, industrial facilities, and remote edge sites powering access points, IP cameras, and IoT sensors. Flexible mounting options including rack, wall, and DIN rail make it adaptable to non-traditional spaces where reliability is critical.

Features

Cloud-managed via Meraki Dashboard with zero-touch provisioning
- Virtual stacking for simplified network-wide configuration changes
- Layer 2 switching with 20 Gbps non-blocking fabric
- 802.1Q VLAN tagging for network segmentation
- 802.1X authentication and DHCP snooping for enhanced security
- IPv4 and IPv6 Access Control List (ACL) support
- Quality of Service (QoS) for voice and video prioritization
- DHCP relay functionality
- Remote packet capture and cable testing tools
- SNMP and syslog integration for third-party monitoring
- Automatic firmware updates via cloud
- Real-time network topology visualization
- Comprehensive security reporting and alerting
- Dynamic power allocation for PoE devices
- SFP module support for fiber connectivity (MA-SFP-1GB-TX, MA-SFP-1GB-LX10, MA-SFP-1GB-SX and Cisco GLC modules)
- Hardware-ready for Adaptive Policy with future firmware upgrade and Advanced license

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

8 × 1GbE RJ45 PoE+ ports (802.3bt, 30W per port)
- 2 × 1GbE SFP uplinks
- Total PoE budget: 240W with dynamic power allocation
- Switching capacity: 20 Gbps non-blocking
- Operating temperature: -40°C to 70°C (-40°F to 158°F)
- IP30-rated ruggedized metal enclosure
- Fanless operation for silent deployment
- Mounting options: rack, wall, or DIN rail
- Power input: 50-54VDC via external AC adapter or DIN rail power supply (sold separately)
- Management: Cloud-managed via Meraki Dashboard
- Dimensions: 1.1 × 8.74 × 6 in (2.8 × 22.2 × 15 cm)
- Weight: 1.94 lb (0.88 kg)

FAQs

Q: What makes the MS130R-8P suitable for harsh environments?
A: The MS130R-8P features an IP30-rated ruggedized enclosure, fanless design, and extended operating temperature range from -40°C to 70°C. It can be powered via external AC adapter or DIN rail power supply, with flexible mounting options for rack, wall, or DIN rail installation, making it ideal for outdoor, industrial, and extreme-temperature deployments.

Q: How much PoE power can this switch deliver?
A: The MS130R-8P provides up to 240W total PoE budget across 8 ports, with each port supporting up to 30W via 802.3bt PoE+ standard. This is double the power budget of the standard MS130-8P, making it suitable for powering high-demand devices like outdoor access points, PTZ cameras, and environmental sensors simultaneously.

Q: Does this switch require a license to operate?
A: Yes, the MS130R-8P requires a Meraki MS license (Enterprise or Advanced tier) for cloud management and operation. Licenses are available in 1-, 3-, 5-, 7-, and 10-year terms for Enterprise, and 1-, 3-, and 5-year terms for Advanced. The license enables access to the Meraki Dashboard for configuration, monitoring, and remote troubleshooting.

Q: Can the MS130R-8P be integrated with other Meraki products?
A: Yes, the MS130R-8P integrates seamlessly with the full Meraki ecosystem including MR wireless access points, MV cameras, MT sensors, and MX security appliances. All devices are managed through a single Meraki Dashboard, providing unified visibility and centralized policy enforcement across your entire network infrastructure.

Q: What are typical use cases for the MS130R-8P?
A: Common deployments include outdoor Wi-Fi networks, surveillance camera systems in parking structures or campuses, industrial facilities and warehouses with extreme temperatures, retail drive-throughs and pop-up locations, smart city infrastructure like kiosks and digital signage, and remote sites requiring compact, ruggedized connectivity with PoE power for edge devices.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
