• Aruba JL817A 4100H PoE switch with 12x 1GbE ports and 2x 10GbE SFP+ uplinks
1 1

Aruba

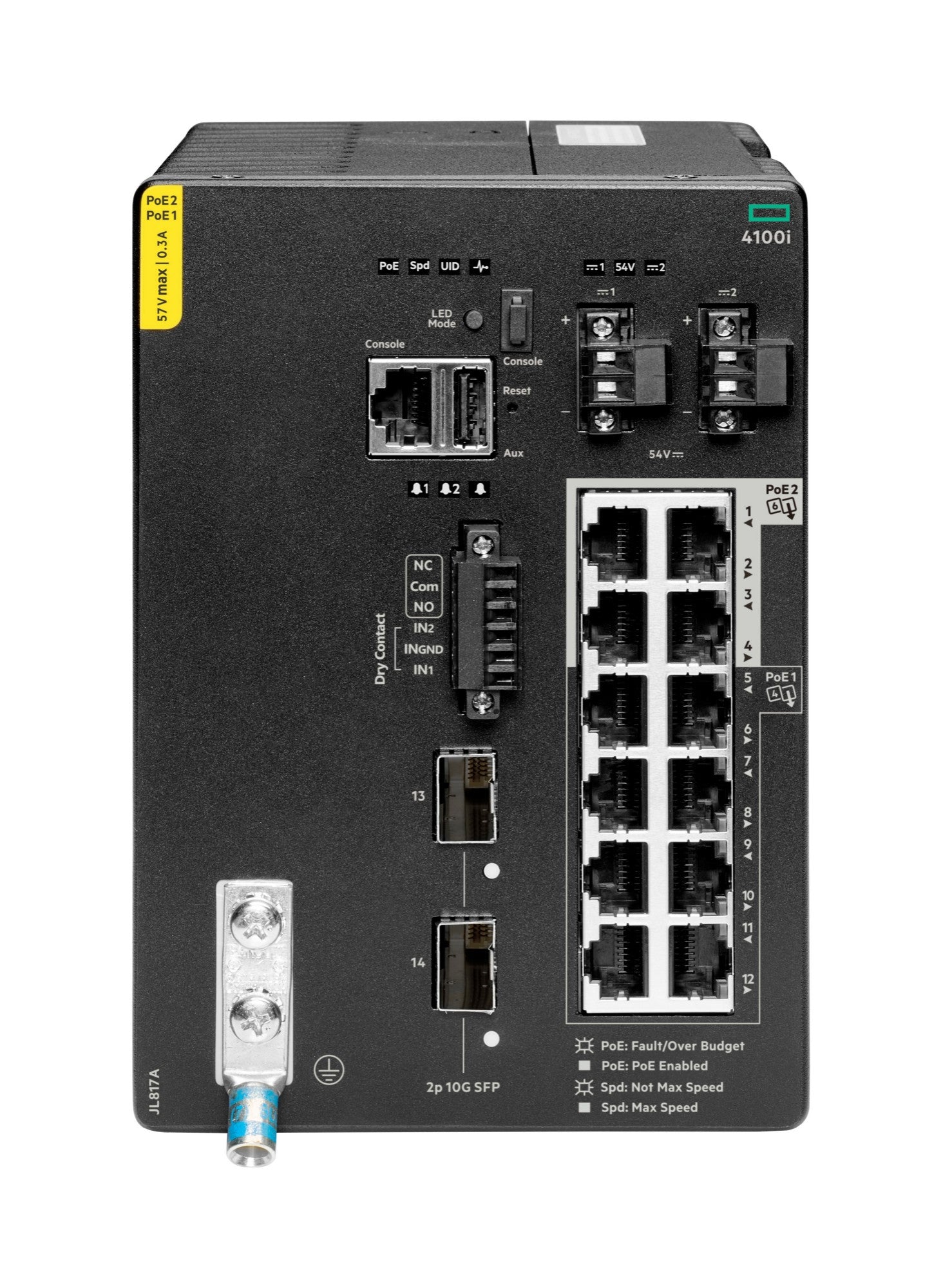

Aruba JL817A | CX 4100i DIN Mount Switch, 12x 1GbE RJ45, 8x Class 4 PoE, 4x Class 6 PoE, 2x SFP+

JL817A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

Hardened Layer 2 industrial switch with 12x 1G copper access ports, mixed 802.3at/802.3bt PoE for edge devices, and 2x 10G SFP+ uplinks for high-speed aggregation. Fanless, DIN-rail mountable design with extended temperature operation and 54VDC input powered via external PSU.

Features

- Industrial-grade, extended temperature operation
- Mixed PoE with 802.3bt Type 3 for higher-power devices
- Dual 10GbE SFP+ uplinks for resilient backhaul
- Fanless design for silent, dust-resistant operation
- AOS-CX software with modern automation and visibility
- Compact DIN-rail form factor

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Access ports: 12x 10/100/1000BASE-T
- PoE allocation: 8x Class 4 (up to 30W), 4x Class 6 (up to 60W) per port
- PoE standards: IEEE 802.3af/at and 802.3bt Type 3
- Uplinks: 2x SFP+ 1/10GbE
- PoE budget: dependent on external 54VDC PSU (up to PSU wattage)
- System power input: 54 VDC (external power supply required)
- Mounting: DIN-rail
- Operating temperature: -40 to +70°C
- Cooling: fanless, passive convection
- Software: AOS-CX included; no additional feature licenses for L2 access
- Management: CLI, Web UI, REST API, SNMP
- Layer 2 features: VLANs, RSTP/MSTP, LLDP, IGMP snooping, QoS, ACLs
- Link aggregation: IEEE 802.1AX/LACP

FAQs

Q: What power supply do I need?
A: Use an external 54VDC DIN-rail PSU sized for your PoE load (e.g., 240W for moderate PoE usage).

Q: Is a license required for basic features?
A: No. AOS-CX software is included for L2 access switching and management.

Q: What is the speed of the fiber uplinks?
A: Two SFP+ uplinks support 1/10GbE, depending on the installed transceivers.

Q: Can it be wall-mounted?
A: DIN-rail mounting is standard; other mounting options may be available via accessories.

Q: Is this suitable for harsh environments?
A: Yes, it is designed for industrial temperature ranges with fanless operation.
