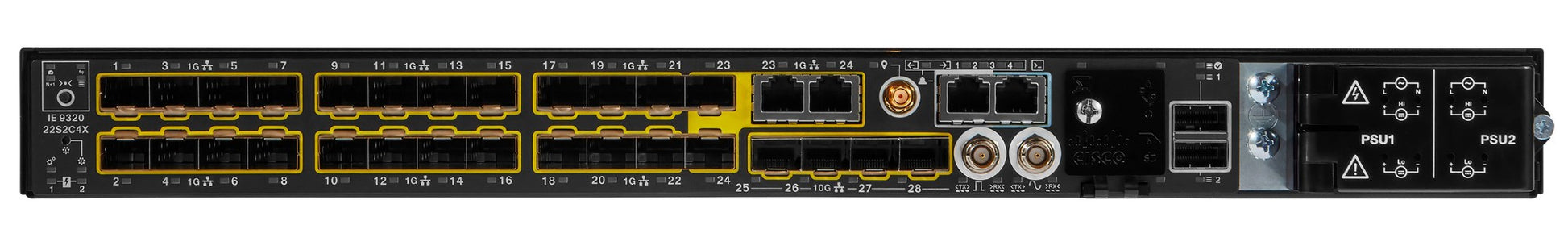

• Cisco IE-9320-22S2C4X-E switch with 22x 1G SFP ports and 4x 10G uplinks
1 1

Cisco

Cisco IE-9320-22S2C4X-E | Catalyst IE9300 Rugged 24-Port Gigabit SFP/RJ45 Switch, 4x 10G SFP+, Layer 3

IE-9320-22S2C4X-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IE-9320-22S2C4X-E is a rugged Layer 3 industrial Ethernet switch engineered for harsh environments including manufacturing, utilities, and transportation. With 22 Gigabit SFP ports, 2 dual-media combo ports, and 4 high-speed 10G SFP+ uplinks, it delivers flexible fiber and copper connectivity for mission-critical applications. Running Cisco IOS XE, the switch supports precision timing with GNSS and IRIG-B, StackWise stacking up to 4 units, and full industrial protocol compatibility including PROFINET, EtherNet/IP, and Modbus TCP.

Features

Layer 3 switching with advanced routing protocols including OSPF, EIGRP, BGP, and static routing
- Cisco IOS XE operating system with Secure Boot, image signing, and Trust Anchor module for hardware root of trust
- MACsec-256 encryption for data confidentiality and integrity on the wire
- Integrated GNSS receiver and IRIG-B connectors for precision timing and synchronization
- IEEE 1588v2 Precision Time Protocol (PTP) with power profile and default profile support
- StackWise technology supporting up to 4 switch stack with 80 Gbps stack bandwidth
- Full industrial protocol support: PROFINET, EtherNet/IP (CIP), Modbus TCP, HSR, PRP, REP, MRP
- Advanced security with dynamic ARP inspection, IP Source Guard, port security, and flexible NetFlow
- Cisco Cyber Vision integration for asset visibility and threat detection
- Dual redundant field-replaceable power supplies for high availability
- 4 dry-contact alarm inputs and 1 relay output for environmental monitoring
- Conformal coating for protection against moisture, dust, and corrosive environments
- Micro-USB console port, USB-A host port, and SD card slot for flexible management and storage
- True zero-touch replacement and Cisco DNA Center support for simplified operations
- Compliant with IEC 61850-3, IEEE 1613, EN 50121-4, and ATEX certifications for industrial deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Total Ports: 28 (22x 1G SFP, 2x dual-media 1G SFP/RJ45, 4x 10G SFP+ uplinks)
- Switching Bandwidth: 152 Gbps full-duplex
- Forwarding Rate: 95.23 Mpps
- Layer: Layer 2/Layer 3
- License: Network Essentials (default), Network Advantage available
- Memory: 4 GB DRAM
- Flash: Approximately 2.5 GB user-accessible
- Operating Temperature: -40°C to 75°C (blower cabinet), -40°C to 60°C (sealed), -40°C to 70°C (vented)
- Dimensions (H x W x D): 1.72 x 17.5 x 14.0 in (43.7 x 444.5 x 355.6 mm)
- Weight: 12.7 lb (5.76 kg)
- Power Consumption: 73W typical
- Power Inputs: Dual field-replaceable AC/DC power supplies
- Mounting: 1RU rack-mount, wall-mount, ETSI
- MTBF: 323,733 hours
- IP Rating: IP30
- Management: CLI, Web GUI, SNMP, Cisco DNA Center
- Timing: Integrated GNSS receiver (GPS/GLONASS/BeiDou), IRIG-B (analog/digital input/output), IEEE 1588v2 PTP
- Stacking: StackWise up to 4 units
- Alarm I/O: 4 dry-contact alarm inputs, 1 dry-contact relay output
- Compliance: IEC 61850-3, IEEE 1613, EN 50121-4, ATEX

FAQs

Q: What environments is the IE-9320-22S2C4X-E designed for?
A: The IE-9320-22S2C4X-E is purpose-built for harsh industrial environments including utility substations, manufacturing floors, transportation systems, mining, smart cities, and outdoor enclosures. It operates reliably from -40°C to 75°C and is resistant to vibration, shock, and electromagnetic interference.

Q: What industrial protocols does this switch support?
A: The switch natively supports PROFINET, EtherNet/IP (CIP), Modbus TCP, HSR (High-availability Seamless Redundancy), PRP (Parallel Redundancy Protocol), REP (Resilient Ethernet Protocol), and MRP (Media Redundancy Protocol), enabling seamless integration with industrial control systems and SCADA environments.

Q: What is the difference between Network Essentials and Network Advantage licenses?
A: Network Essentials provides core Layer 2/Layer 3 switching, industrial protocols, and essential security. Network Advantage adds advanced routing, MACsec encryption, Cisco TrustSec, SD-Access support, and enhanced security features. The IE-9320-22S2C4X-E ships with Network Essentials by default.

Q: Can this switch be stacked with other IE9300 models?
A: Yes, the IE-9320-22S2C4X-E supports StackWise stacking up to 4 units, providing centralized management, easy expansion, and resilient failover for evolving industrial network demands.

Q: What precision timing capabilities does the IE-9320-22S2C4X-E offer?
A: The switch includes an integrated GNSS receiver (GPS/GLONASS/BeiDou), IRIG-B timecode input/output connectors (analog and digital), and IEEE 1588v2 PTP support, enabling sub-microsecond time synchronization critical for automation, utility, and smart grid applications.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
