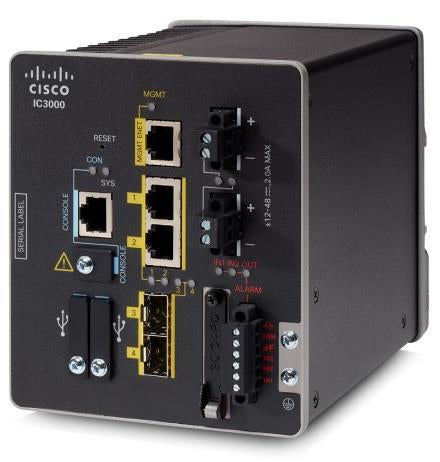

• Cisco IC3000 industrial router with Ethernet ports and USB connectors
1 1

Cisco

Cisco IC3000 | Industrial Compute Gateway, 2x RJ45, 2x SFP, DIN-Rail

IC3000

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco IC3000 is a ruggedised, DIN-rail mounted industrial compute gateway from the Cisco 3000 Series. It hosts IoT applications at the network edge using Cisco IOx, keeping analytics close to the data source. It suits intelligent roadways, smart factories and other harsh industrial IoT sites where traffic pattern detection, weather warnings or road condition monitoring need local processing.

The IC3000-2C2F-K9 provides two 10/100/1000 copper Ethernet ports and two SFP fibre ports, plus a dedicated 10/100/1000 management port. It is built on a 4-core Intel Rangeley industrial-temperature CPU with 8 GB of soldered DRAM, 16 GB of onboard flash, a 128 GB mSATA drive and an SD card slot. Dual internal DC power inputs accept 12, 24 or 48 VDC nominal (9.6 to 60 VDC range) at 24 W consumption. Two alarm inputs and one Form C alarm output relay are included.

The SFP ports accept the ruggedised GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-FE-100FX-RGD= and GLC-FE-100LX-RGD= modules. Devices and applications are managed at scale through Cisco IoT Field Network Director, which requires its own subscription licence.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Zero-touch provisioning to reduce IoT edge deployment cost
- Hosts edge applications in any language or OS, powered by Cisco IOx
- Device and application lifecycle management at scale with Cisco IoT Field Network Director
- Tamper-proof hardware with Anti-Counterfeit Technology 2 chip
- Secure boot loads only the genuine Cisco Linux kernel
- Hardware certificate-based authentication between IoT FND and the gateway
- Application signing, verification and container isolation
- AAA with role-based access control, RADIUS and LDAP authentication, and audit trails

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product number: IC3000-2C2F-K9
- Copper ports: 2 x 10/100/1000
- SFP fibre ports: 2
- Processor: 4-core Intel Rangeley (industrial temperature)
- Memory: 8 GB DRAM (soldered)
- Onboard flash: 16 GB
- Storage: 128 GB mSATA
- Expansion: SD card slot
- Console: Mini-USB and RJ-45 console connectors
- Management port: Dedicated 10/100/1000
- Alarm I/O: 2 alarm inputs (dry contact), 1 Form C alarm output relay
- Power input: Dual internal DC, 12/24/48 VDC nominal, 9.6 to 60 VDC range
- Power consumption: 24 W
- Dimensions (H x W x D): 13 x 11.2 x 16 cm (5.2 x 4.4 x 6.3 in)
- Weight: 1.9 kg (4.2 lb)
- Mounting: DIN-rail
- MTBF: 376,580 hours
- Hazardous locations: UL 121201 Class I Div 2 A-D, CSA C22.2 No 213, IECEx / ATEX Zone 2 (requires suitable enclosure)
- Industry standards: IEEE 1613, IEC 61850-3, NEMA TS-2, EN 50121-3-2, EN 50121-4, EN 50155
- Security hardware: Anti-counterfeit, anti-tamper chip

FAQs

Q: Does the IC3000 need a licence?
A: The IC3000-2C2F-K9 includes a perpetual licence for the gateway itself. Management through Cisco IoT Field Network Director needs a separate IOTFND-SOFTWARE-K9 subscription licence, available in 1, 3 or 5-year terms.

Q: How is the IC3000 powered?
A: It has dual internal DC inputs accepting 12, 24 or 48 VDC nominal, with a 9.6 to 60 VDC range, and draws 24 W. For AC supply, Cisco lists the external PWR-IE50W-AC= and PWR-IE50W-AC-IEC= power supplies.

Q: Which SFP modules does it support?
A: The ruggedised GLC-SX-MM-RGD= (1000BASE-SX), GLC-LX-SM-RGD= (1000BASE-LX/LH), GLC-FE-100FX-RGD= (100BASE-FX) and GLC-FE-100LX-RGD= (100BASE-LX).

Q: What software does it run and how is it managed?
A: It runs Cisco IOx for hosting containerised edge applications and is managed at scale through Cisco IoT Field Network Director. It also supports the Cisco Kinetic Edge and Fog Processing Module.

Q: Can it be installed in hazardous locations?
A: It is rated for UL 121201 Class I Div 2 A-D, CSA C22.2 No 213 and IECEx / ATEX Zone 2, provided it is deployed in a suitable enclosure such as IP54.
