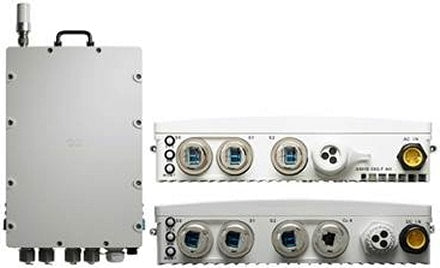

• Cisco A901S-4SG-F-D rugged cell-site router with silver and black modular connectors
1 1

Cisco

Cisco A901S-4SG-F-D | ASR 901S Rugged Router, 4x 1G SFP + 2 Cu, DC PSU

A901S-4SG-F-D

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ASR 901S Series is a compact, IP65-rated, fanless aggregation services router built for outdoor cell-site and mobile backhaul deployments as part of the Cisco Unified RAN Backhaul solution. It mounts on walls, brackets or lampposts and interoperates with multiple microwave vendors.

This A901S-4SG-F-D variant provides four external 1GbE SFP ports plus a gland interface carrying two internal copper ports, and runs from a DC power supply. Maximum power consumption is under 40 W, and the passive, fanless cooling design supports an ambient operating range of -40 to 65 C. PoE+ on the copper ports is offered on the AC variant only, so this DC unit does not provide it.

The four SFP ports connect to the front panel by LC-LC patch cables, and sealed LC cabling is used externally. The router supports Layer 2, Layer 3 and MPLS deployment models with OAM tools including CFM, Y.1731 FM/PM, Y.1564 compliance and service loopback.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full support for Layer 2, Layer 3 and MPLS deployment models
- Comprehensive OA&M including CFM, Y.1731 FM/PM, Y.1564 compliance and service loopback
- Proven interoperability with multiple microwave vendors
- IP65-compliant compact enclosure for outdoor deployment from -40 to 65 C
- Completely fanless passive cooling design
- Flexible mounting on brackets, walls and lampposts
- Wireless management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Port configuration: 4 external SFP ports plus 1 gland interface for 2 internal Cu (RJ45) ports
- External uplinks: 4 x 1GbE SFP
- Power supply: DC PSU
- Ingress protection: IP65-compliant enclosure
- Operating ambient temperature: -40 to 65 C (-40 to 149 F)
- Cooling: Fanless, passive
- Maximum power consumption: under 40 W without PoE+
- Power entry: IP65-compliant connector for DC and AC power
- SFP connectivity: LC-LC patch cable from SFP module to front panel, IP65-sealed LC cabling externally
- Alarm, management and console ports: Cat 5e cable routed through the 3-wire gland
- Mounting: Brackets, walls, lampposts
- Deployment models: Layer 2, Layer 3, MPLS
- OAM: CFM, Y.1731 FM/PM, Y.1564 compliance, service loopback

FAQs

Q: Does this router support PoE+?
A: No. PoE+ on the copper ports is offered only on the AC variant. This A901S-4SG-F-D is the DC power supply model.

Q: What power input does it use?
A: It uses a DC power supply unit with an IP65-compliant power entry connector. Maximum power consumption is under 40 W.

Q: What does it connect with on the SFP ports?
A: The four external 1GbE ports use SFP modules, connected to the front panel by LC-LC patch cables, with IP65-sealed LC cabling used externally.

Q: How does this SKU differ from other ASR 901S variants?
A: This variant has 4 SFP ports plus 2 copper ports via the gland interface and a DC PSU. Other family members use different copper and SFP port combinations and AC power.

Q: What environment is it designed for?
A: It is an IP65-rated, fanless unit rated for -40 to 65 C ambient, suited to outdoor cell sites and can be mounted on walls, brackets or lampposts.
