Cisco

Cisco CISCO5940-A-K9 | 5940 ESR Router, 4x GbE, Air-Cooled, Adv Enterprise

CISCO5940-A-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 5940 Embedded Services Router is a ruggedised 3U CompactPCI router card from the Cisco 5900 Series Embedded Services Routers. It is built for mobile and embedded networks in harsh environments, including public safety, transportation, defence and energy deployments that need IP routing, encryption and radio-aware routing.

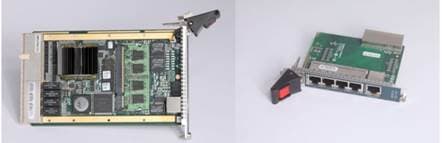

This air-cooled version is supplied as a bundle with the Rear Transition Module (RTM), which gives RJ-45 access to the I/O connectors. It provides four 10/100/1000 routed Gigabit Ethernet ports and one RS-232 console port, with 1 GB DRAM and 256 MB flash. An onboard hardware encryption processor handles IPsec, SSL/TLS, SRTP, 3DES, AES and IKE, offloading crypto work from the router engine. The Advanced Enterprise Cisco IOS Software image (c5940-adventerprisek9-mz) is included with this SKU. The air-cooled card is rated for operation from -18 to 52 C.

The card follows the PICMG 2.0 R3.0 3U CompactPCI standard, so it is intended for integration into standard or custom CPCI enclosures from Cisco partners and systems integrators.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Onboard hardware encryption offloads crypto processing from the router engine
- Cisco IOS routing including RIP v1/v2, OSPF, EIGRP, BGP, PIM, IGMP and IP policy routing
- IPv6 routing, QoS, tunnelling and Zone-Based Firewall for IPv6
- Radio Aware Routing (DLEP, R2CP, RFC 5578) for radio networks
- Mobile IP and Cisco Mobile Networks, with OSPFv3 enhancements for mobile ad hoc networks (MANET)
- Cisco IP Multiplexing improves bandwidth on packet-per-second constrained links such as satellite
- Next-Generation Encryption (Suite-B-GCM-128/256, Suite-B-GMAC-128/256)
- Rugged design for shock, vibration and extreme-temperature operation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 3U CompactPCI (CPCI) router card, approx. 100 x 160 mm
- Standard: PICMG 2.0 R3.0, 3U 4HP CPCI module with matching RTM
- Cooling: Air-cooled
- Gigabit Ethernet: 4 x 10/100/1000 routed ports with autonegotiation
- Console port: 1 x RS-232
- DRAM: 1 GB
- Flash memory: 256 MB
- Hardware encryption: Onboard processor, IPsec, SSL/TLS, SRTP, 3DES, AES, IKE
- VLANs: Up to 32 per router
- Software image: c5940-adventerprisek9-mz (Advanced Enterprise IOS)
- Operating temperature (air-cooled): -18 to 52 C (0 to 125 F)
- Non-operating temperature: -51 to 85 C (-60 to 185 F)
- Component temperature rating: Industrial-grade, -40 to 85 C local ambient
- Altitude (low-pressure operation): Up to 4500 m (15,000 ft)

FAQs

Q: Does this router need a separate software licence?
A: No separate subscription is listed. The Advanced Enterprise Cisco IOS Software image (c5940-adventerprisek9-mz) is included with this SKU. The WAAS Express licence is only part of the separate CISCO5940WSEC-A/K9 bundle.

Q: What is the difference between the air-cooled and conduction-cooled models?
A: This SKU is the air-cooled card, rated for -18 to 52 C operation. The conduction-cooled model is CISCO5940-C/K9.

Q: What enclosure does it fit?
A: The card is a 3U, 4HP CompactPCI module built to PICMG 2.0 R3.0, so it suits standard or custom CPCI enclosures. It is powered from the CompactPCI backplane or enclosure.

Q: How do I connect to the Ethernet and console ports?
A: The Rear Transition Module provides the four Gigabit Ethernet ports and the console port via RJ-45 connectors.

Q: Where do I get the IOS image?
A: The Cisco IOS image is downloaded from the Cisco Software Center, which requires a Cisco.com account.
