• Dell PowerEdge server with Cisco 5940RA-K9-100 ESR card
1 1

Cisco

Cisco CISCO5940RA-K9-100 | 5940 ESR 4-Port Gigabit Router Card, Air-Cooled, Adv Enterprise

CISCO5940RA-K9-100

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

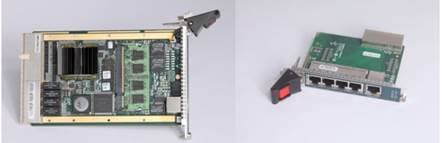

The Cisco 5940 Embedded Services Router is a ruggedised 3U CompactPCI router card built for mobile and embedded networks. It suits public safety, transportation, defence and energy deployments, including first-responder and armoured vehicles, passenger and freight rail, outdoor hardened cabinets and border security systems.

This air-cooled version provides four 10/100/1000 routed Gigabit Ethernet ports and one RS-232 console port, with 1 GB of DRAM and 256 MB of flash memory. An onboard hardware encryption processor handles IPsec, SSL/TLS, SRTP, 3DES, AES and IKE, offloading encryption work from the router engine. The Advanced Enterprise Cisco IOS Software image (c5940-adventerprisek9-mz) is the image for this SKU, and the air-cooled card operates from -18 to 52 C.

The card follows the 3U, 4HP CompactPCI (PICMG 2.0 R3.0) form factor at roughly 100 x 160 mm, and mounts in standard CPCI enclosures as well as custom enclosures from systems integrators. The optional CISCO5940-RTM rear transition module provides standard RJ-45 access to the I/O connectors.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Onboard hardware encryption offloads encryption processing from the router engine
- Cisco Mobile Ready Net support, including Mobile IP for roaming across wireless networks
- Radio Aware Routing (DLEP, R2CP, RFC 5578) and OSPFv3 enhancements for mobile ad hoc networks
- Cisco IP Multiplexing improves bandwidth efficiency over pps-constrained links such as satellite
- Cisco IOS Zone-Based Firewall, IPS, Content Filtering and Flexible Packet Matching
- Secure connectivity with GET VPN, DMVPN and Enhanced Easy VPN
- IPv6 routing, CEF switching, QoS and tunnelling support
- Cisco Unified Communications Manager Express support for up to 150 phones

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 3U, 4HP CompactPCI (CPCI) module per PICMG 2.0 R3.0
- Card size: approx. 100 x 160 mm
- Cooling: Air-cooled
- Gigabit Ethernet: 4 x 10/100/1000 routed ports with autonegotiation
- Console port: 1 x RS-232
- DRAM: 1 GB
- Flash memory: 256 MB
- Hardware encryption: onboard processor supporting IPsec, SSL/TLS, SRTP, 3DES, AES, IKE
- Software image: c5940-adventerprisek9-mz (Advanced Enterprise Cisco IOS Software)
- VLANs: Up to 32 per router
- Operating temperature (air-cooled): -18 to 52 C (0 to 125 F)
- Industrial-grade component temperature: -40 to 85 C (-40 to 185 F) local ambient
- Nonoperating temperature: -51 to 85 C (-60 to 185 F)
- Altitude (low-pressure operation): Up to 4500 m (15,000 ft)
- Routing protocols: RIP v1/v2, OSPF, EIGRP-IP, BGP, IP Policy Routing, IP Multicast PIM v1/v2, IGMP v1/v2
- Encapsulations: PPP, PPPoE client/server, 802.1q VLAN trunking, GRE
- Next-Generation Encryption: Suite-B-GCM-128/256, Suite-B-GMAC-128/256 (RFC 4869)
- Unified communications: Cisco Unified Communications Manager Express, up to 150 phones
- Management: SNMP v2/v3, Telnet, console, RADIUS, TACACS+, Syslog, NTP, TFTP, DHCP client/server/relay, HSRP, SSH v2

FAQs

Q: Which software image does this SKU use?
A: It uses the Advanced Enterprise Cisco IOS Software image (c5940-adventerprisek9-mz). The WAAS Express licence is not part of this SKU and is only found in the separate WSEC bundle SKUs.

Q: How is the card powered?
A: Power is supplied by the host CompactPCI enclosure or backplane. No separate power draw figure is published, as the card is designed as a low-power module.

Q: What enclosures does it fit?
A: It fits industry-standard 3U CompactPCI (PICMG 2.0 R3.0) enclosures, as well as custom enclosures from Cisco partners and systems integrators.

Q: How do I get RJ-45 access to the I/O ports?
A: The optional CISCO5940-RTM rear transition module (3U, 4HP CPCI RTM) provides standard RJ-45 access to the I/O connectors.

Q: How does this SKU differ from other 5940 variants?
A: This is the air-cooled card with the Advanced Enterprise IOS image, supplied as a 100-499 unit quantity bundle without the rear transition module.
